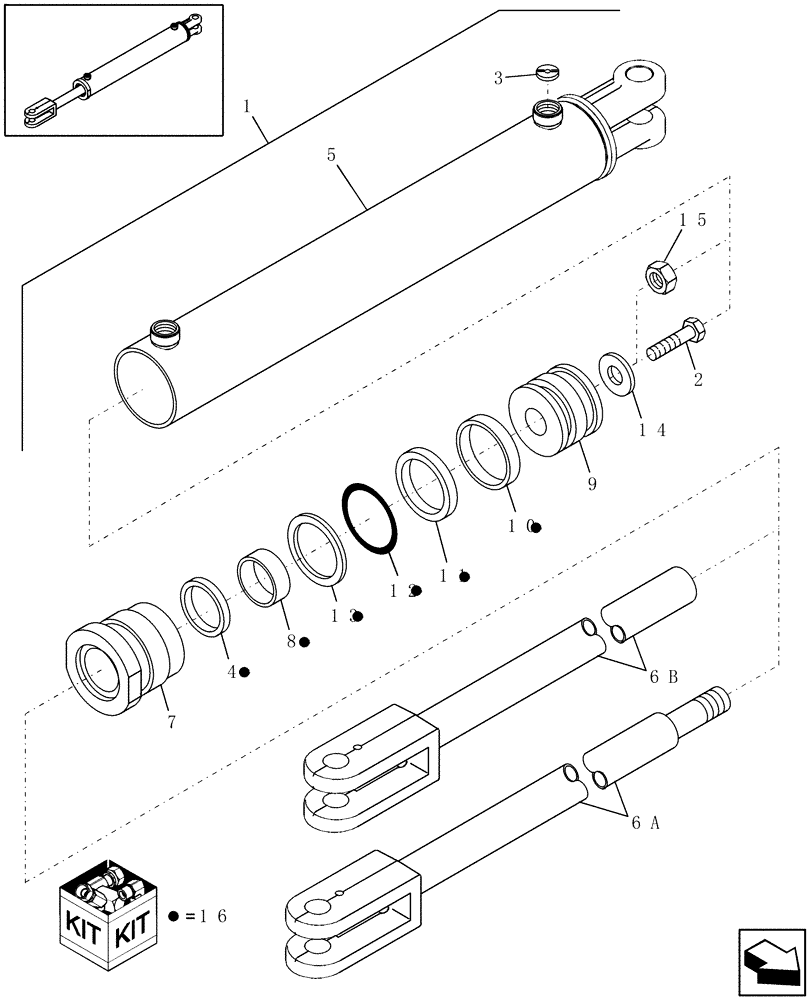

Запчасти Case IH DCX161 (07.04) - HYDRAULIC CYLINDER, SWING (07) - HYDRAULICS

1

86630071

HYDRAULIC CYLINDER

1шт.

Prior to PIN HAJ0005117

1шт.

87515542R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08), Reman for New P/N 86630071

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

1

86643606

HYDRAULIC CYLINDER

1шт.

BTWN PIN HAJ0005117 & HCA0012022

1шт.

87515542R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08), Reman for New P/N 86643606

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

1

87018098

HYDRAULIC CYLINDER

1шт.

Components interchangeable with 86643606.

1шт.

From PIN HCA0012023

1шт.

87515542R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08), Reman for New P/N 87018098

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

2

426-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

use w/ Ref. 6B

1шт.

3

285636

ORIFICE

1шт.

4

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

BARREL

1шт.

6a

86615920

ROD

w/male thread end

1шт.

Prior to PIN HAJ0005117

1шт.

87515542R

REMAN-HYD CYLINDER

DCX161 (9/01-4/08), Reman for New P/N 86615920

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

6b

86643607

ROD

w/ female thread end

1шт.

From PIN HAJ0005117

1шт.

7

86603706

CYLINDER HEAD

1шт.

8

592955

FUSE

1шт.

9

86603723

PISTON

decelerator

1шт.

10

771714

RING

wear, 2.876" ID x .50" thk

1шт.

11

86595542

SEAL

1шт.

12

238-5335

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

1шт.

13

86609324

SEALING WASHER

SEAL WASHER 2.643" ID x .064" thk

1шт.

14

9803749

WASHER

hardened, use w/ Ref. 6B

1шт.

15

514101

LOCK NUT,Hex, 1" - 14

1"-14, use w/ Ref. 6A

1шт.

16

86603708

SEAL KIT

1шт.
