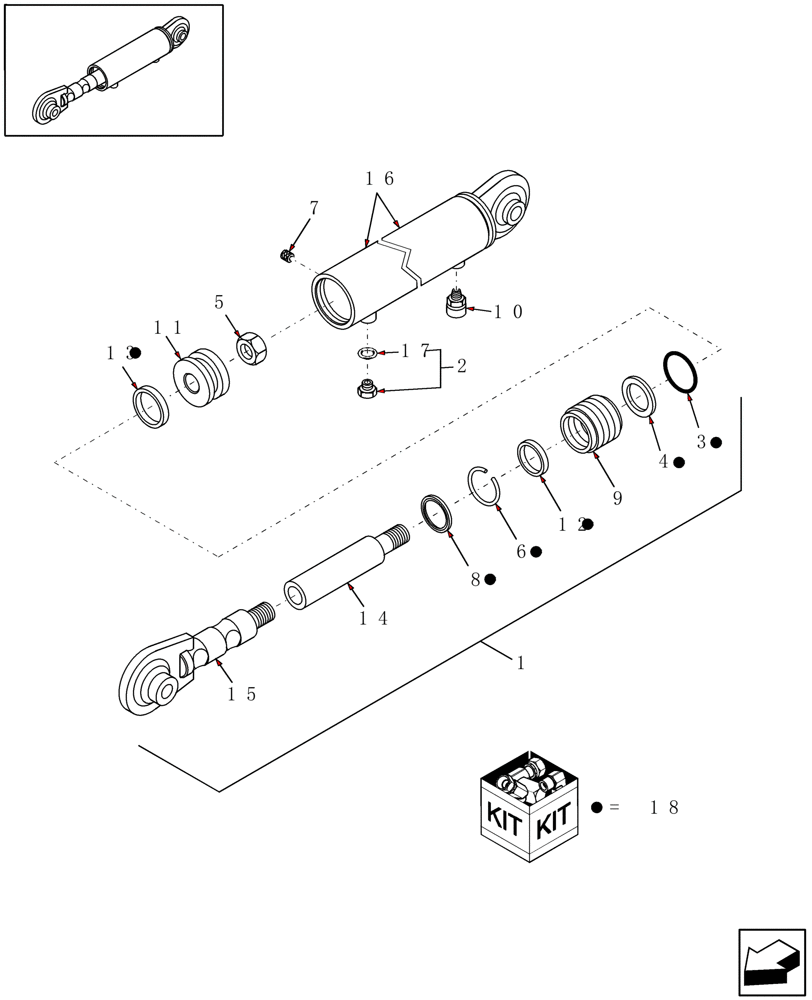

Запчасти Case IH DCX161 (07.03) - HYDRAULIC CYLINDER, TILT, PRIOR TO PIN HCA0012023 (07) - HYDRAULICS

1

86627758

HYDRAULIC CYLINDER

Tilt

1шт.

87394809R

REMAN-HYD CYLINDER

DCX161 PRIOR TO PIN HCA0012023 (9/01-4/08), REMAN FOR NEW P/N 86627758

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

2

76349

PLUG,9/16" - 18 ORB

1шт.

3

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

4

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

512016

SNAP RING

Int, 2.125"

1шт.

7

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

8

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

9

785811

CYLINDER HEAD

1шт.

10

854071

BREATHER

1шт.

11

9849917

PISTON

1шт.

12

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

13

86553483

SEAL

3 Piece, Piston

1шт.

14

86603962

ROD

1шт.

15

86603963

BALL JOINT

1шт.

16

NSS

NOT SOLD SEPARAT

BARREL

1шт.

18

86603982

SEAL KIT

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
