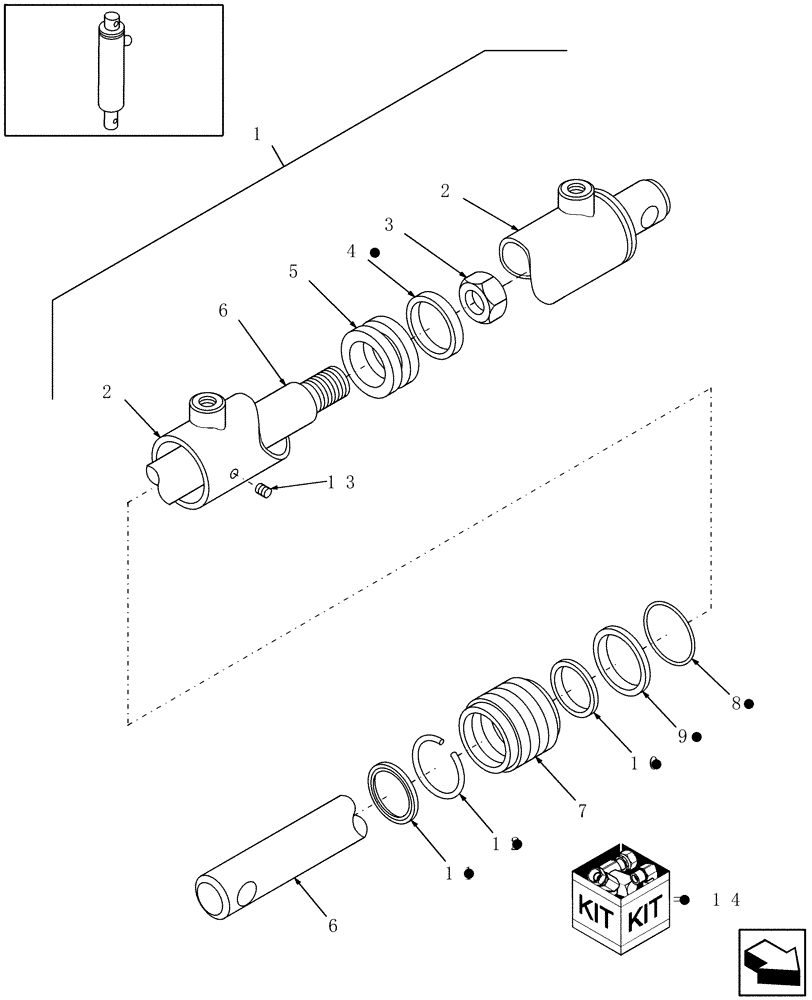

Запчасти Case IH DCX161 (07.01[1]) - HYDRAULIC CYLINDER, MASTER, PRIOR TO PIN HCA0012023 (07) - HYDRAULICS

1

86627757

HYDRAULIC CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

BARREL

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86557272

SEAL

1шт.

5

787319

PISTON

1шт.

6

86514217

ROD

1шт.

7

9622051

CYLINDER HEAD

1шт.

8

238-5330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

1шт.

9

235785

BACK-UP RING,54.05mm ID x 63.6mm OD x 1.63mm Thk

Back-up, 2.138" ID x .064" thk

1шт.

10

592955

FUSE

1шт.

11

511979

SEAL,38.1mm ID x 51mm OD x 6.35mm Thk

1шт.

12

517561

SNAP RING

1шт.

13

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

14

792803

SEAL KIT

1шт.
