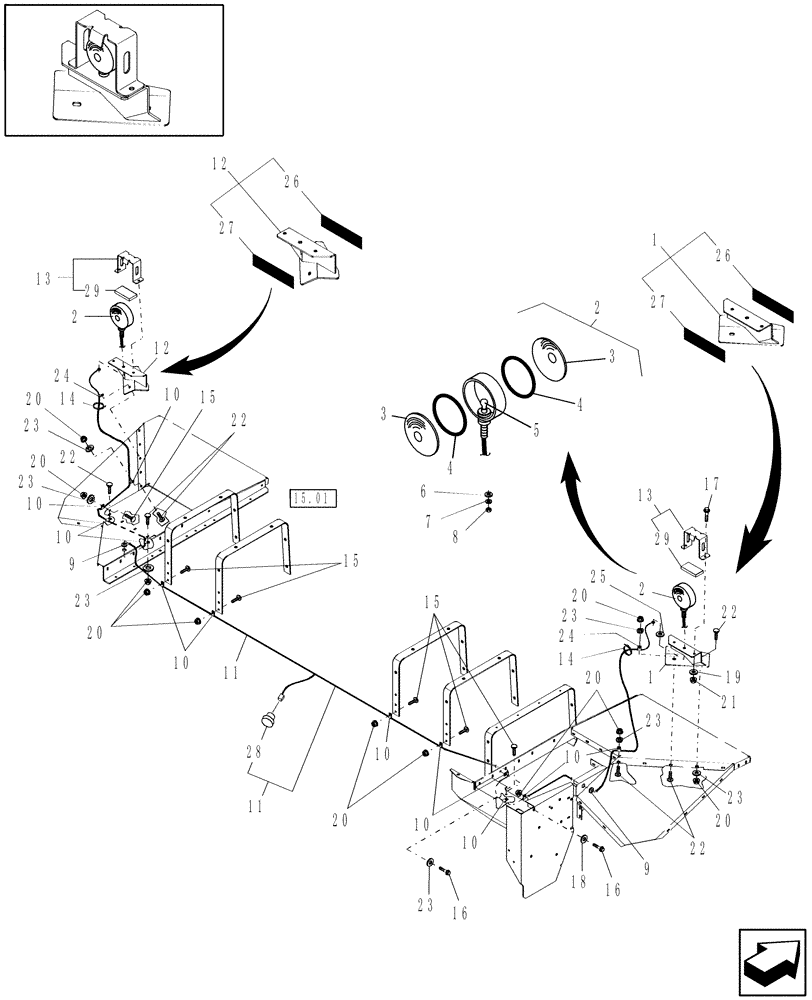

Запчасти Case IH DCX161 (06.02) - LIGHTS, HEADER (06) - ELECTRICAL

1

86631948

SUPPORT

RH

1шт.

2

86621618

WARNING LIGHT

Amber, Includes: Ref. 2 - 7

2шт.

3

86622240

LENS

Amber

4шт.

4

86627435

O-RING,3.484" ID x 0.139" Width

2шт.

5

A41264

BULB,#1156, 12V

2шт.

6

495-21056

WASHER,1/2"

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

425-118

NUT,1/2"-20, G5

2шт.

9

174266

GROMMET

2шт.

10

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4" x 3/8"

13шт.

11

86531563

WIRE HARNESS

1шт.

12

86631949

SUPPORT

LH

1шт.

13

86623408

SUPPORT ASSY.

2шт.

14

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

16

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

17

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

4шт.

18

495-21038

WASHER,5/16"

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

425-285

FLANGE NUT,Flg, 5/16"-18, G5

16шт.

21

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

22

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

6шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

24

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

25

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

M12.7

2шт.

26

86547782

REFLECTOR,YELLOW

yellow retroreflective

1шт.

27

86547781

REFLECTOR,RED

red retroreflective

1шт.

28

9861408

CAP

#3, receptacle

1шт.

29

86598388

PAD

2шт.
