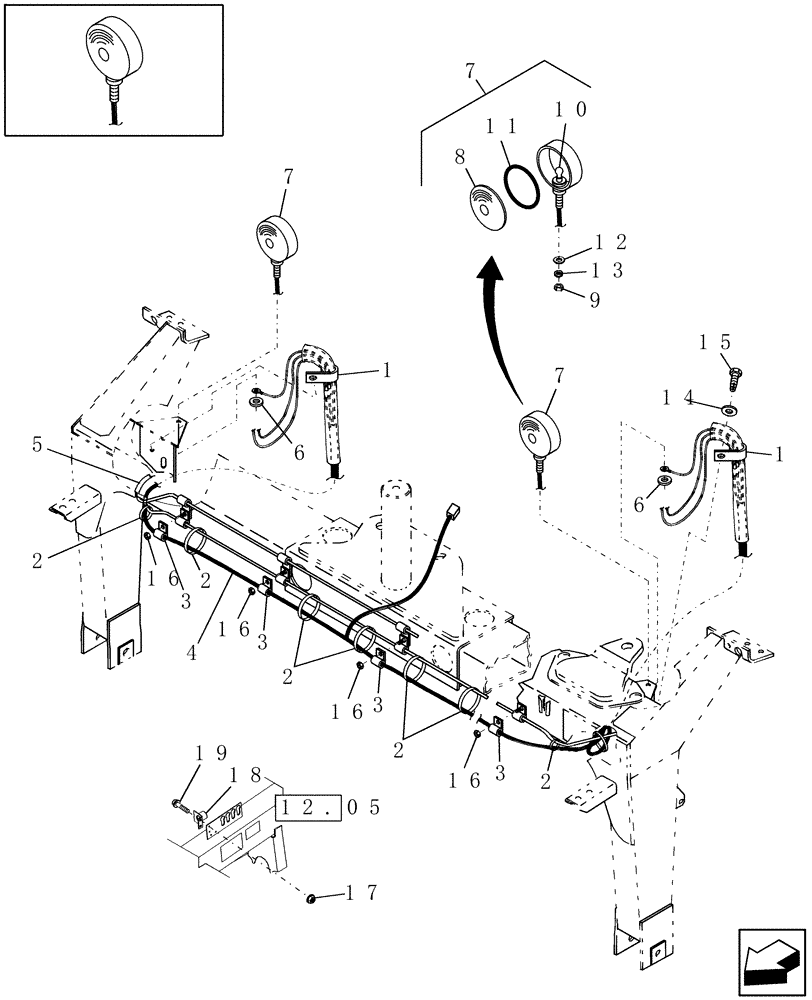

Запчасти Case IH DCX161 (06.01) - LIGHTS, TRAILFRAME (06) - ELECTRICAL

1

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

10шт.

3

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4" x 3/8" Bolt

4шт.

4

86560343

WIRE HARNESS

lights

1шт.

5

NSS

NOT SOLD SEPARAT

EDGING

1шт.

Procure Locally

1шт.

6

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

M12.7

2шт.

7

86621619

WARNING LIGHT

red, Includes: Ref. 8 - 13

2шт.

8

86622241

LENS

Red

2шт.

9

425-118

NUT,1/2"-20, G5

1шт.

10

T34857

BULB,C6, #1157, 12.8V

1шт.

11

86627435

O-RING,3.484" ID x 0.139" Width

2шт.

12

495-21056

WASHER,1/2"

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

14

495-21031

WASHER,1/4"

2шт.

15

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

2шт.

16

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

17

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

18

9611467

HOLDER

plug

1шт.

19

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.
