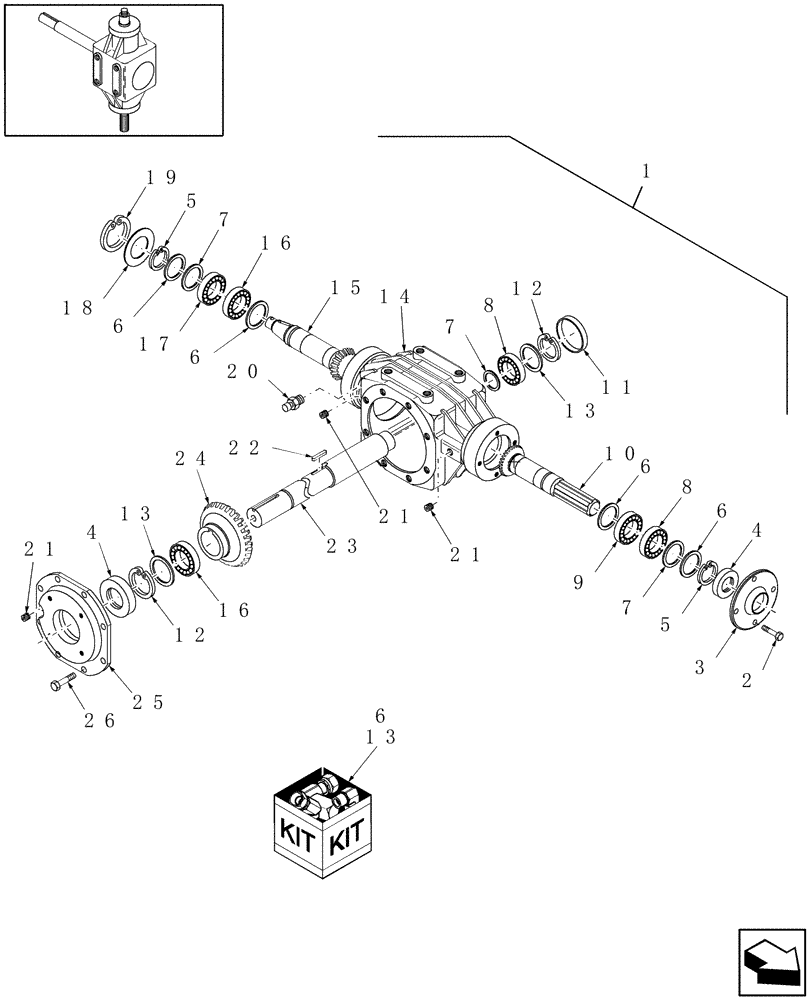

Запчасти Case IH DCX161 (03.03) - GEARBOX, BEVEL (03) - MAIN GEARBOX

1

86518543

GEARBOX

bevel

1шт.

1

86518543R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

1

86518543C

CORE-GEARBOX

Return Number

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

3

86539152

COVER

1шт.

4

86539153

SEAL,40mm ID x 80mm OD x 10mm Thk

2шт.

5

800-1140

SNAP RING,M40, Ext

2шт.

6

86539215

KIT

shim

4шт.

7

86539145

SHIM

3шт.

8

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

2шт.

9

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

M40

1шт.

10

86539151

SHAFT

1шт.

11

86539148

CAP

1шт.

12

800-2180

SNAP RING,M80, Int

2шт.

13

86539214

SHIM

shim

2шт.

14

86539146

HOUSING

1шт.

15

86539147

SHAFT

1шт.

16

1964252C1

TAPERED BEARING,40mm ID x 75mm OD x 26mm W

2шт.

17

210049

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

18

86539143

COVER

1шт.

19

86539144

SNAP RING

1шт.

20

86539157

BREATHER,3/8" Gas

1шт.

21

86557412

PLUG,3/8" - 19 NPT

3шт.

22

86539158

KEY

1шт.

23

86539155

SHAFT

L = 524 mm

1шт.

24

86539154

BEVEL GEAR

1шт.

25

86539156

COVER

1шт.

26

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.
