(01.06) - SECONDARY PTO

Запчасти Case IH DCX161 (01.06) - SECONDARY PTO (01) - PTO DRIVE SHAFT

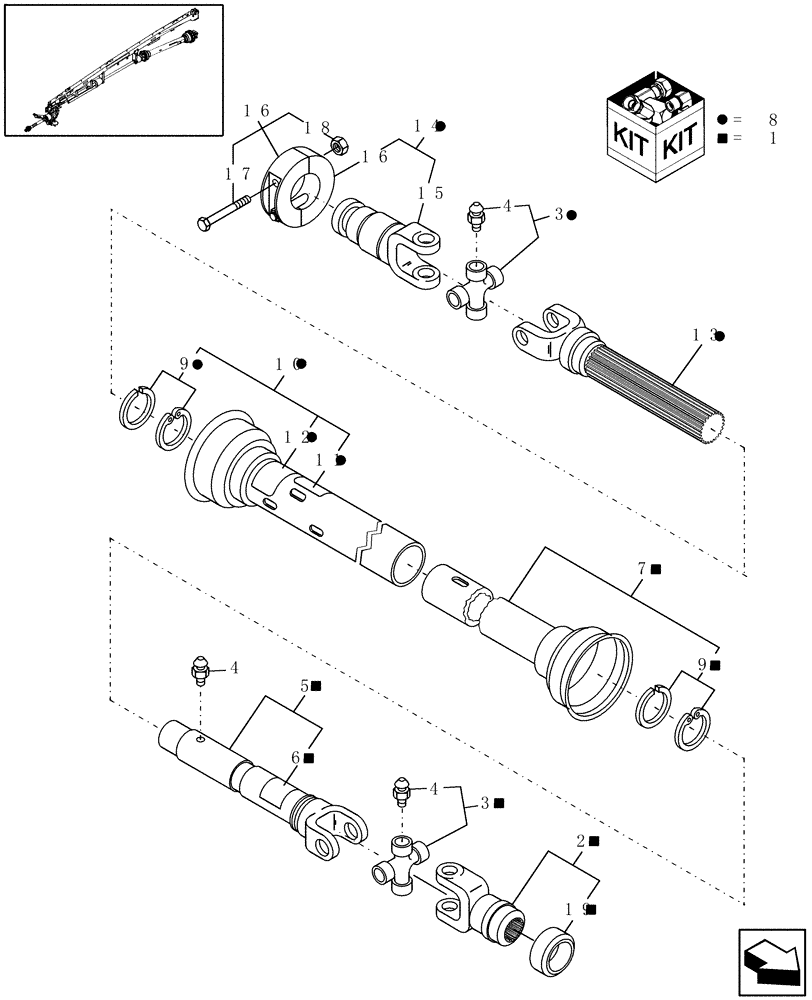

Схема запчастей Case IH DCX161 - (01.06) - SECONDARY PTO (01) - PTO DRIVE SHAFT
1
12
4
1
4
6
15
9
14
11
19
3
10
8
8
2
1
16
1
5
13
16
17
9
8
4
8
1
8
8
8
1
3
18
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86598602

PTO

front half

1шт.

2

86598606

YOKE

auto-lock

1шт.

3

86520896

BEARING ASSY

Includes: Ref. 4

2шт.

4

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

5

86539640

YOKE,67.56" L

& tube

1шт.

6

849472

DANGER DECAL

English

1шт.

6

849483

DANGER DECAL

French

1шт.

7

86536187

GUARD

inner

1шт.

8

86598603

PTO

rear half

1шт.

9

86505713

NYLON BEARING

(1) nylon bearing & (1) retaining ring

2шт.

10

86536188

GUARD

outer

1шт.

11

86593134

DECAL

lubrication, English

1шт.

11

86593136

DECAL

lubrication, French

1шт.

12

849471

DANGER DECAL

English

1шт.

12

849482

DANGER DECAL

French

1шт.

12

9801260

DANGER DECAL

DANGER, Spanish

1шт.

13

86539639

YOKE

& shaft

1шт.

14

86598604

YOKE

clamp &

1шт.

15

86601819

YOKE

& hub

1шт.

16

86598607

HUB

1шт.

17

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

18

232-4148

NUT,1/2"-13, GC

2шт.

19

86534533

REPAIR KIT

auto-lock

1шт.

Includes: (4) Balls, (2) Pawls, (1) Collar, (1) Spring & (1) Retaining Ring

1шт.
