(01.05) - CLUTCH, INTERMEDIATE PTO

Запчасти Case IH DCX161 (01.05) - CLUTCH, INTERMEDIATE PTO (01) - PTO DRIVE SHAFT

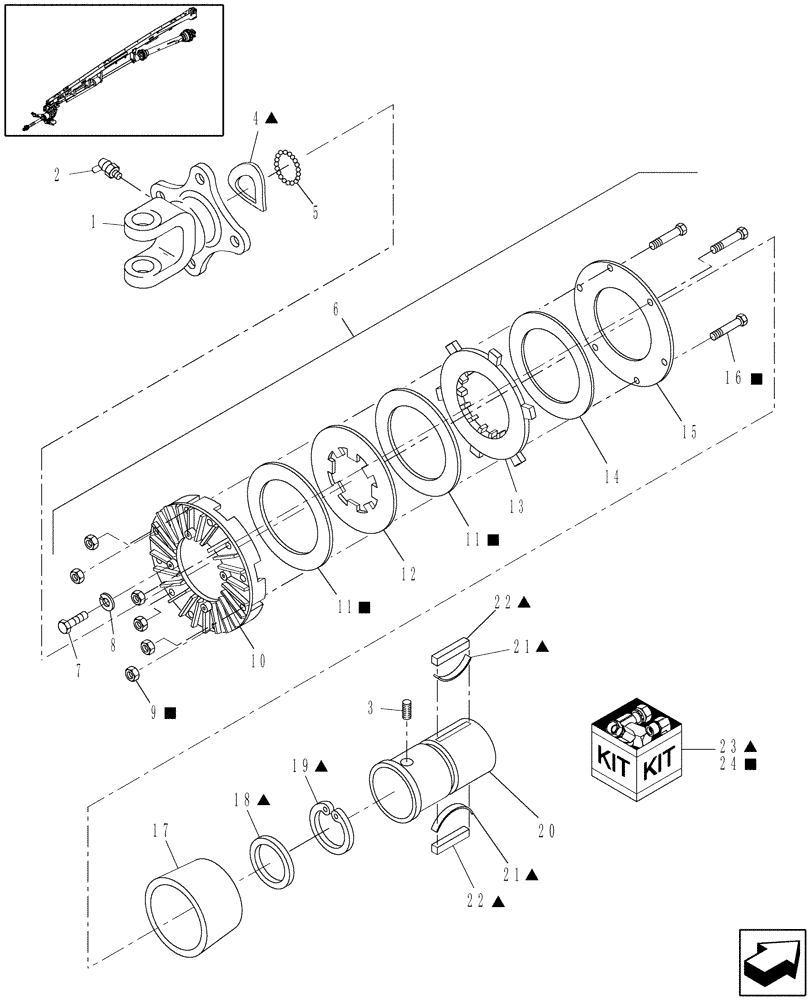

Схема запчастей Case IH DCX161 - (01.05) - CLUTCH, INTERMEDIATE PTO (01) - PTO DRIVE SHAFT
5
11
12
14
21
10
17
4
2
22
16
20
13
7
3
23
9
11
22
24
1
21
18
6
15
19
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86602308

YOKE

Includes: Ref. 2

1шт.

2

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

3

86602307

SET SCREW,5/16" x 18mm

HS, self-locking, cup pt, G8, 5/16"-18

1шт.

4

NSS

NOT SOLD SEPARAT

wave SPRING

1шт.

5

86585468

BALL

1/4"

31шт.

6

86601367

CLUTCH, PRESSURE PLA,177.8mm OD

friction pack, Includes: Ref. 7 - 16

1шт.

7

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

6шт.

10

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

11

NSS

NOT SOLD SEPARAT

FRICTION

2шт.

12

86601371

CLUTCH PLATE

separator

1шт.

13

NSS

NOT SOLD SEPARAT

pressure PLATE

1шт.

14

86551193

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

compression PLATE

1шт.

16

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

6шт.

17

86601370

HUB

outer

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER

1шт.

19

NSS

NOT SOLD SEPARAT

retaining RING

1шт.

20

86601490

HUB

inner

1шт.

21

NSS

NOT SOLD SEPARAT

leaf SPRING

2шт.

22

NSS

NOT SOLD SEPARAT

KEY

2шт.

23

86572966

REPAIR KIT

overruning clutch

1шт.

24

86601404

REPAIR KIT

friction

1шт.
