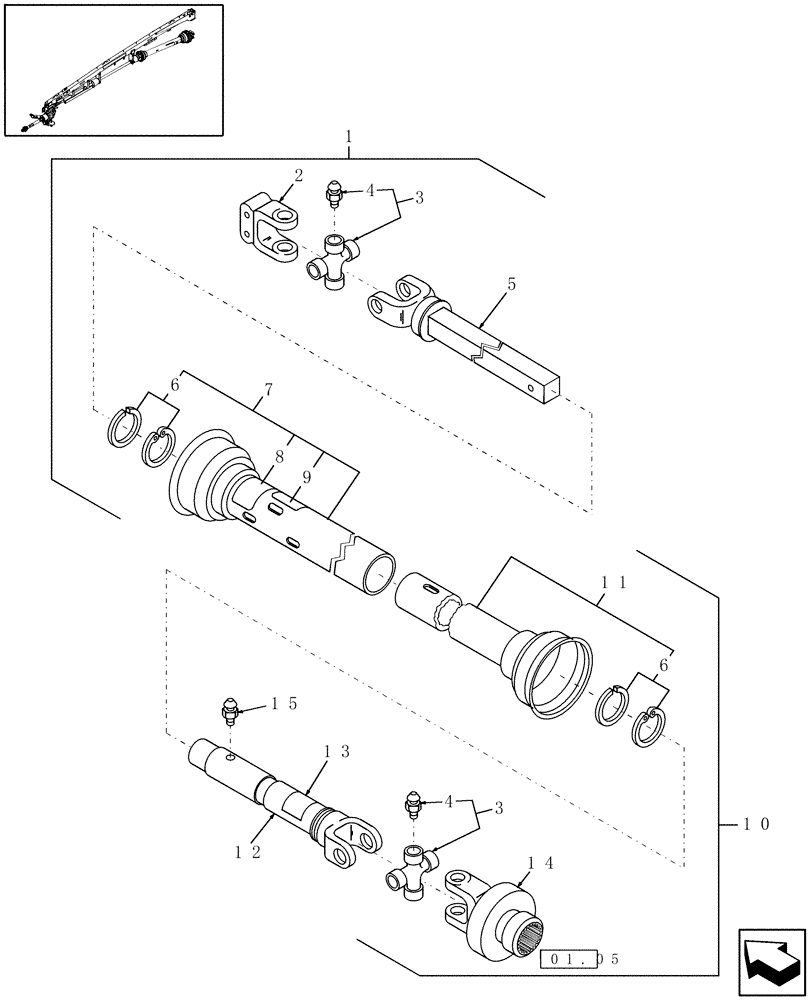

Запчасти Case IH DCX161 (01.04) - PTO, INTERMEDIATE, W/CLUTCH (01) - PTO DRIVE SHAFT

1

86601359

FRONT PTO ASSY

Includes: Ref. 2 - 9

1шт.

2

86601353

YOKE

clamp

1шт.

3

86520896

BEARING ASSY

cross & bearing

2шт.

4

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

5

86601354

YOKE

& shaft

1шт.

6

86505713

NYLON BEARING

nylon bearing, services 7 & 11

2шт.

Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

7

86589004

GUARD

outer

1шт.

8

849471

DANGER DECAL

Rotating Driveline, English

1шт.

8

849482

DANGER DECAL

Rotating Driveline, French

1шт.

8

9801260

DANGER DECAL

DANGER, rotating driveline, Spanish

1шт.

9

86593134

DECAL

lube, English

1шт.

9

86593136

DECAL

lube, French

1шт.

10

86601360

REAR PTO ASSY

Includes Ref 3, 4, 6, 11 - 14

1шт.

11

86589003

GUARD

inner

1шт.

12

86601357

YOKE

tube & slip sleeve

1шт.

13

849472

DANGER DECAL

Shield Missing, English

1шт.

13

849483

DANGER DECAL

Shield Missing, French

1шт.

14

0C

ORDER COMPONENTS

CLUTCH

1шт.

15

86542773

LUBE NIPPLE

short

1шт.
