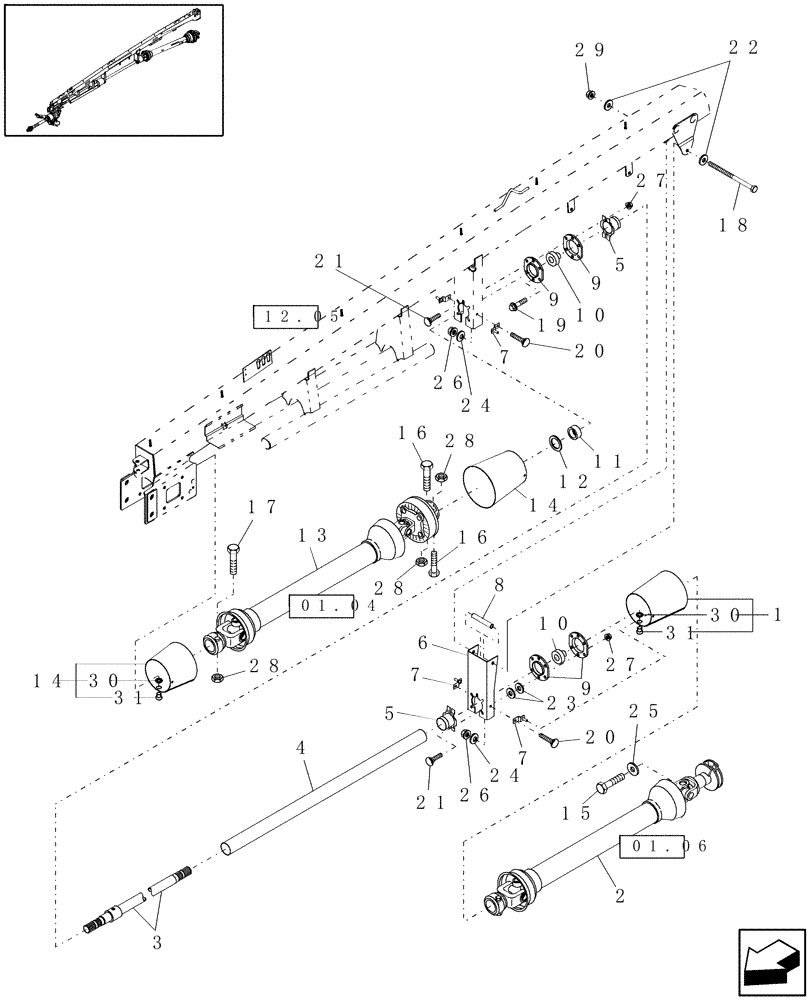

Запчасти Case IH DCX161 (01.03) - TONGUE DRIVELINE (01) - PTO DRIVE SHAFT

1

86532561

SHIELD

Includes: Ref. 30 & 31

2шт.

2

0C

ORDER COMPONENTS

secondary PTO

1шт.

3

86566058

SHAFT

1шт.

4

86574271

SHIELD

1шт.

5

86599724

BRACKET

2шт.

6

86617578

SUPPORT

1шт.

7

86575697

BRACKET

4шт.

8

86541412

SPACER

1шт.

9

86629969

FLANGE

4шт.

10

86552016

BALL BEARING,38.1mm ID x 80mm OD x 21.01mm W

2шт.

11

86558630

SPACER

1шт.

12

58630

WASHER,.0299" Thk

3шт.

13

0C

ORDER COMPONENTS

intermediate PTO w/clutch

1шт.

14

86549399

SHIELD

1шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

16

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

17

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

18

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

19

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

20

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

21

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

11шт.

22

495-21019

WASHER,#8

5/8"

2шт.

23

495-11066

WASHER,5/8", SAE

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

26

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

27

425-288

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

28

232-4148

NUT,1/2"-13, GC

4шт.

29

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

30

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

3/16" brass

7шт.

31

86520136

RIVET,Aluminum, .196” Dia

3/16" x .565"

7шт.
