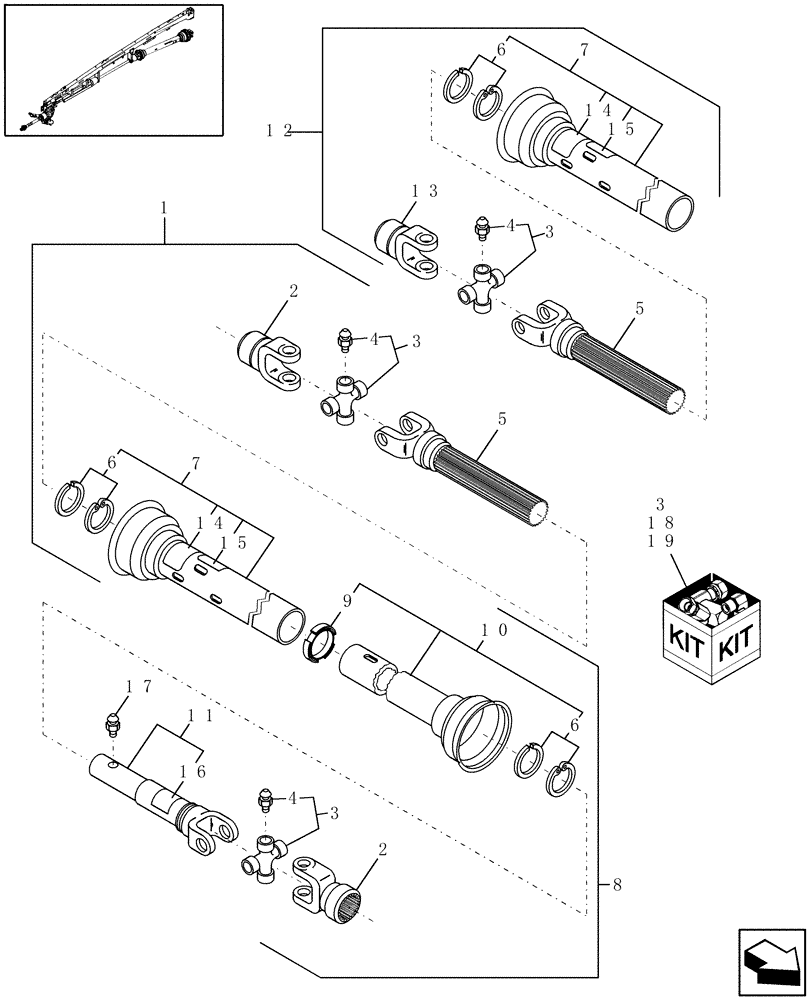

Запчасти Case IH DCX161 (01.02) - 2 POINT SWIVEL PTO (01) - PTO DRIVE SHAFT

1

86598161

PTO

Front half, 1-3/8", Includes: Ref. 2 - 7, 14 & 15

1шт.

Metal Shield

1шт.

1

87345107

FRONT PTO ASSY

1-3/8", Includes: Ref. 2 - 7, 14 & 15

1шт.

Plastic Shield

1шт.

2

86560318

YOKE

Front Lock, 1-3/8"

2шт.

3

86520896

BEARING ASSY

Bearing

2шт.

4

88775

LUBE NIPPLE,1/4"-28

Straight

2шт.

5

86560319

YOKE

& Shaft

1шт.

6

86505713

NYLON BEARING

Nylon, Services Ref. 7 & 10

2шт.

Used W/Metal Shields

1шт.

6

87050379

REPAIR KIT

Nylon, Services Ref. 7 & 10

2шт.

Used W/Plastic Shields

1шт.

7

86598144

OUTER SHIELD

Metal

1шт.

7

87345115

GUARD

Set, Plastic; Includes: Inner & Outer Shields

1шт.

8

86621886

REAR PTO ASSY

Half, 1-3/8", Includes: Ref. 2, 3, 4, 6, 9, 10, 11, 16, & 17

1шт.

Metal Shield

1шт.

8

87345104

REAR PTO ASSY

Half, 1-3/8", Includes: Ref. 2, 3, 4, 6, 10, 11, 16, & 17

1шт.

9

86575864

RING

1шт.

10

86621887

INNER SHIELD

Metal

1шт.

10

87345115

GUARD

Set, Plastic; Includes: Inner & Outer Shields

1шт.

11

86560322

YOKE

Tube & Sleeve, Includes: Ref. 16

1шт.

12

87345105

FRONT PTO ASSY

1-3/4", Includes: Ref. 3 -7, 13, 14, & 15, Option

1шт.

13

87737194

YOKE

Front Lock, 1-3/4", Option

1шт.

14

849471

DANGER DECAL

Rotating Driveline, English

1шт.

14

849482

DANGER DECAL

Rotating Driveline, French

1шт.

14

9801260

DANGER DECAL

DANGER, Spanish

1шт.

15

86593134

DECAL

Lube, English

1шт.

15

86593136

DECAL

Lube, French

1шт.

16

849472

DANGER DECAL

Shield Missing, English

1шт.

16

849483

DANGER DECAL

Shield Missing, French

1шт.

17

86542773

LUBE NIPPLE

Press Fit

1шт.

18

86534533

REPAIR KIT

Auto-Lock, Services Ref. 2, 1-3/8"

1шт.

19

86539714

REPAIR KIT

Auto-Lock, Services Ref. 13, 1-3/4"

1шт.

Includes: (1) Retaining Ring, (1) Spring, (1) Collar, (2) Pawls, (4) Balls & Instructions

1шт.
