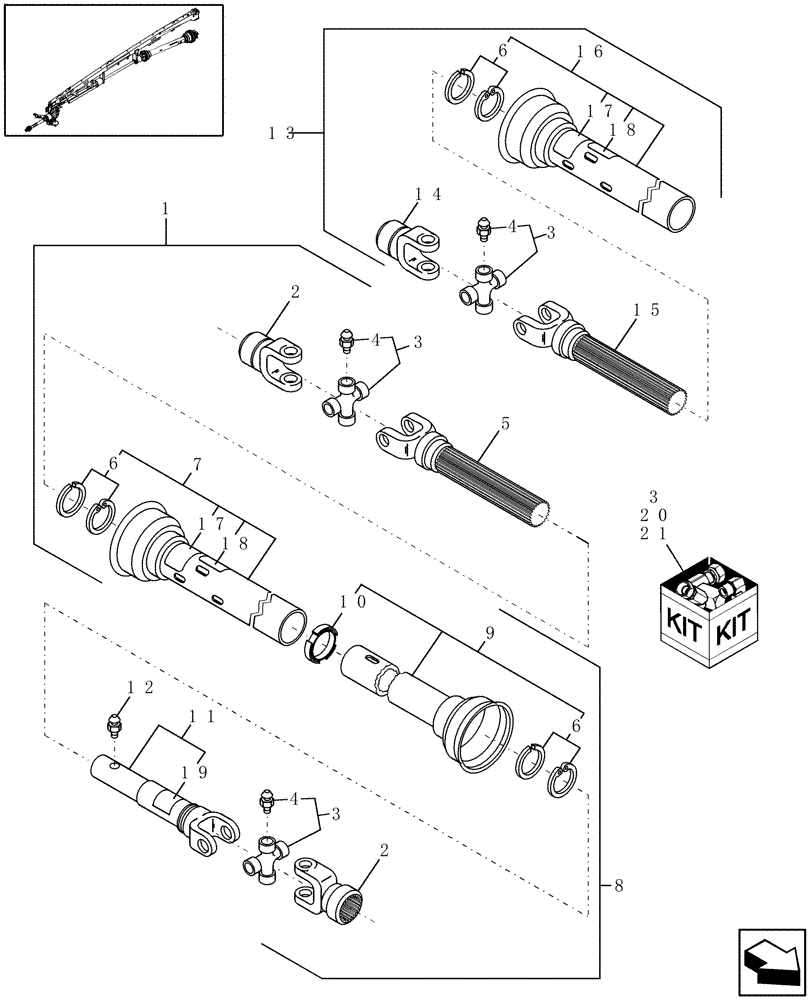

Запчасти Case IH DCX161 (01.01) - PRIMARY PTO (01) - PTO DRIVE SHAFT

1

86604689

PTO

Front Half, 1-3/8", Includes: Ref 2 -7, 17 & 18

1шт.

Metal Shields

1шт.

1

87061005

FRONT PTO ASSY

Half, 1-3/8", Includes: Ref 2 -7, 17 & 18

1шт.

Plastic Shields

1шт.

2

86560318

YOKE

Front Lock, 1-3/8"

2шт.

3

86520896

BEARING ASSY

Bearing

2шт.

4

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

5

86603737

YOKE

& Shaft

1шт.

6

86505713

NYLON BEARING

Nylon , Services Ref. 7, 9 & 16

2шт.

Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

For Use W/Metal Shields

1шт.

6

87039062

REPAIR KIT

Outer

1шт.

For Use W/Plastic Shields

1шт.

6

87050379

REPAIR KIT

Inner

1шт.

For Use W/Plastic Shields

1шт.

7

86593145

GUARD

Outer

1шт.

8

86621885

PTO

Rear Half, Includes: Ref. 2, 3, 4, 6, 9 - 12, & 19

1шт.

Metal Shields

1шт.

8

87061003

REAR PTO ASSY

Half, Includes: Ref. 2, 3, 4, 6, 9, 11, 12, & 19

1шт.

Plastic Shields

1шт.

9

86621891

GUARD

Inner; Metal

1шт.

9

87060071

GUARD ASSY.

Set, Inner & Outer; Plastic

1шт.

10

86575864

RING

1шт.

For Use W/Metal Shields

1шт.

11

86603736

YOKE,2.50" OD x 11.31" L

& Tube

1шт.

12

86542773

LUBE NIPPLE

1шт.

13

86588217

PTO

Front Half, 1-3/4"

1шт.

Metal Shields

1шт.

13

87061004

FRONT PTO ASSY

Half, 1-3/4"

1шт.

Plastic Shields

1шт.

14

87737194

YOKE

Front Lock, 1-3/4"

1шт.

15

86603737

YOKE

& Shaft

1шт.

16

86593145

GUARD

Outer; Metal

1шт.

16

87060071

GUARD ASSY.

Set, Inner & Outer; Plastic

1шт.

17

849471

DANGER DECAL

Rotating Driveline, English

1шт.

17

849482

DANGER DECAL

Rotating Driveline, French

1шт.

18

9801260

DANGER DECAL

DANGER, Spanish

1шт.

18

86593134

DECAL

Lube - English

1шт.

18

86593136

DECAL

Lube - French

1шт.

19

849472

DANGER DECAL

Shield Missing, English

1шт.

19

849483

DANGER DECAL

Shield Missing - French

1шт.

20

86534533

REPAIR KIT

Auto-Lock, Services Ref. 2, 1-3/8"

1шт.

Includes: (1) Coil Spring, (1) Collar, (2) Pawls, (1) Retaining Ring, (4) Balls & Instructions

1шт.

21

86539714

REPAIR KIT

Auto-Lock, Services Ref. 14, 1-3/4"

1шт.

Includes: (1) Retaining Ring, (1) Spring, (1) Collar, (2) Pawls, (4) Balls & Instructions

1шт.
