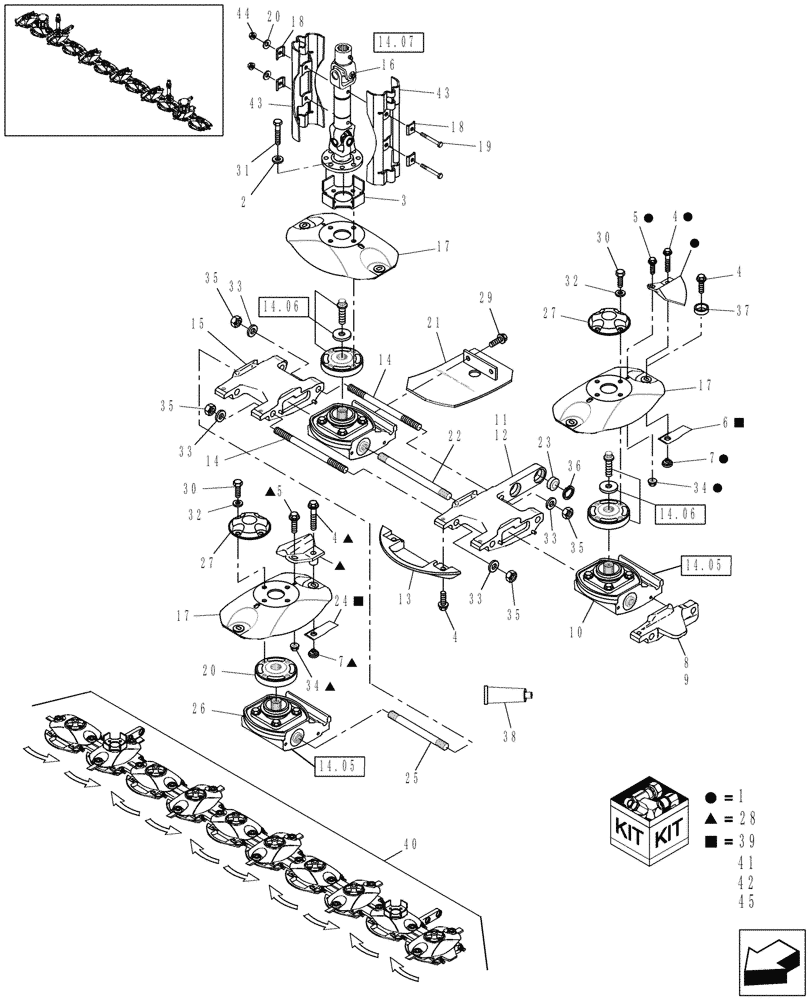

Запчасти Case IH DCX131F (14.04/01) - CUTTERBAR (14) - CROP CUTTING

1

87528245

KIT

Lifter, CW

1шт.

Includes: (2) Lifters & all Mounting Hardware.

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2")

8шт.

3

86629689

DISC

2шт.

4

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

52шт.

5

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

20шт.

5

87040886

BOLT

Flg, Self-Locking, G8, 1/2"-13 x 1-1/4"

20шт.

Replaces 86515925 in kits 87040838 & 87040839.

1шт.

6

9847683

BLADE,Knife CW

CW, , 7° Twist

10шт.

6

86621872

BLADE

CW, 14° Twist

10шт.

Standard Equipment.

1шт.

6

87029587

BLADE

CW, 14° Twist, Over-serrated

1шт.

6

86532078

KNIFE

Straight

1шт.

For use where Standard Knives are prone to bending.

1шт.

7

87725066

NUT

1/2" Special

20шт.

8

86629691

ARM

LH, Includes: 2 of Ref. 15A

1шт.

9

86629690

ARM

End, RH, Includes: 2 of Ref. 15A

1шт.

10

0C

ORDER COMPONENTS

Module, Control, CW

5шт.

11

86540364

SPACER

LH, Includes: 4 of Ref. 15A

1шт.

12

86540362

SPACER

RH, Includes: 4 of Ref. 15A

1шт.

13

87047845

STONEGUARD

10шт.

14

86501934

THREADED ROD

12.2" L

20шт.

15

87044107

SPACER

Includes: 28 of Ref. 15A

7шт.

15a

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4" Heat Treated

40шт.

16

86565923

SHAFT

Drive

2шт.

17

87342192

DISC

10шт.

18

NSS

NOT SOLD SEPARAT

Reinforcement

8шт.

19

280464

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

4шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

21

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

10шт.

21

87047426

SKID/SHOE

10шт.

21

87622885

SHOE

Skid, High Stubble

10шт.

22

86519039

SHAFT

268mm

2шт.

23

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

24

9847684

BLADE,Knife CCW

CCW, , 7° Twist

10шт.

24

86621873

BLADE

CCW, 14° Twist

10шт.

Standard Equipment.

1шт.

24

87029588

BLADE

CCW, 14° Twist, Over-serrated

1шт.

24

86532078

KNIFE

Straight

1шт.

For use where Standard Knives are prone to bending.

1шт.

25

86519042

SHAFT

248mm

7шт.

26

0C

ORDER COMPONENTS

Module, Control, CCW

5шт.

27

87581143

CAP

See Fig. 14.06[1]

8шт.

28

87528249

KIT

Lifter, CCW

10шт.

Includes: (2) Lifters & all Mounting Hardware.

1шт.

29

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

20шт.

30

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

32шт.

31

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

32шт.

33

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

40шт.

34

86544265

FLANGE NUT,Flg, 1/2"-13, G8

20шт.

35

86518194

NUT,3/4"-10, G8

40шт.

36

271429

SNAP RING,1.625", Int, #162

4шт.

37

86510384

CAP

Bolt Protector

20шт.

38

9861804DS

GREASE

14oz. Tube

1шт.

Use on Shaft 86519042 & 86519039.

1шт.

39

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 6 & (10) 14° CCW Blades, Ref 24

1шт.

39

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 6 & (16) 14° CCW Blades, Ref 24

1шт.

39

87037027

SET OF BLADES

Includes (16) Ref. 6, 14° CW OS Blades, & (16) Ref. 24, 14° CCW OS Blades

1шт.

40

87697282

CUTTERBAR

Does Not Include Ref 16 or 43

1шт.

41

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

42

87602273

REPAIR KIT

Shock Retrofit

1шт.

Contains parts to retrofit two discs.

1шт.

43

84260963

KIT

Tall Drum, Inc: 18, 19, 20 & 44

2шт.

Drum Halves and Reinforcements Are NSS

1шт.

43

84469547

KIT

Tabbed Tall Drum, Inc: 18, 19, 20 & 44

2шт.

Replaces 84260963, Drum Halves NSS

1шт.

44

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

45

715289026

DIA KIT, HARVESTER

Hi Stubble, Includes: (8) Hi Skid Shoes Ref. 21 & Instructions

1шт.
