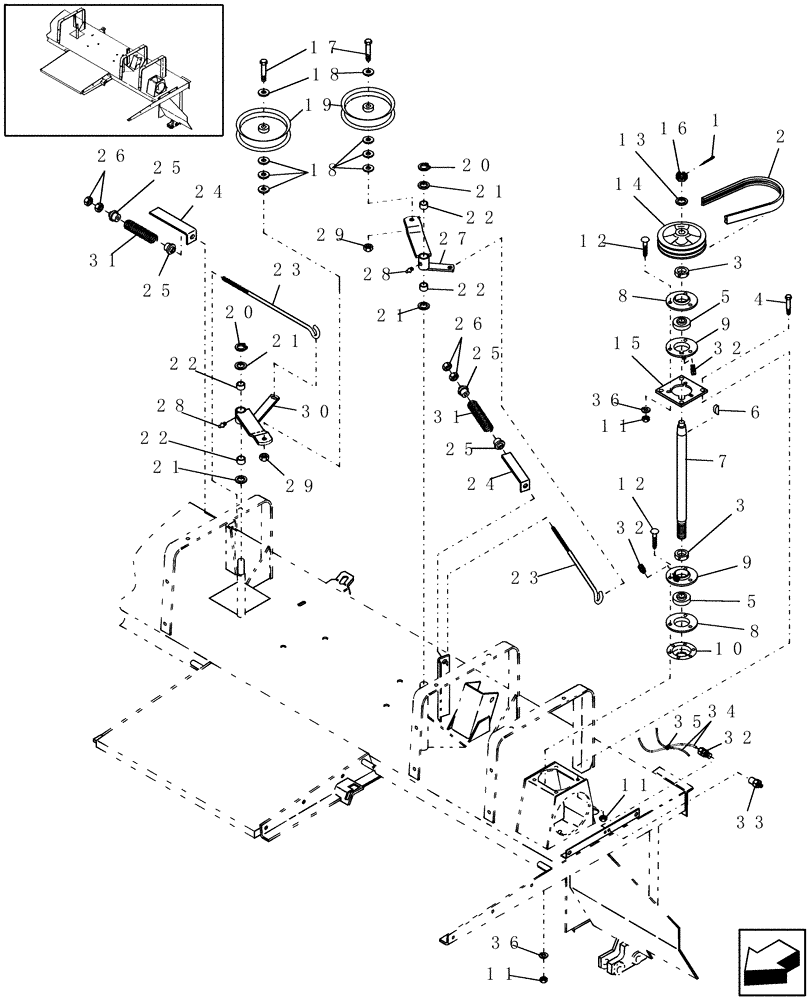

Запчасти Case IH DCX131F (14.01/01) - HEADER DRIVE, LEFT SIDE (14) - CROP CUTTING

1

432-832

COTTER PIN,1/8" x 2"

1шт.

2

86627796

V-BELT,0.66" W x 147.00" L, 2 Ribs

1шт.

3

517645R11

COLLAR

Locking, Includes: Set Screw

2шт.

4

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

4шт.

5

470597R91

BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"

2шт.

6

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

7

86589486

SHAFT

1шт.

8

86537486

FLANGE,Bearing

2шт.

9

86620418

FLANGE,Bearing

2шт.

9

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

Straight

2шт.

10

86633054

SHIELD

Upper Roll

1шт.

11

425-286

FLANGE NUT,Flg, 3/8"-16, G5

10шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

13

672

WASHER

1-1/8"

1шт.

14

86632261

PULLEY

1шт.

15

86632288

PLATE

1шт.

16

49027

SLOTTED NUT

Slotted, 1"-20

1шт.

17

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

18

495-21019

WASHER,#8

6шт.

19

86588003

IDLER,51.6mm W x 228.6mm OD

2шт.

20

100-1698

SNAP RING,#98, Ext

2шт.

21

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

4шт.

22

80027767

BUSHING,25.48mm ID x 28.65mm OD x 22.22mm L

4шт.

23

86535390

EYEBOLT

3/8"-16 x 20-1/4"

2шт.

24

86632286

GUIDE

2шт.

25

86535388

SPACER

4шт.

26

425-106

NUT,3/8"-16, Cl 5

4шт.

27

86632287

ARM

1шт.

28

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

29

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

2шт.

30

86632285

ARM

1шт.

31

621022

SPRING

2шт.

32

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

4шт.

33

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

2шт.

34

9846836

PLASTIC-RUBBER TUBE,3.58mm ID x 1000mm L

Tube, Plastic, .138" x .19" OD

1шт.

35

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.
