Запчасти Case IH DCX131F (12.05) - SWIVEL HITCH TONGUE (12) - MAIN FRAME

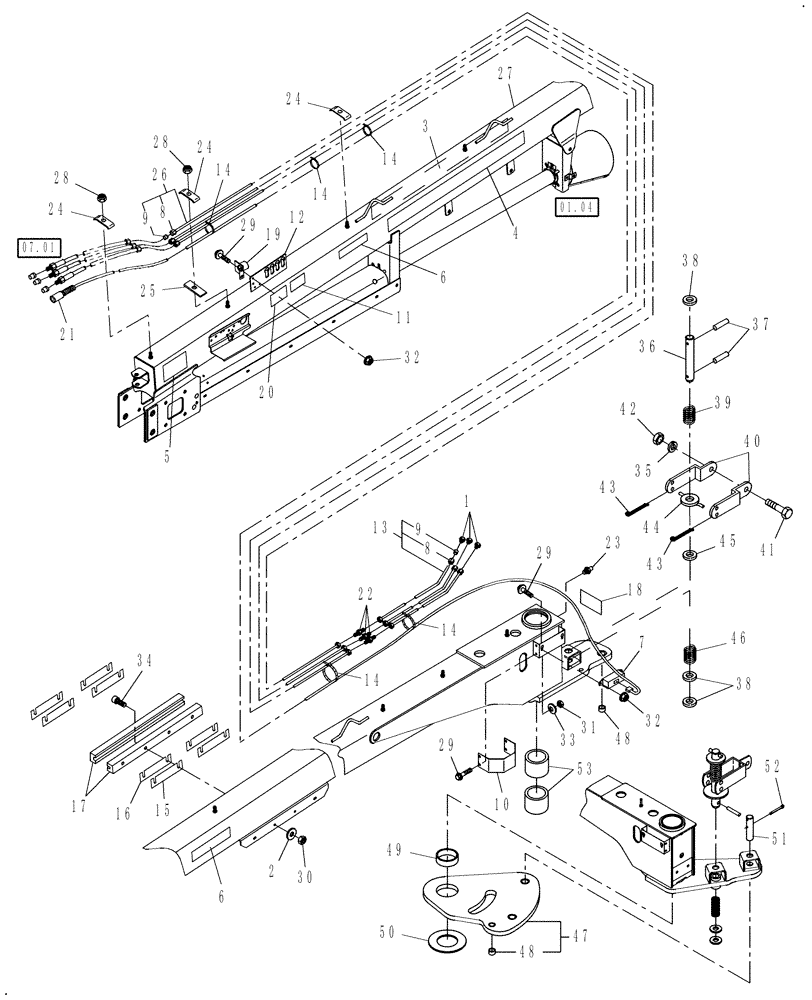

Схема запчастей Case IH DCX131F - (12.05) - SWIVEL HITCH TONGUE (12) - MAIN FRAME
44
29
7
9
42
21
17
34
43
10
9
18
14
30
35
24
50
28
14
43
3
38
28
07.01
8
37
48
32
22
26
41
2
14
32
49
14
29
1
31
5
51
33
12
24
24
27
48
01.04
53
38
19
23
47
8
29
36
45
13
52
15
40
11
25
46
6
16
20
14
4
39
6

Артикул

Название

Примечание

Количество

1

218-775

PLUG,3/4"-16, 37 Degree

3шт.

2

495-21038

WASHER,5/16"

8шт.

3

86626404

DECAL

DCX131, RH

1шт.

4

86626403

DECAL

DCX131, LH

1шт.

5

86555718

DECAL

Attention, Adjust Check Chains...

1шт.

Use On Swivel Tongue Models, Two Point Hitch

1шт.

5

86604332

DECAL

ATTENTION DRAWBAR HITCH

1шт.

Use On Swivel Tongue Models, Drawbar Hitch

1шт.

6

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

4шт.

7

86561136

MODULE

Lighting Control

1шт.

8

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

12шт.

9

218-364

SLEEVE,37 Degree, 1/2" Tube

12шт.

10

86567415

COVER

1шт.

11

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

11

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

1шт.

11

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

1шт.

12

86564683

SUPPORT

(Requires Welding)

1шт.

13

86549017

HYD TUBE,12.70 mm OD

3шт.

14

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

15

58639

SHIM

4шт.

16

64612

SHIM,0.012" Thk

4шт.

17

87676553

CHANNEL

2шт.

18

770033

WARNING DECAL

English, Engage Saftey Lock...

1шт.

18

782380

WARNING DECAL

French, Engage Saftey Lock...

1шт.

19

9611467

HOLDER

1шт.

20

86622073

WARNING DECAL

English

1шт.

20

86622074

WARNING DECAL

WARNING, French

1шт.

20

86622075

WARNING DECAL

CAUTION- Spanish

1шт.

21

86560194

WIRE HARNESS

1шт.

22

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

24

86571694

CLAMP

9шт.

25

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

8шт.

26

86538795

HYD TUBE,12.70 mm OD x 2805 mm L

3шт.

27

86629923

TOW BAR

Swivel, Includes: Decals, Ref's 5, 6, 11, 18 & 20

1шт.

Prior to PIN HCA0008001

1шт.

27

86979443

TONGUE

Swivel, Includes: Decals, Ref's 5, 6, 11, 18 & 20

1шт.

Transporter-Ready Part

1шт.

Btwn PIN HCA0008001 &HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

27

87055792

TONGUE

Swivel; Includes: Decals, Ref 5, 6, 11, 18 & 20

1шт.

From PIN HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

28

231-5346

FLANGE NUT,Flg, 3/8"-16

9шт.

29

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

30

280736

NUT,5/16"-18, GC

8шт.

31

425-104

NUT,1/4"-20, Cl 5

4шт.

32

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

34

87032817

BOLT

Cap, HSH, 5/16" x 1"

8шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

36

86627559

PIN

W/ 1/4" Holes; L = 9.4"

1шт.

36

86629641

PIN,31.75mm OD x 260mm L

W/ 1/4" Holes; L = 10.4"

1шт.

Transporter-Ready Part

1шт.

37

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

2шт.

38

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

1шт.

39

35324

SPRING

1шт.

40

690605

HANDLE

2шт.

41

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

42

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

43

432-88

COTTER PIN,1/8" x 1/2"

2шт.

44

86618985

ROD

1шт.

45

696508

WASHER,33.3mm ID x 88.9mm OD x 3.43mm Thk

1шт.

46

48176

SPRING

1шт.

47

86631782

PLATE ASSY.

1шт.

Btwn PIN HCA0008001 &HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

48

787219

SLEEVE

1шт.

49

86568155

BUSHING

1шт.

Btwn PIN HCA0008001 &HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

50

86568174

WASHER

1шт.

Btwn PIN HCA0008001 &HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

51

86605649

PIN

1шт.

Btwn PIN HCA0008001 &HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

52

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

2шт.

Btwn PIN HCA0008001 &HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

53

86515632

DRIVE BUSHING,102.13mm ID x 114.25mm OD x 76.2mm L

2шт.

Выбрано товаров: 74
