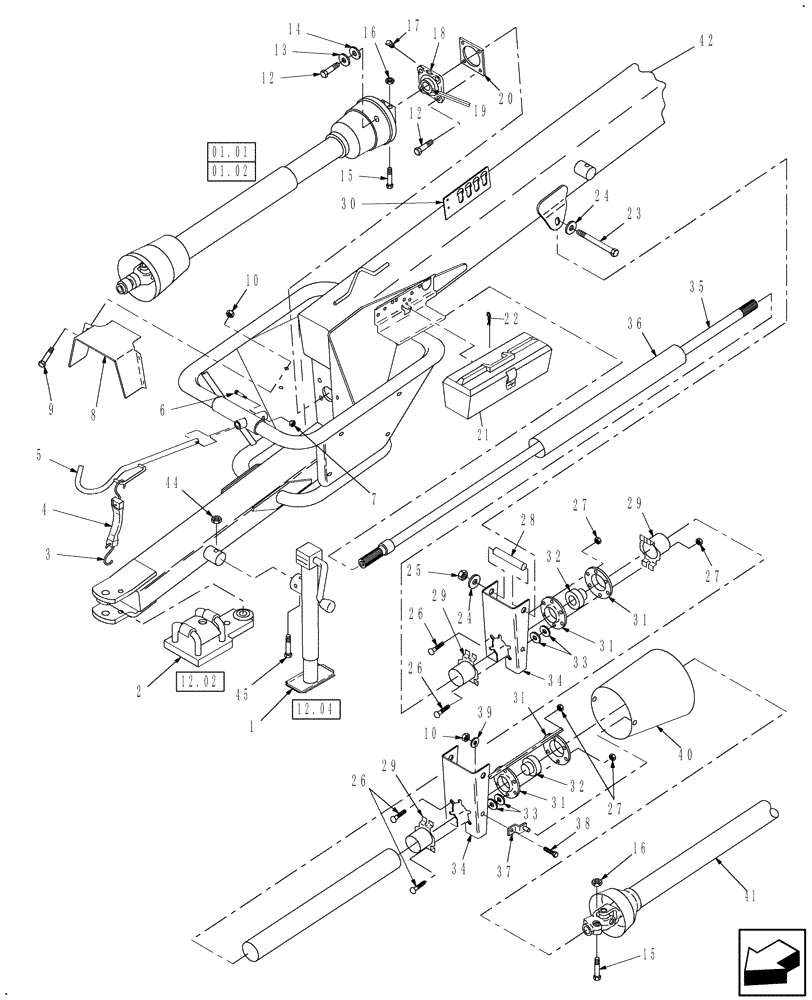

Запчасти Case IH DCX131F (12.03[1]) - STANDARD TONGUE, FRONT (12) - MAIN FRAME

1

86617866

JACK

For Component Breakdown, Refer To Fig. 12.03

1шт.

2

715298001

EXTENSION

Hitch Extension, Refer to Fig. 12.01

1шт.

3

115680

HOOK

2шт.

4

273672

FASTENER

1шт.

5

86627267

SUPPORT

1шт.

6

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

7

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

8

86629979

COVER

1шт.

9

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

10

425-286

FLANGE NUT,Flg, 3/8"-16, G5

6шт.

11

0C

ORDER COMPONENTS

PTO, Primary, Refer to Fig. 01.01 & 01.02

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

5шт.

13

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

14

86538195

WASHER

1шт.

15

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

16

232-4148

NUT,1/2"-13, GC

3шт.

17

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1/8"-27

1шт.

18

695496

BEARING ASSY,76.86 mm ID x 89.92 mm OD x 25.4 mm

Includes: Ref. 19

1шт.

19

454113R91

BEARING ASSY,38.1mm ID x 80mm OD x 21mm W

1шт.

20

86632289

PLATE

1шт.

21

5135060

TOOL BOX

1шт.

22

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

1шт.

23

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

2шт.

24

495-21019

WASHER,#8

5/8"

2шт.

25

231-53410

FLANGE NUT,Flg, 5/8"-11

2шт.

26

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

12шт.

27

425-288

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

28

86541412

SPACER

2шт.

29

86599724

BRACKET

Includes: Foam Tape

3шт.

29

86614849

BRACKET

Flail units

3шт.

30

86564683

SUPPORT

(Requires Welding)

1шт.

31

86629969

FLANGE

4шт.

32

86552016

BALL BEARING,38.1mm ID x 80mm OD x 21.01mm W

Includes: Set Screws

2шт.

33

495-11066

WASHER,5/8", SAE

4шт.

34

86629975

CHANNEL

2шт.

35

86538151

SHAFT

1-1/2"-23 Spline One End

1шт.

Prior to PIN HCA0008001

1шт.

35

86979386

SHAFT

1-3/8"-21 One End, 23 Splines Other End

1шт.

After PIN HCA0008001

1шт.

36

86599744

SHIELD

2шт.

37

86629976

BRACKET

2шт.

38

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

39

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

40

86532561

SHIELD

Includes: Rivets & Washers

1шт.

40

86520136

RIVET,Aluminum, .196” Dia

4шт.

40

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

4шт.

41

0C

ORDER COMPONENTS

PTO, Secondary, Refer to Fig. 01.03 & 01.04

1шт.

42

86572845

TONGUE

Includes: Decals

1шт.

43

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

44

19670

NUT,5/8"-11, GB

1шт.

45

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.
