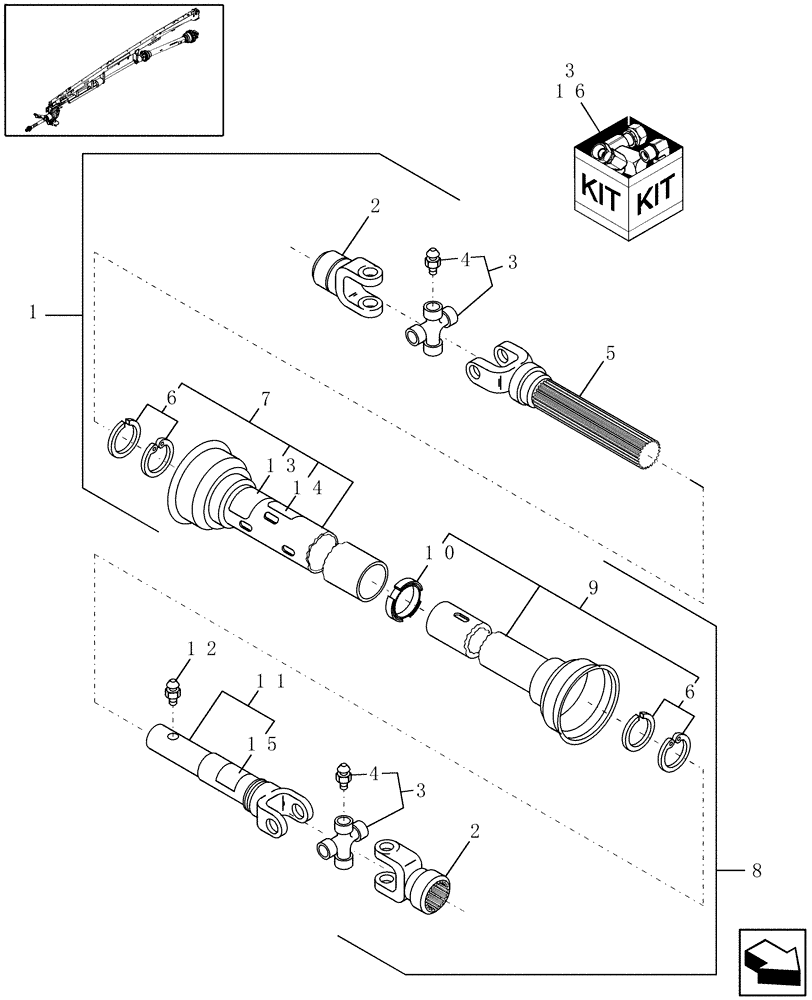

Запчасти Case IH DCX131F (01.05[1]) - SWIVEL TONGUE PTO, DRAWBAR (01) - PTO DRIVE SHAFT

1

86604689

PTO

Front Half, 1-3/8", Includes: Ref 2 -7, 13 & 14

1шт.

Metal Shields

1шт.

1

87061005

FRONT PTO ASSY

Half, 1-3/8", Includes: Ref 2 -7, 13 & 14

1шт.

Plastic Shields

1шт.

1

87061004

FRONT PTO ASSY

Half, 1-3/4", Includes: Ref 2 -7, 13 & 14

1шт.

2

86560318

YOKE

Front Lock, 1-3/8"

2шт.

2

87737194

YOKE

Front Lock, 1-3/4"

1шт.

2

86534533

REPAIR KIT

Auto-Lok, Services 86560318, Includes: (1) Retaining Ring, (1) Spring, (1) Collar, (2) Pawls, (4) Balls & Instructions

1шт.

2

86539714

REPAIR KIT

Auto-Lok, 1-3/4" Yoke. Includes: (1) Retaining Ring, (1) Collar, (1) Spring, (2) Pawls & (4) Balls

1шт.

3

86520896

BEARING ASSY

Bearing

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

86603737

YOKE

& shaft

1шт.

6

86505713

NYLON BEARING

Nylon, services Ref. 7, 9 & 16

2шт.

Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

Used W/Metal Shields

1шт.

6

87050379

REPAIR KIT

Inner

1шт.

Used W/Plastic Shields

1шт.

6

87039062

REPAIR KIT

Outer

1шт.

Used W/Plastic Shields

1шт.

7

86593145

GUARD

Outer, Metal

1шт.

7

87060071

GUARD ASSY.

Set, Inner & Outer; Plastic

1шт.

8

86621885

PTO

Rear Half, Includes: Ref. 2, 3, 4, 6, 9 - 12, & 15

1шт.

Metal Shields

1шт.

8

87061003

REAR PTO ASSY

1шт.

Plastic Shields

1шт.

9

86621891

GUARD

Inner, Metal

1шт.

9

87060071

GUARD ASSY.

Set, Inner & Outer; Plastic

1шт.

10

86575864

RING

1шт.

Used W/Metal Shields

1шт.

11

86603736

YOKE,2.50" OD x 11.31" L

& tube

1шт.

12

86542773

LUBE NIPPLE

1шт.

13

849471

DANGER DECAL

Rotating Driveline, English

1шт.

13

849482

DANGER DECAL

Rotating Driveline, French

1шт.

13

9801260

DANGER DECAL

DANGER, Rotating Driveline, Spanish

1шт.

14

86593134

DECAL

Lube, English

1шт.

14

86593136

DECAL

Lube, French

1шт.

15

849472

DANGER DECAL

Shield Missing, English

1шт.

15

849483

DANGER DECAL

Shield Missing, French

1шт.

16

86534533

REPAIR KIT

Auto-Lok, services Ref. 2, 1-3/8"

1шт.

Includes: (1) Coil Spring, (1) Collar, (2) Pawls, (1) Retaining Ring, (4) Balls & Instructions

1шт.
