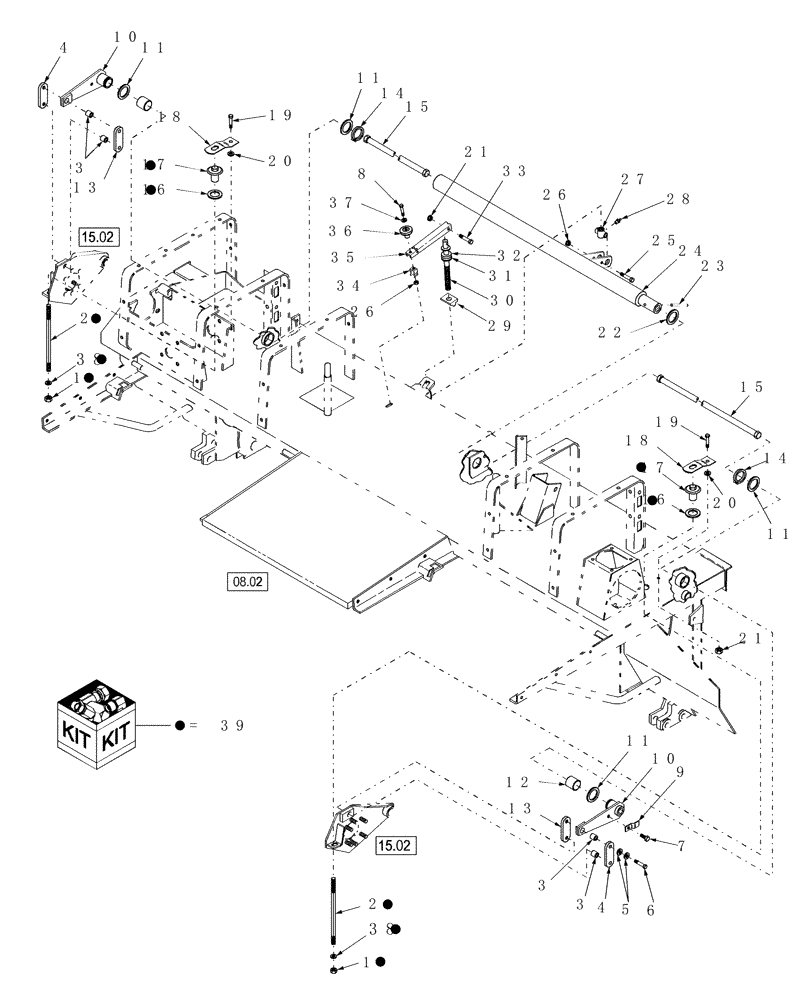

Запчасти Case IH DCX131 (15.03) - ROLL TENSION (15) - CROP CONDITIONING

1

231-53410

FLANGE NUT,Flg, 5/8"-11

2шт.

Prior To PIN HCA0008501

1шт.

1

280375

NUT,3/4"-10, GC

2шт.

From PIN HCA0008501

1шт.

2

86554356

ROD

5/8"-11 x 14"

2шт.

Prior To PIN HCA0008501

1шт.

2

87038520

ROD

3/4"-10 x 14-1/4"

2шт.

From PIN HCA0008501

1шт.

3

86631384

SPACER

Link

4шт.

4

86631385

CONNECTING LINK

2шт.

5

262183

WASHER

1/2" ID

4шт.

6

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

7

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

9

289688

CLIP

2шт.

10

86632454

ARM

2шт.

11

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

1шт.

12

213346

BUSHING,44.78mm ID x 49.61mm OD x 41.27mm L

2шт.

13

86631386

CONNECTING LINK

2шт.

14

100-11175

SNAP RING,#175, Ext

2шт.

15

144385

TORSION BAR

2шт.

16

9849882

WASHER,38mm ID x 65mm OD x 6.35mm Thk

1-7/16" ID

2шт.

17

86504380

FLANGE NUT,5/8" - 11

2шт.

Prior To PIN HCA0008501

1шт.

17

87038521

NUT

2шт.

From PIN HCA0008501

1шт.

18

86538387

RETAINER

2шт.

19

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

20

215588

WASHER

3/8" ID

2шт.

21

231-5346

FLANGE NUT,Flg, 3/8"-16

3шт.

22

67517

WASHER

1шт.

23

80599

GROOVED PIN,1/4" x 2 3/4", Type A

1шт.

24

86633913

TUBE,1359 mm L

1шт.

Prior To PIN HCA0008780

1шт.

24

87349309

TUBE,558 mm L

1шт.

From PIN HCA0008780

1шт.

25

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

26

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

27

9622890

NUT

Lift, 3/4"-10

1шт.

28

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

625098

PIVOT

1шт.

30

86506799

ROD

1шт.

31

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

1шт.

Prior To PIN HCA0008501

1шт.

31

87021862

WASHER,19.8mm ID x 38.1mm OD x 4.76mm Thk

Plated, 3/4"

1шт.

From PIN HCA0008501

1шт.

32

9801922

THRUST BEARING,19.25mm ID x 35.97mm OD x 11.76mm W

1шт.

33

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

34

223162

CLIP

1шт.

35

86630978

HANDLE

1шт.

36

33781

KNOB

1шт.

37

495-21038

WASHER,5/16"

1шт.

38

87021862

WASHER,19.8mm ID x 38.1mm OD x 4.76mm Thk

Plated, 3/4"

2шт.

From PIN HCA0008501

1шт.

39

87042133

REPAIR KIT

Allows ASN Roll Gap Rods To Be Used In BSN Units; Includes: Ref. 1 (1), 2 (1), 16 (1), 17 (1), 38 (1), & Ins

1шт.
