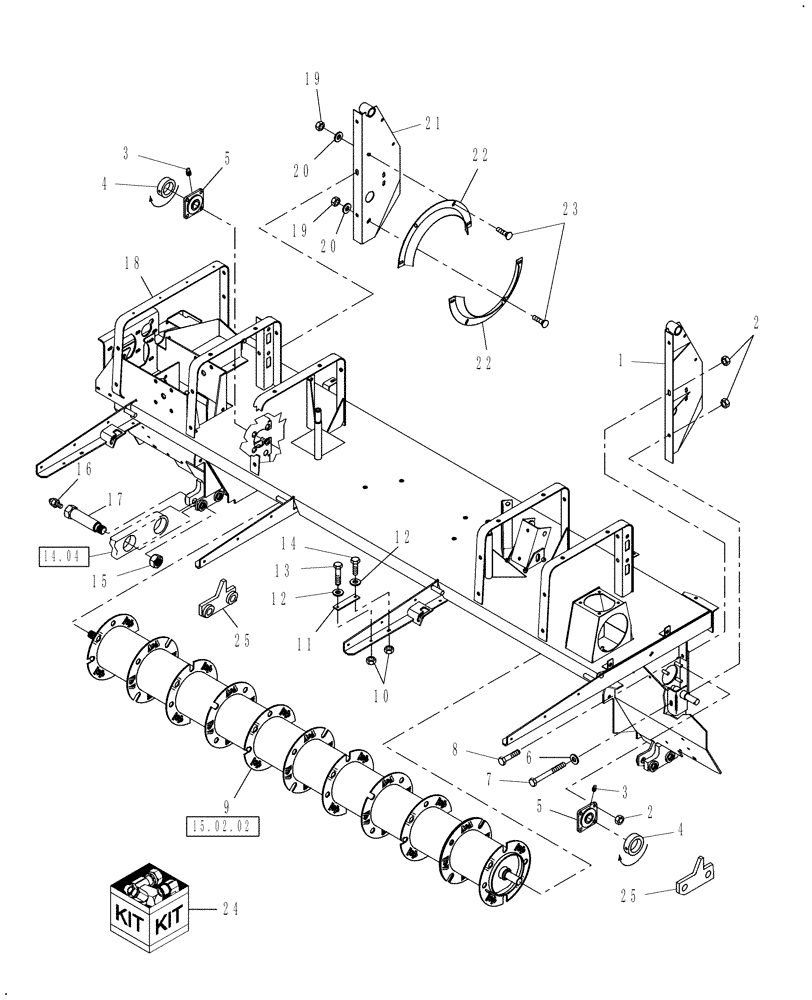

Запчасти Case IH DCX131 (15.02/01) - HEADER AND ROTOR MOUNTING (15) - CROP CONDITIONING

1

86566150

SHIELD

LH

1шт.

2

86521607

FLANGE NUT,Flg, 1/2"-13, G5

14шт.

3

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

2шт.

4

45393

COLLAR

2шт.

5

86575515

BEARING ASSY

2шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

7

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

8

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

9

87054830

ROTOR ASSY.

1шт.

10

9823743

FLANGE NUT,Flg, 5/16"-18

8шт.

11

849495

RUBBER PAD

4шт.

12

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

13

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

14

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

15

86557260

SPECIAL NUT

Special, Lock, 3/4"-10

4шт.

16

87414

LUBE NIPPLE,1/4" - 28

1шт.

17

86571960

BOLT

Cutterbar Mounting

4шт.

17

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

18

86630417

FRAME

Header

1шт.

18

84217290

FRAME

Header

1шт.

MY2010

1шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

21

86575698

SHIELD

RH, Upper

1шт.

22

86551699

SHIELD

RH, Lower

4шт.

23

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

16шт.

24

86565127

KIT

Cutterbar Support

1шт.

Includes: (1) LH Support & (1) RH Support.

1шт.
