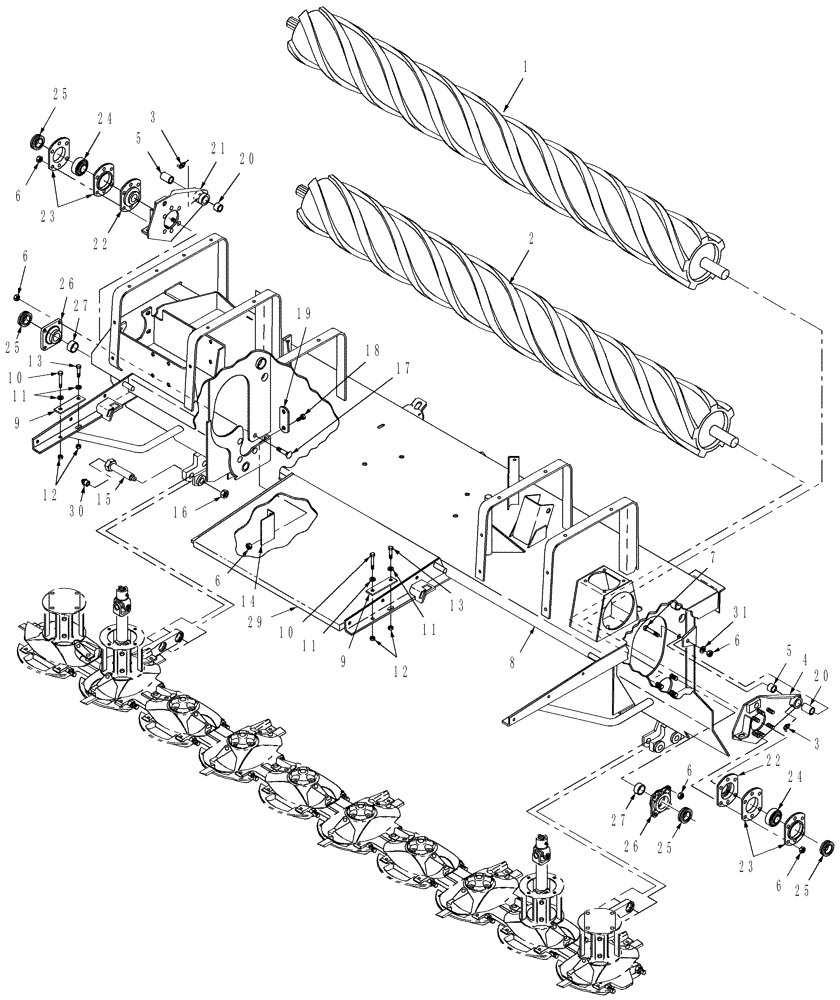

Запчасти Case IH DCX131 (15.02) - CONDITIONER ROLLS (15) - CROP CONDITIONING

1

86610314

ROLL

Steel, Upper

1шт.

Do Not Intermix Rubber and Steel Rollers

1шт.

1

86610941

ROLLER ASSY.

Spiral Rubber, Upper - If converting from spiral to Chevron, see fig. 15.02(01)

1шт.

2

86610313

ROLL

Steel, Lower

1шт.

Do Not Intermix Rubber and Steel Rollers

1шт.

2

86610945

ROLLER ASSY.

Spiral Rubber, Lower - If converting from spiral to Chevron, see fig. 15.02(01)

1шт.

3

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

4

86629686

ARM

Includes: Ref. 5

1шт.

Prior To PIN HCA0008501

1шт.

4

87056485

ARM ASSY.

Includes: Ref. 5

1шт.

From PIN HCA0008501

1шт.

5

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

4шт.

6

425-288

FLANGE NUT,Flg, 1/2"-13, G5

24шт.

7

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

8

86625985

FRAME ASSY

1шт.

9

241578A1

FLANGE

4шт.

10

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

11

495-21038

WASHER,5/16"

8шт.

12

231-5345

FLANGE NUT,Flg, 5/16"-18

8шт.

13

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

86631049

SHIELD

1шт.

15

86571960

BOLT

Cutterbar Mounting

4шт.

15

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

16

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

17

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

18

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

19

48324

PLATE

1шт.

20

9849929

SPACER

2шт.

21

86629687

ARM

Includes: Ref. 5

1шт.

Prior To PIN HCA0008501

1шт.

21

87055307

ARM

Includes: Ref. 5

1шт.

From PIN HCA0008501

1шт.

22

86633047

SHROUD

2шт.

23

86629969

FLANGE

4шт.

24

B92630

BEARING

2шт.

25

45393

COLLAR

4шт.

26

86573043

BEARING ASSY

2шт.

27

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

2шт.

28

Not Used

1шт.

29

86626577

COVER

Includes: Decals

1шт.

29

86611825

WARNING DECAL

No Step

1шт.

29

86628571

WARNING DECAL

ROTATING CUTTERBAR -

1шт.

29

86629146

WARNING DECAL

CLOSE SHIELD PRIOR TO -

1шт.

30

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

31

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.
