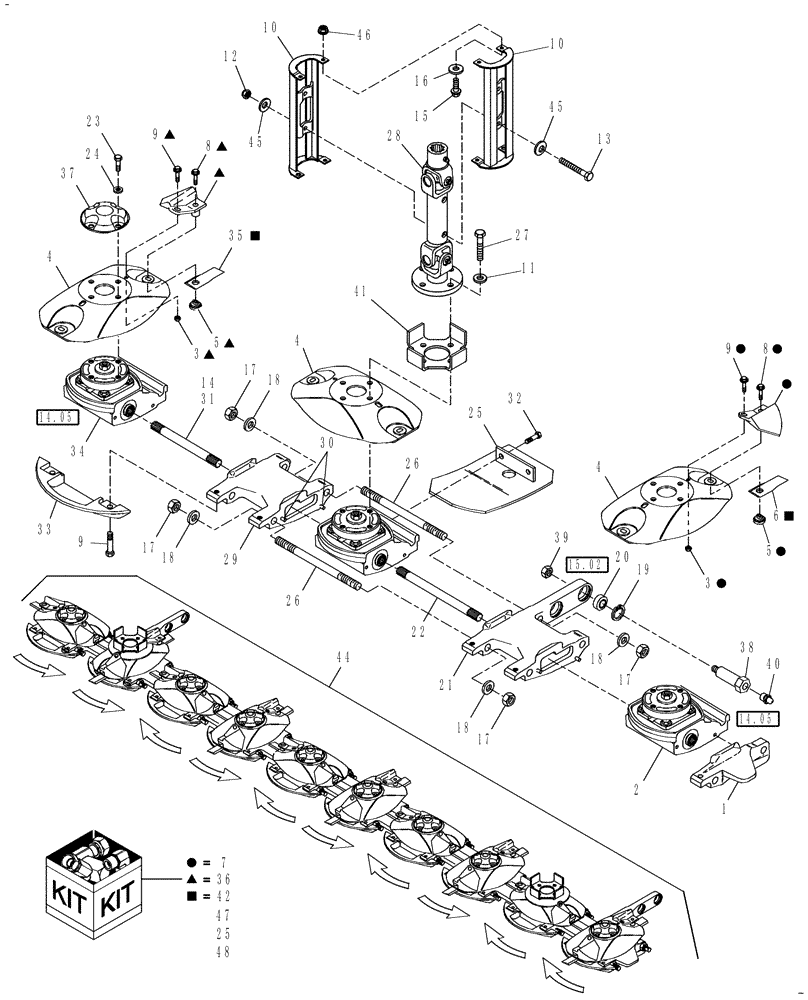

Запчасти Case IH DCX131 (14.04) - CUTTERBAR (14) - CROP CUTTING

1

86629690

ARM

RH

1шт.

1

86629691

ARM

LH

1шт.

2

0C

ORDER COMPONENTS

Module, Control, CW, Modules 1, 2, 4, 6 & 8

5шт.

3

86544265

FLANGE NUT,Flg, 1/2"-13, G8

Flg, G8, 1/2"-13

20шт.

4

87646406

DISC

10шт.

5

87725066

NUT

Knife

20шт.

6

9847683

BLADE,Knife CW

CW, 7° Twist

10шт.

6

86621872

BLADE

CW, 14° Twist

10шт.

6

87029587

BLADE

CW, Over-serrated, 14° Twist

10шт.

6

86532078

KNIFE

V

20шт.

7

87040840

KIT

Lifter, CW, Includes: (2) Lifters, Hardware, & Instructions

5шт.

8

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

20шт.

9

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

40шт.

9

87040886

BOLT

Flg, Self-Locking, G8, 1/2"-13 x 1-1/4"

20шт.

Will replace 86515925 in kits 87040840 & 87040841, which will substitute for 86632966 & 86632967

1шт.

10

84260963

KIT

Tall Drum, Inc: 12, 13, 45 and Reinforcements which are not shown

2шт.

Drum Halves and Reinforcements Are NSS

1шт.

10

84469547

KIT

Tabbed Tall Drum, Inc: 12, 13, 45 and reinforcements not shown

2шт.

Replaces 84260963, Drum Halves NSS

1шт.

11

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2")

1шт.

12

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

13

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

4шт.

14

132096A1

GREASE

14 oz. Cartridge, For Use On Ref. 31

1шт.

15

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

16

492-11031

LOCK WASHER,5/16"

8шт.

17

429-1012

NUT,3/4"-10, G8

40шт.

18

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

40шт.

19

100-21162

SNAP RING,1.625", Int, #162

4шт.

20

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

4шт.

21

86540364

SPACER

LH, Includes: (4) Groove Pins

1шт.

21

87057901

ARM ASSY.

RH, Includes: (4) Groove Pins

1шт.

21

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4"

8шт.

22

86519039

SHAFT

L = 268mm

2шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

32шт.

24

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

32шт.

25

86572263

SKID/SHOE

[Welded Shoe], See Figure Note

10шт.

Prior To MY 2006

1шт.

25

87047426

SKID/SHOE

[Formed Shoe], See Figure Note

10шт.

From MY 2006

1шт.

25

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

10шт.

25

86630488

SHOE

Hi Skid

10шт.

25

W0

ORDER WHOLEGOODS

Kit, Hi Stubble; Includes: (8) 86630488 Plus Instructions

1шт.

26

86501934

THREADED ROD

Services Partially & Fully-Threaded Rods

20шт.

27

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

28

86565923

SHAFT

Refer To Fig. 14.06 For Component Breakdown

2шт.

29

86506032

SPACER

Includes: Ref. 30

7шт.

30

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4"

28шт.

31

86519042

SHAFT

L = 248mm

7шт.

32

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

20шт.

33

86565383

GUARD

See Figure Note

10шт.

Prior To MY 2006

1шт.

33

87047845

STONEGUARD

See Figure Note

10шт.

From MY 2006

1шт.

34

0C

ORDER COMPONENTS

Module, Control, CCW, Modules 3, 5, 7, 9 & 10

5шт.

35

9847684

BLADE,Knife CCW

CCW, 7° Twist

10шт.

35

86621873

BLADE

CCW, 14° Twist

10шт.

35

87029588

BLADE

CCW, Over-serrated, 14° Twist

10шт.

35

86532078

KNIFE

"V"

20шт.

36

87040841

KIT

Lifter, CCW

5шт.

37

87581143

CAP

See Fig. 14.06[1]

1шт.

38

86571960

BOLT

Cutterbar Mounting

4шт.

38

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

39

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

40

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

41

86629689

DISC

2шт.

42

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 6 & (10) 14° CCW Blades, Ref 35

1шт.

42

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 6 & (16) 14° CCW Blades, Ref 35

1шт.

43

Reference Not Used

1шт.

44

87674849

CUTTERBAR

Does Not Include Ref 10, 19, 28, 38, 39 or 40

1шт.

45

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

46

231-5345

FLANGE NUT,Flg, 5/16"-18

8шт.

47

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

48

87602273

REPAIR KIT

Shock Retrofit

1шт.

Contains parts to retrofit two discs.

1шт.
