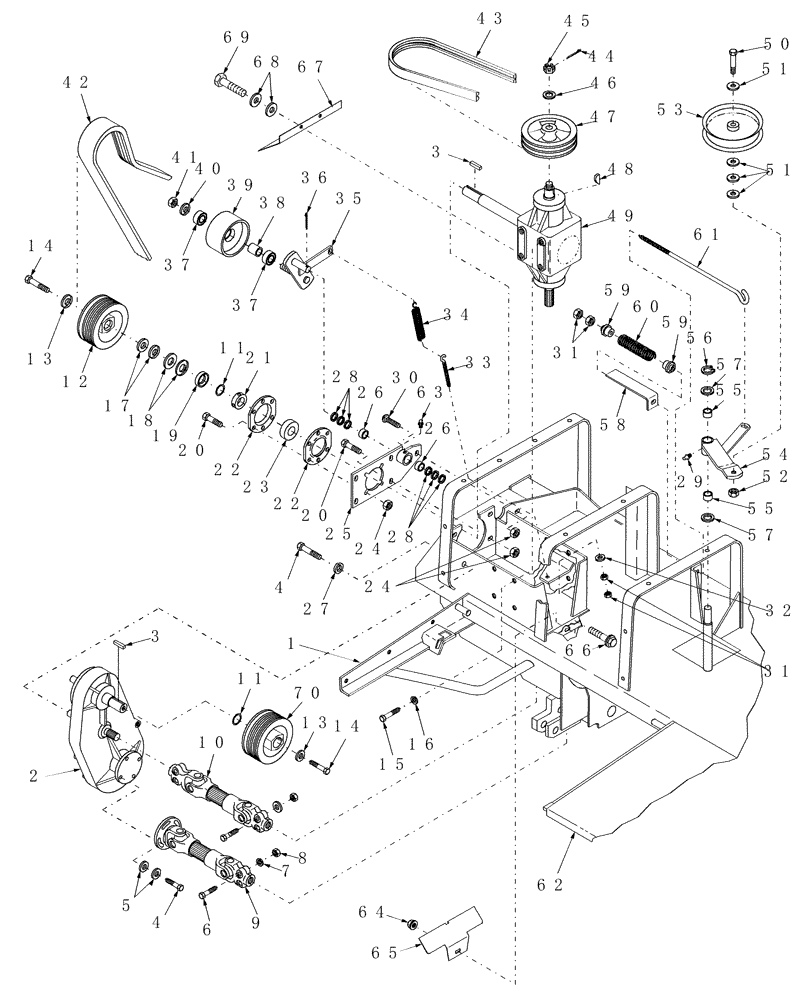

Запчасти Case IH DCX131 (14.02) - HEADER DRIVE, RIGHT SIDE (14) - CROP CUTTING

1

86625985

FRAME ASSY

Header

1шт.

2

86592075

GEARBOX

Refer to Fig. 03.03

1шт.

2

86592075R

REMAN-GEARBOX

Reman Gearbox, DCX131 Pivot Tongue Disc Mower Cond. 8/01 - 10/08

1шт.

2

86592075C

CORE-GEARBOX

Return Number

1шт.

3

87485

KEY,50.8mm OAL x 7.96mmThk

Square, 5/16" x 2"

1шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

9шт.

5

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

6

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

8

425-118

NUT,1/2"-20, G5

6шт.

9

0C

ORDER COMPONENTS

U-Joint Flanged, Refer to Fig. 15.01

1шт.

10

0C

ORDER COMPONENTS

U-Joint Flanged, Refer to Fig. 15.01

1шт.

11

626286

SNAP RING

2шт.

12

86632264

PULLEY

7" OD

1шт.

13

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

2шт.

14

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

15

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

8шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

17

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

1шт.

18

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

1шт.

19

86510186

SPACER

1шт.

20

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

21

455112R11

COLLAR

1шт.

22

86629969

FLANGE

2шт.

23

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

1шт.

24

425-288

FLANGE NUT,Flg, 1/2"-13, G5

9шт.

25

86632943

PLATE

Includes: Ref. 26

1шт.

26

80027767

BUSHING,25.48mm ID x 28.65mm OD x 22.22mm L

2шт.

27

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

5шт.

28

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

29

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

30

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

31

425-106

NUT,3/8"-16, Cl 5

4шт.

32

495-21044

WASHER,3/8"

1шт.

33

36835

EYEBOLT,G2, 3/8"-16 x 6-1/2"

G2, 3/8"-16 x 6-1/2"

1шт.

34

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

1шт.

35

86632284

ARM

1шт.

36

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

37

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

2шт.

38

217994

SPACER

3/4" ID x 1"x 1-1/4" L

1шт.

39

86632727

IDLER

1шт.

40

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

1шт.

41

232-41412

LOCK NUT,3/4"-10, GC

1шт.

42

86627797

V-BELT,0.66" W x 54.20" L, 4 Ribs

1шт.

For 740RPM Roll Speed

1шт.

42a

86627810

V-BELT,0.66" W x 55.70" L, 4 Ribs

1шт.

For 640RPM Roll Speed

1шт.

43

86627796

V-BELT,0.66" W x 147.00" L, 2 Ribs

1шт.

44

432-832

COTTER PIN,1/8" x 2"

1шт.

45

49027

SLOTTED NUT

Slotted

1шт.

46

672

WASHER

1шт.

47

86632261

PULLEY

1шт.

48

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

49

86518543

GEARBOX

Refer to Fig. 03.04

1шт.

49

86518543R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

49

86518543C

CORE-GEARBOX

Return Number, Bevel

1шт.

50

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

51

495-21019

WASHER,#8

1шт.

52

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

1шт.

53

86588003

IDLER,51.6mm W x 228.6mm OD

1шт.

54

86632285

ARM

Includes: Ref. 55

1шт.

55

80027767

BUSHING,25.48mm ID x 28.65mm OD x 22.22mm L

2шт.

56

100-1698

SNAP RING,#98, Ext

1шт.

57

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

2шт.

58

86632286

GUIDE

1шт.

59

86535388

SPACER

2шт.

60

621022

SPRING

1шт.

61

86535390

EYEBOLT

3/8"-16 x 20-1/4"

1шт.

62

86626577

COVER

Includes: Decals

1шт.

62

86611825

WARNING DECAL

NO STEP

1шт.

62

86628571

WARNING DECAL

ROTATING CUTTERBAR -

1шт.

62

86629146

WARNING DECAL

CLOSE SHIELD PRIOR TO -

1шт.

63

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

64

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

65

86629762

SHIELD

1шт.

66

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

67

86632263

SHIELD

1шт.

68

495-21038

WASHER,5/16"

1шт.

69

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

70

86632265

SHEAVE

6" OD

1шт.

For 740RPM Roll Speed (Standard)

1шт.

70

86632264

PULLEY

7" OD

1шт.

For 640RPM Roll Speed

1шт.
