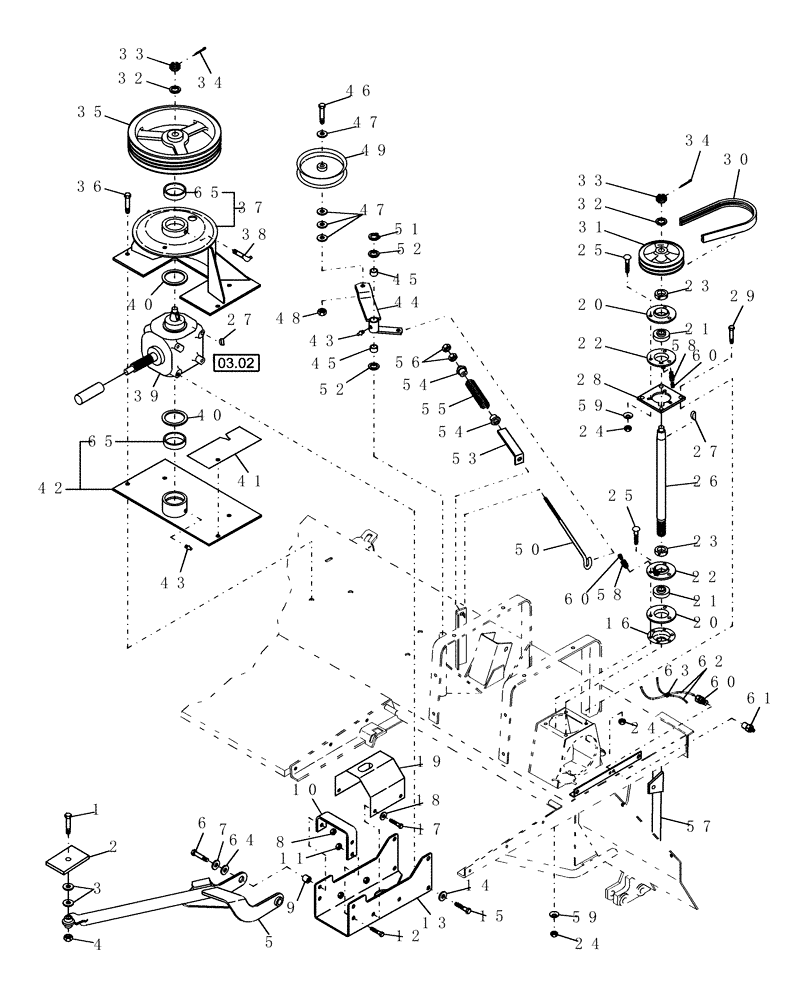

Запчасти Case IH DCX131 (14.01) - HEADER DRIVE, LEFT SIDE (14) - CROP CUTTING

1

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

2

86538355

SPACER

1шт.

3

495-11081

WASHER,3/4", SAE

2шт.

4

232-41412

LOCK NUT,3/4"-10, GC

1шт.

5

86629779

TUBE,1243.60 mm L

1шт.

6

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

7

695335

WASHER,12.95mm ID x 37.59mm OD x 4.75mm Thk

35/64" I.D. x 3/16" Thick

2шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

2шт.

9

86631384

SPACER

1шт.

10

86629740

BRACKET

1шт.

Prior To 7/01/06

1шт.

10

87517038

BRACKET

Bracket

1шт.

From 7/01/06

1шт.

11

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

12

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

13

86629782

CHAMBER

1шт.

14

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

4шт.

15

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

4шт.

16

86633054

SHIELD

Upper Roll

1шт.

17

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18

492-11031

LOCK WASHER,5/16"

4шт.

19

86629781

COVER

PTO

1шт.

20

86537486

FLANGE,Bearing

2шт.

21

470597R91

BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"

2шт.

22

86620418

FLANGE,Bearing

2шт.

23

517645R11

COLLAR

Locking, Includes: Set Screw

2шт.

24

425-286

FLANGE NUT,Flg, 3/8"-16, G5

10шт.

25

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

26

86589486

SHAFT

1шт.

27

126-43

WOODRUFF KEY,#128, 5/16" x 2 1/8"

1шт.

28

86632288

PLATE

1шт.

29

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

4шт.

30

86627796

V-BELT,0.66" W x 147.00" L, 2 Ribs

1шт.

31

86632261

PULLEY

1шт.

32

672

WASHER

2шт.

33

49027

SLOTTED NUT

Slotted

2шт.

34

432-832

COTTER PIN,1/8" x 2"

2шт.

35

86632255

PULLEY

1шт.

36

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

37

86641961

SUPPORT

1шт.

38

219-42

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

39

86572192

GEARBOX

Pivot

1шт.

39

86572192R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

39

86572192C

CORE-GEARBOX

Return Number, Gearbox, Pivot

1шт.

40

86523854

THRUST WASHER

2шт.

41

86632259

SHIM

1шт.

42

86632258

PLATE

1шт.

43

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

44

86632287

ARM

Includes: Ref. 45

1шт.

45

80027767

BUSHING,25.48mm ID x 28.65mm OD x 22.22mm L

2шт.

46

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

47

495-21019

WASHER,#8

5/8"

1шт.

48

425-2810

FLANGE NUT,Flg, 5/8"-11, G5

1шт.

49

86588003

IDLER,51.6mm W x 228.6mm OD

1шт.

50

86535390

EYEBOLT

3/8"-16 x 20-1/4"

1шт.

51

100-1698

SNAP RING,#98, Ext

1шт.

52

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

2шт.

53

86632286

GUIDE

1шт.

54

86535388

SPACER

2шт.

55

621022

SPRING

1шт.

56

425-106

NUT,3/8"-16, Cl 5

2шт.

57

86625985

FRAME ASSY

Header

1шт.

58

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

Straight

2шт.

59

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

60

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

4шт.

61

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

2шт.

62

9846836

PLASTIC-RUBBER TUBE,3.58mm ID x 1000mm L

3/16"x 39-3/8"

1шт.

63

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

64

26129

WASHER,25.8mm ID x 39.69mm OD x 0.99mm Thk

2шт.

65

86512604

DRIVE BUSHING,88.9mm ID x 93.66mm OD x 25.65mm L

1шт.
