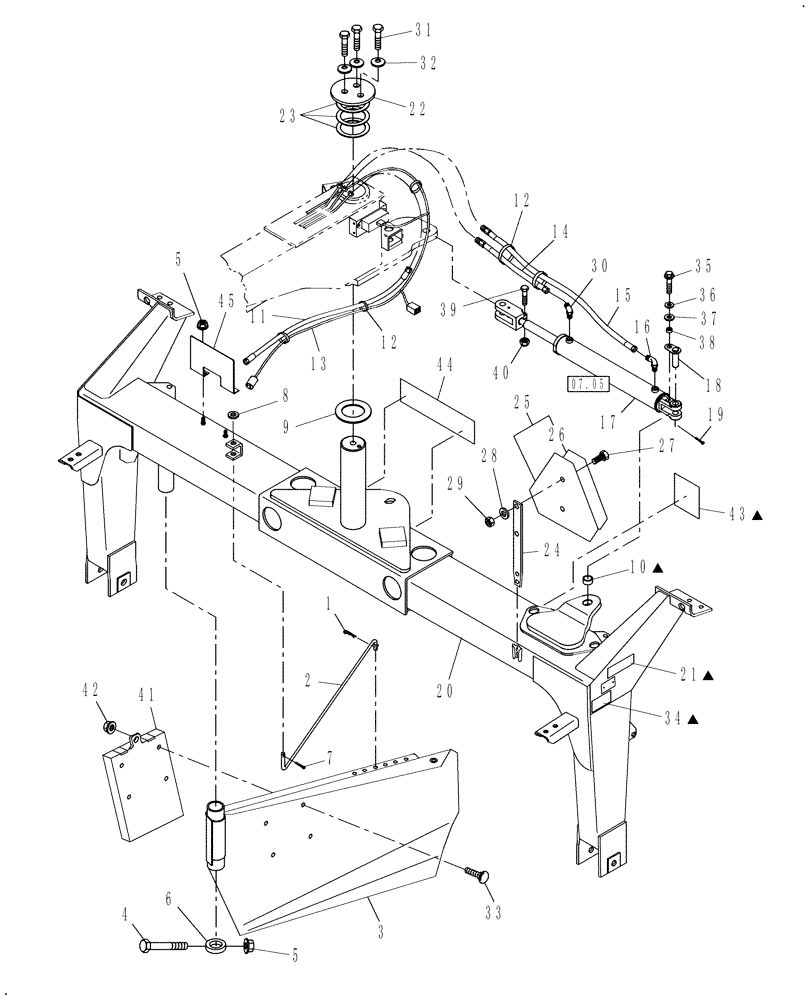

Запчасти Case IH DCX131 (12.09) - TRAIL FRAME, REAR (12) - MAIN FRAME

1

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

2шт.

2

86506511

ADJUSTMENT ROD

2шт.

3

86627018

SHIELD

Right Hand

1шт.

3

86627020

SHIELD

Left Hand

1шт.

4

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

5

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

6

86545693

COLLAR

2шт.

7

394818

COTTER PIN,M5 x 25

2шт.

8

495-11053

WASHER,1/2", SAE

2шт.

9

86510727

WASHER

Nylon, 170 mm o.d.

1шт.

Prior to PIN

1шт.

9

86568174

WASHER

Nylon, 210 mm o.d.

1шт.

After PIN

1шт.

10

787219

SLEEVE

Part Of Trailframe

1шт.

11

86539892

HOSE,9.65 mm ID x 1003.3 mm

1шт.

12

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

13

86560194

WIRE HARNESS

1шт.

14

86539890

HOSE

1шт.

15

86539891

HOSE

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

17

86630071

HYDRAULIC CYLINDER

Swing

1шт.

Prior to PIN HAJ0017052

1шт.

87515542R

REMAN-HYD CYLINDER

DCX131 (8/01-10/08), DCX131F (9/07-10/08), Reman for New P/N 86630071

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

17

86643606

HYDRAULIC CYLINDER

Swing

1шт.

From PIN HAJ0017052

1шт.

87515542R

REMAN-HYD CYLINDER

DCX131 (8/01-10/08), DCX131F (9/07-10/08)Reman for New P/N 86643606

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

17

87018098

HYDRAULIC CYLINDER

Swing, Monarch

1шт.

After PIN

1шт.

87515542R

REMAN-HYD CYLINDER

DCX131 (8/01-10/08), DCX131F (9/07-10/08), Reman for New P/N 87018098

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

18

86603686

PIN,25.4mm OD x 90mm L

2шт.

19

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

20

86631780

FRAME

Trail, Includes: Decals

1шт.

Transporter-Ready Part

1шт.

Prior To PIN HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

20

87055692

FRAME ASSY

Trail, Includes: Decals

1шт.

From PIN HCA0008630 (Steel Rolls), HCA0008689 (Rubber Rolls)

1шт.

21

86547782

REFLECTOR,YELLOW

Yellow, Retroreflective (Left Side Shown)

2шт.

22

86627704

PLATE

1шт.

23

86510725

WASHER

1шт.

24

86535159

ARM

SMV, Spade

1шт.

25

86547710

EMBLEM

KIT SMV, Includes: Decal, Ref. 26

1шт.

26

86547711

DECAL,SMV

SMV

1шт.

27

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

28

492-11010

LOCK WASHER,#10

2шт.

29

225-14110

NUT,#10-24

2шт.

30

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

31

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

33

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

34

86624774

DANGER DECAL

(Left Side Shown)

2шт.

34

86625174

DANGER DECAL

DANGER, French

2шт.

34

86625175

DANGER DECAL

DANGER, Spanish

2шт.

35

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

37

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

38

103060

BUSHING,9.85mm ID x 15.95mm OD x 7.1mm Thk

2шт.

39

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

40

232-4146

NUT,3/8"-16, GC

1шт.

41

86613674

CASE

1шт.

42

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

43

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

44

86624776

DECAL

CIH Logo, 100

1шт.

45

86574272

ANGLE

1шт.

Includes decals.

1шт.
