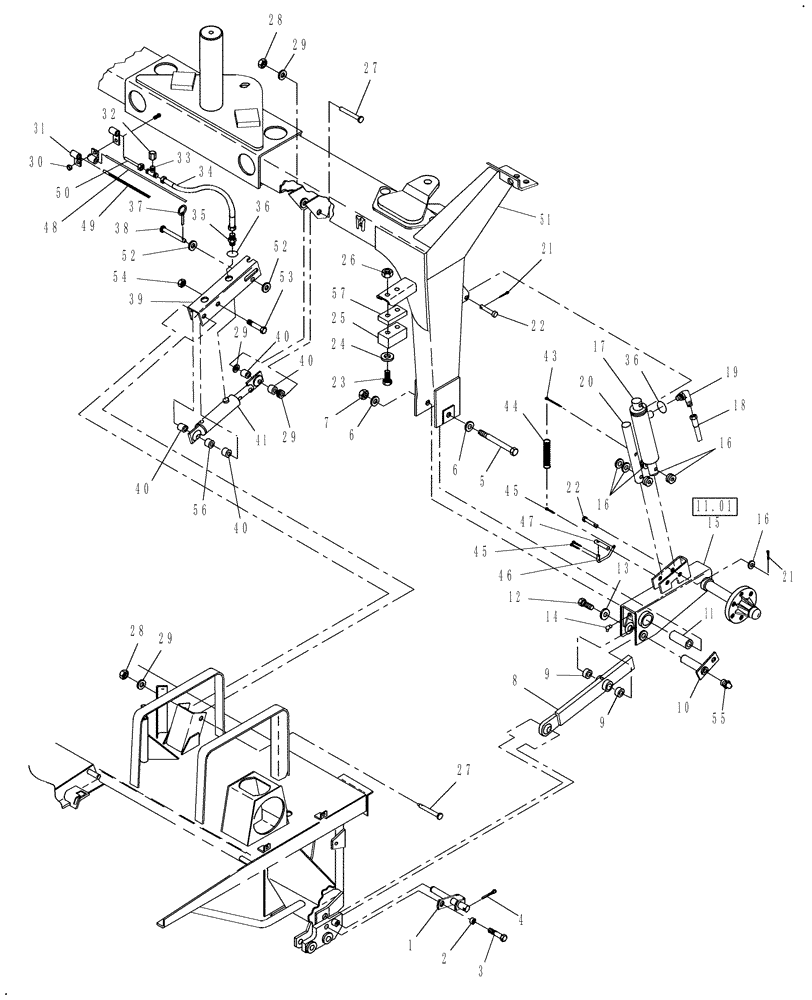

Запчасти Case IH DCX131 (12.08) - TRAIL FRAME, LEFT SIDE (12) - MAIN FRAME

1

86522799

PIN

1шт.

2

167381

SPACER

1шт.

3

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

4

432-1632

COTTER PIN,1/4" x 2"

1шт.

5

426-16128

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

6

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

7

425-1016

NUT,1"-8, G5

1шт.

8

86607964

Lift, Includes: Ref 9

1шт.

9

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

2шт.

10

86632239

PIN,31.75mm OD x 125.5mm L

1шт.

11

86632243

SPACER

120.0 / 120.5 mm L

1шт.

12

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

1шт.

13

86516694

WASHER

1шт.

14

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

15

0C

ORDER COMPONENTS

Hub & Spindle, Left Hand, Refer to Fig. 11.01

1шт.

16

495-11066

WASHER,5/8", SAE

9шт.

17

86627756

HYDRAULIC CYLINDER

Slave, Refer to Fig. 07.03(1)

1шт.

Prior to PIN HCA0008152

1шт.

17

87573687R

REMAN-HYD CYLINDER

DCX131 (8/01-10/08), DCX131F (9/07-10/08), Reman for New P/N 86627756

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

17

87573687

HYDRAULIC CYLINDER,28.7mm Rod, 251.71mm Stroke

Cylinder, Slave, Monarch, Refer to Fig. 07.03(2)

1шт.

Cylinder head will protrude beyond end of barrel

1шт.

From PIN HCA0008152

1шт.

17

87573687R

REMAN-HYD CYLINDER

DCX131 (8/01-10/08), DCX131F (9/07-10/08)

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

18

86539889

HOSE

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 36

1шт.

20

86632240

ROD

1шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

22

86529064

PIN

2шт.

23

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

23

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Flail unit only.

2шт.

24

495-11053

WASHER,1/2", SAE

2шт.

25

86519305

BUMPER

1шт.

26

231-5348

FLANGE NUT,Flg, 1/2"-13

2шт.

27

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

28

232-41412

LOCK NUT,3/4"-10, GC

2шт.

29

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

30

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

31

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

32

218-755

CAP,37 Degree, 3/4"-16

1шт.

33

218-594

TEE,3/4"-16, 37 Degree

1шт.

34

86539893

HOSE,9.65 mm ID x 571.5 mm

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

37

270184

LINCH PIN,6.35mm OD

Klik

1шт.

38

86510381

PIN

1шт.

39

86627885

CHAMBER

Tilt, 3-7/8" High

1шт.

40

86599380

SPACER

4шт.

41

86627758

HYDRAULIC CYLINDER

Tilt, Refer To Fig. 07.04(1)

1шт.

87394809R

REMAN-HYD CYLINDER

DCX131 PRIOR TO PIN HCA0008152 (8/01-10/08), REMAN FOR NEW P/N 86627758

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

87394809R

REMAN-HYD CYLINDER

DCX131 (8/01-10/08), DCX131F (9/07-10/08) REMAN FOR NEW P/N 86627758

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Prior to PIN HCA0008152

1шт.

41

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

Tilt, Monarch, Refer To Fig. 07.04(2)

1шт.

87394809R

REMAN-HYD CYLINDER

DCX131F, DCX131 (9/07-10/08)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Cylinder head will protrude beyond end of barrel

1шт.

From PIN HCA0008152

1шт.

42

Reference Not Used

1шт.

43

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

44

86539129

SPRING

1шт.

45

432-812

COTTER PIN,3/4" OAL x 1/8" W

3шт.

46

86631667

ROD

1шт.

47

86546360

PIN

1шт.

48

86539896

HYD TUBE,12.70 mm OD

Includes: Sleeve & Nut

1шт.

48

218-364

SLEEVE,37 Degree, 1/2" Tube

2шт.

48

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

2шт.

49

86560194

WIRE HARNESS

1шт.

50

86539895

HYD TUBE,12.70 mm OD

1шт.

51

86631780

FRAME

Trail, Includes: Decals

1шт.

Transporter-Ready Part

1шт.

Prior To PIN HCA0008740

1шт.

51

87055692

FRAME ASSY

Trail, Includes: Decals

1шт.

From PIN HCA0008740

1шт.

52

495-11081

WASHER,3/4", SAE

2шт.

53

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

54

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

55

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

56

87033961

BUSHING

2шт.

57

86558691

PLATE

Flail units only.

1шт.
