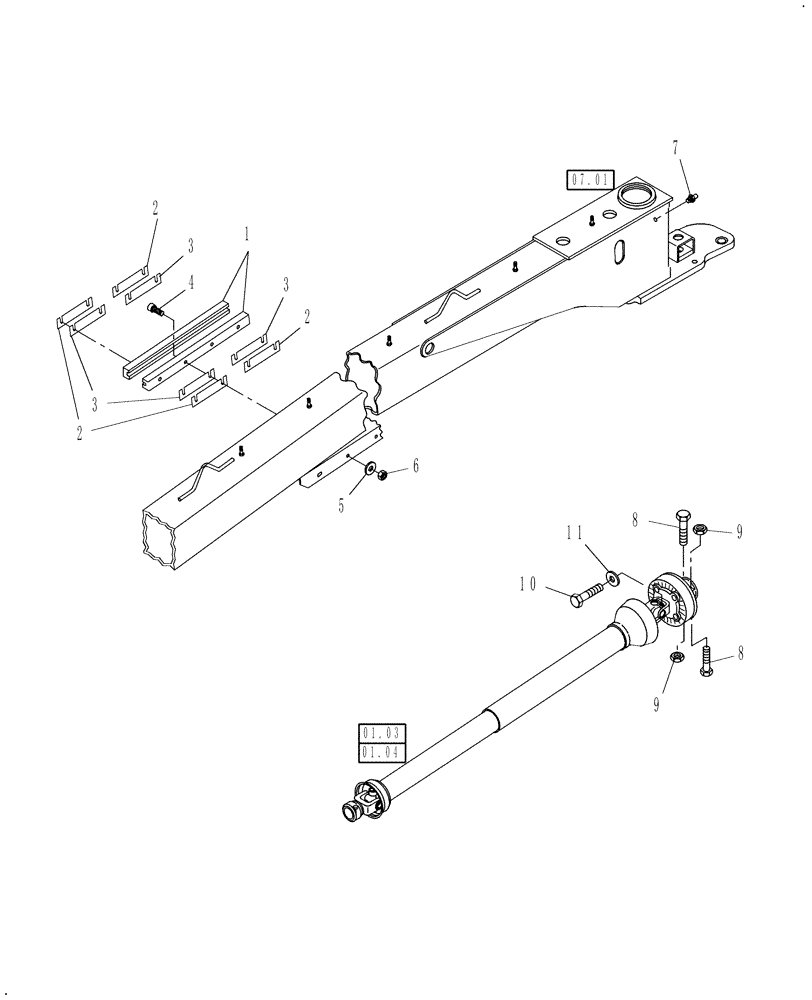

Запчасти Case IH DCX131 (12.04) - STANDARD TONGUE, REAR (12) - MAIN FRAME

1

87676553

CHANNEL

2шт.

2

58639

SHIM

1шт.

3

64612

SHIM,0.012" Thk

1шт.

4

87032817

BOLT

Cap, HSH, 5/16" x 1"

8шт.

5

495-21038

WASHER,5/16"

8шт.

6

280736

NUT,5/16"-18, GC

8шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

Component of PTO.

1шт.

9

232-4148

NUT,1/2"-13, GC

2шт.

Component of PTO.

1шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

Component of PTO.

1шт.

11

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

Component of PTO.

1шт.
