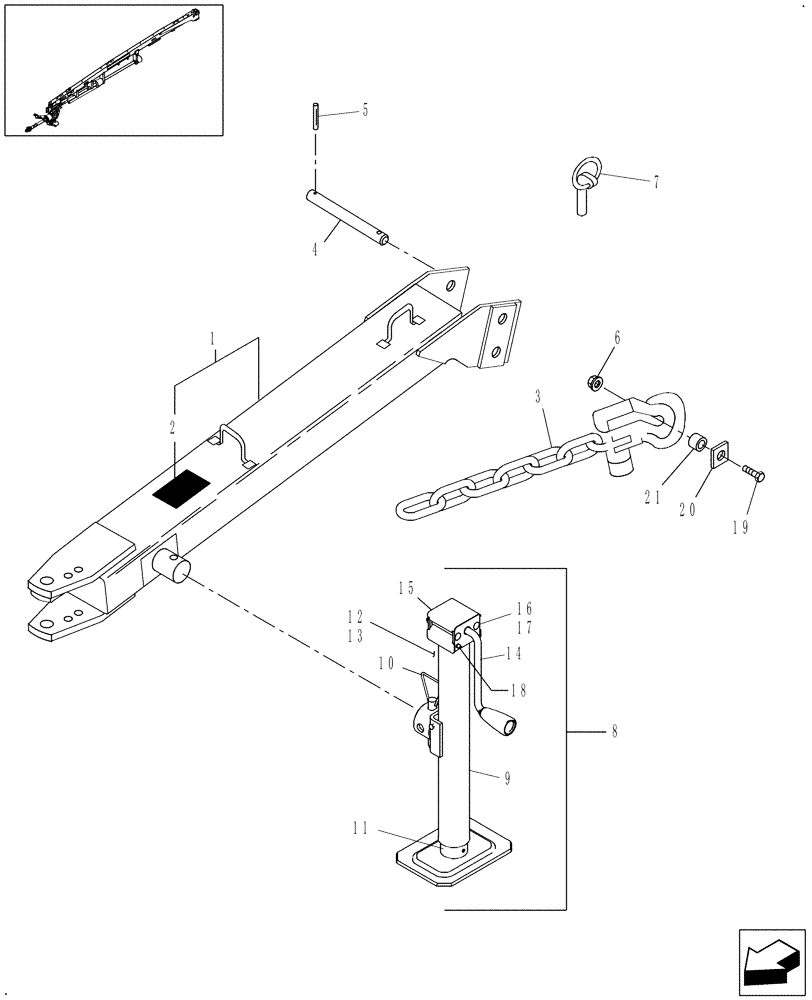

Запчасти Case IH DCX131 (12.02) - NON-TRACTOR TOW BAR (12) - MAIN FRAME

716548006

DIA KIT, ADD PROD

Contains all parts below

1шт.

1

86617510

BAR

Tow

1шт.

2

87041060

WARNING DECAL

WARNING, Maximum Safe Towing Speed; English

1шт.

2

9824087

DECAL

WARNING, Maximum Safe Towing Speed; French

1шт.

3

850116

CHAIN

Safety

1шт.

4

86572965

PIN

10-3/4" L

2шт.

5

88276

GROOVED PIN,7.94mm OD x 50.8mm L

2шт.

6

85700693

NUT,5/8" - 11, Gr C

1шт.

7

132757

LINCH PIN,11.11mm OD x 44.45mm L

1-5/8" ID

2шт.

8

86617866

JACK

Includes: Ref. 9 - 18

1шт.

9

NSS

NOT SOLD SEPARAT

Jack TUBE, outer

1шт.

10

86590810

KIT

Pin & Chain

1шт.

11

NSS

NOT SOLD SEPARAT

Jack TUBE, inner

1шт.

12

86590811

KIT

Gear

1шт.

13

86592468

BEARING ASSY,0.505" ID x 1" OD x 0.344"

Bearing

1шт.

14

86590812

KIT

Crank

1шт.

15

86590816

COVER

Gearbox

1шт.

16

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

1шт.

17

425-104

NUT,1/4"-20, Cl 5

1шт.

18

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

19

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

20

87587325

PLATE

washer, square

1шт.

231

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.
