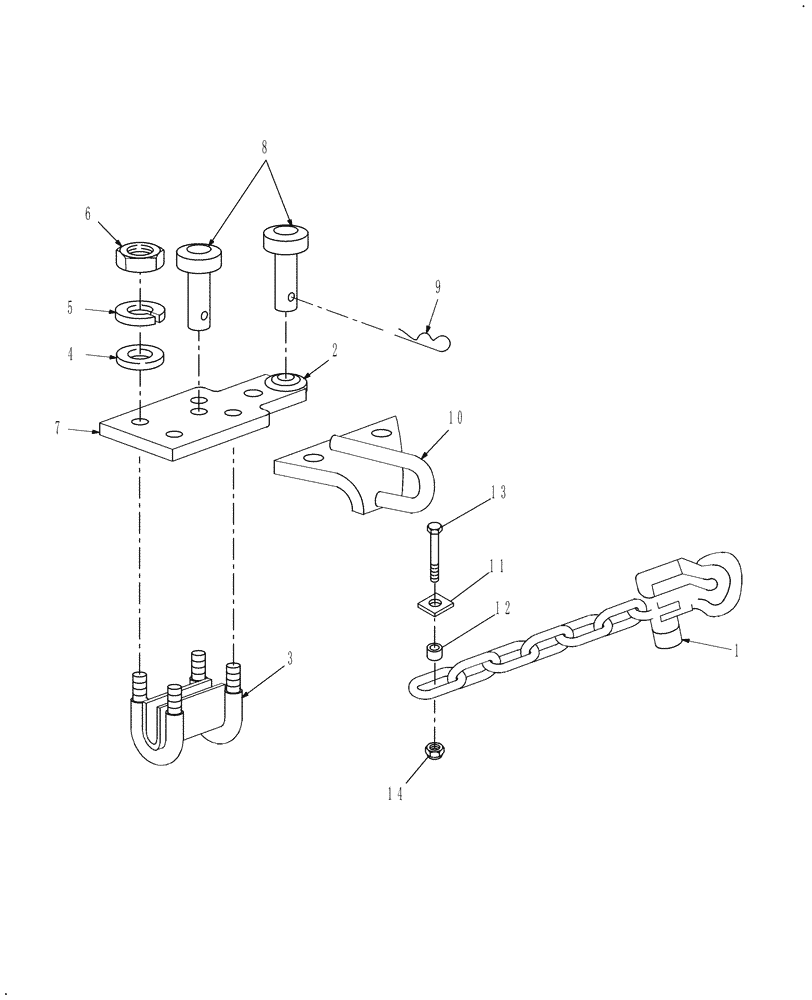

Запчасти Case IH DCX131 (12.01) - HITCH EXTENSION & SAFETY CHAIN (12) - MAIN FRAME

1

850116

CHAIN

1шт.

2

540137

BALL JOINT

(Welding Required)

1шт.

3

86626518

CLAMP

1шт.

4

495-11081

WASHER,3/4", SAE

4шт.

5

492-11075

LOCK WASHER,3/4"

4шт.

6

425-1012

NUT,3/4"-10, G5

4шт.

7

86626517

PLATE

Includes: Ref.2

1шт.

8

846927

PIN

2шт.

9

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

2шт.

10

86626520

ASSEMBLY

Chain Loop

1шт.
