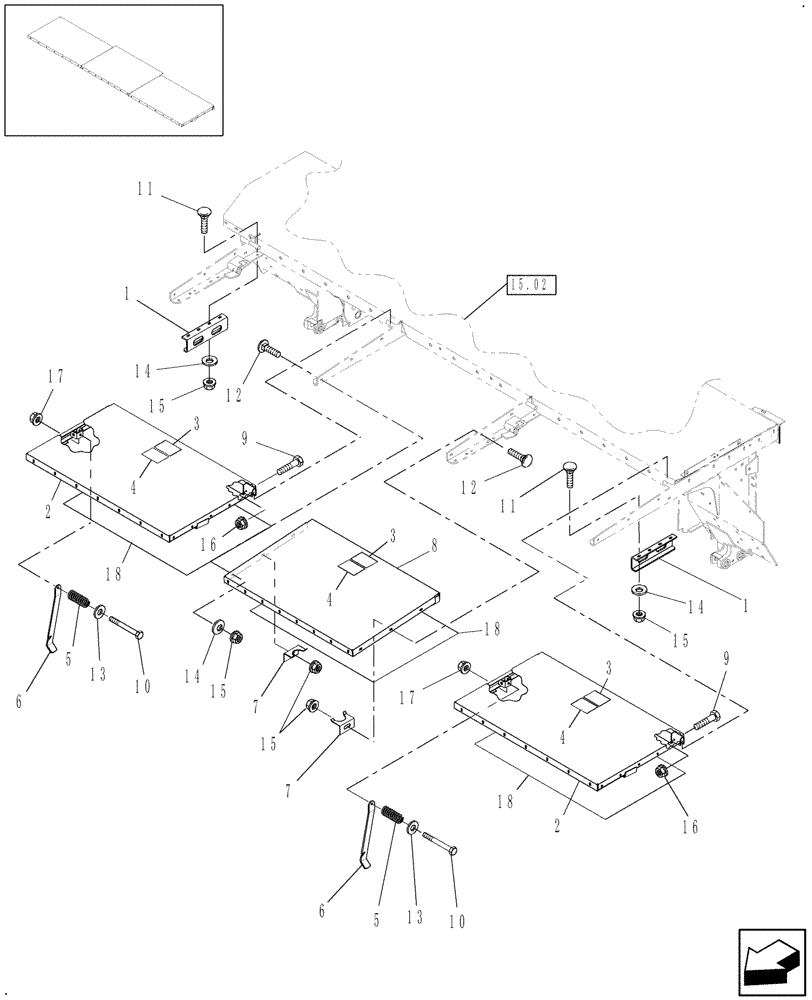

Запчасти Case IH DCX131 (08.07) - SHIELDING, CENTER (08) - SHEET METAL

1

86567361

BRACKET

2шт.

2

86626543

HOOD

Includes Ref. 3 & 4

2шт.

3

86628571

WARNING DECAL

2шт.

4

86611825

WARNING DECAL

2шт.

5

86628837

SPRING,Compression, 23mm OD x 57.15mm L

2шт.

6

86526613

LATCH

2шт.

7

86582727

CLIP

2шт.

8

86626536

COVER ASSY

Includes Ref. 3 & 4

1шт.

9

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

10

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

11

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

12

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

16

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

17

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

18

86582725

LINER

3шт.
