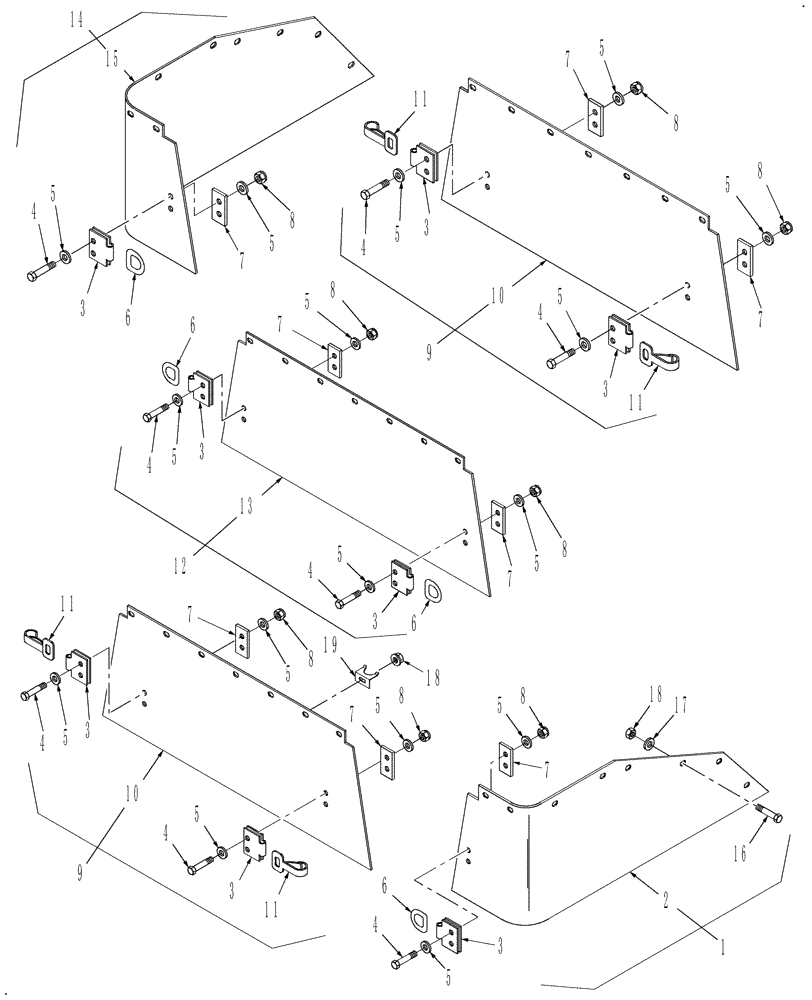

Запчасти Case IH DCX131 (08.04) - SKIRTS, FRONT (08) - SHEET METAL

1

86522267

SKIRT

LH, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Skirt

1шт.

3

9604627

STRAP

8шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

16шт.

5

495-11028

WASHER,1/4", SAE

32шт.

6

9604626

RING

4шт.

7

9604628

STRAP

8шт.

8

280129

NUT,1/4"-20

16шт.

9

86522272

PROTECTING COVER

Includes: Ref. 3 - 5, 7, 8, 10, & 11

2шт.

10

NSS

NOT SOLD SEPARAT

Skirt

2шт.

11

9604631

SPRING CLIP

Snap

4шт.

12

86522269

RUBBER

Center, Includes: Ref. 3 - 8 & 13

1шт.

13

NSS

NOT SOLD SEPARAT

Skirt

1шт.

14

86522266

RUBBER

RH, Includes: Ref. 3 - 8 & 15

1шт.

15

NSS

NOT SOLD SEPARAT

Skirt

1шт.

16

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

38шт.

17

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

38шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

38шт.

19

86582727

CLIP

9шт.
