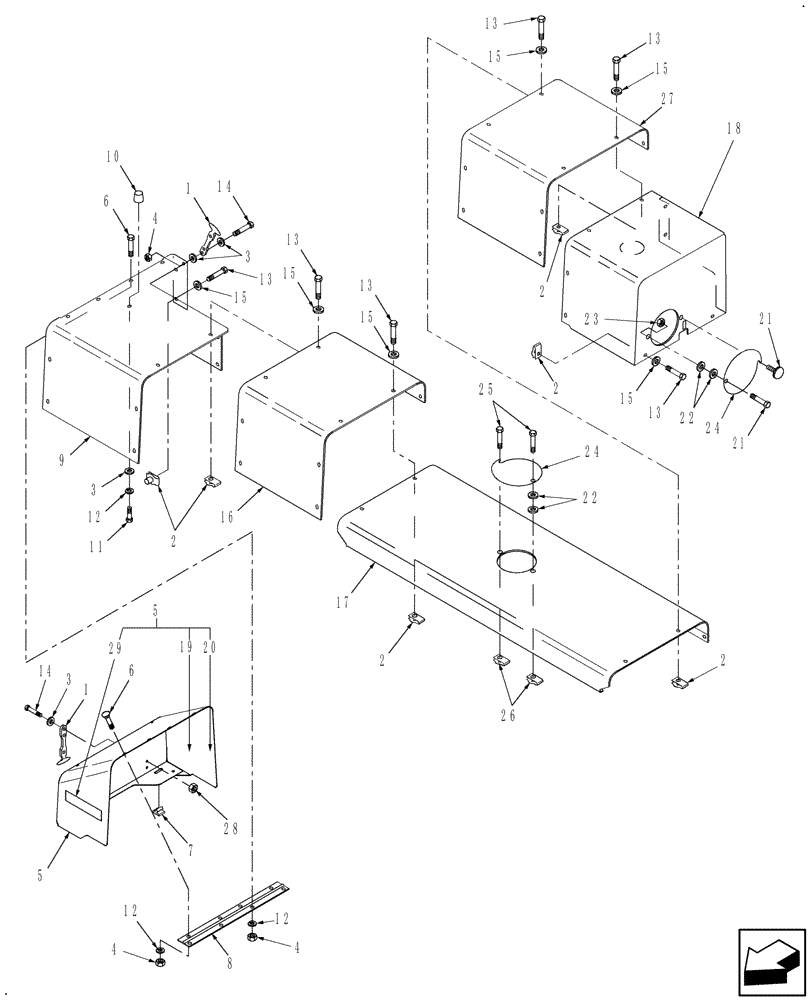

Запчасти Case IH DCX131 (08.03) - SHIELDING, TOP (08) - SHEET METAL

1

86000448

LATCH

1шт.

2

86539811

SPRING NUT

Tinnerman, 3/8" - 16

29шт.

3

495-21031

WASHER,1/4"

7шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

5

86629814

COVER

RH

1шт.

6

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

8шт.

7

216328

BUMPER

2шт.

8

86586942

HINGE

RH, Shield

1шт.

9

86629813

COVER

RH

1шт.

10

224985

BUMPER

1шт.

11

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

13

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

29шт.

14

458-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

29шт.

16

86627251

SHIELD

RH

1шт.

17

86627225

SHIELD

Center Top

1шт.

18

86629808

SHIELD

1шт.

19

86547783

REFLECTOR,Tape, Red Orange

Red/ Orange, Reflector

1шт.

20

86547781

REFLECTOR,RED

Red, Retroreflective

1шт.

21

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

22

215588

WASHER

Nylon

4шт.

23

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

24

86629815

DOOR

2шт.

25

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

9626645

NUT

U-Type, 5/16"-18

2шт.

27

86627250

SHIELD

LH

1шт.

28

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

29

165109

DECAL

Yellow, Retroreflective

1шт.
