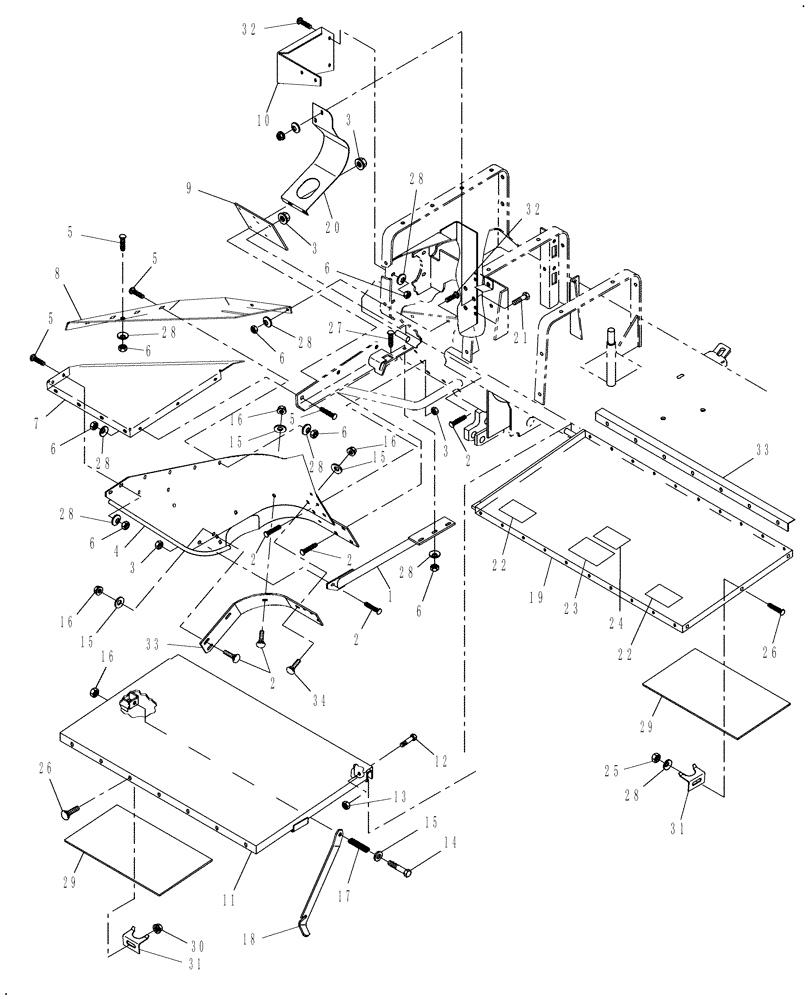

Запчасти Case IH DCX131 (08.02) - SHIELDING, RIGHT SIDE (08) - SHEET METAL

1

86632244

PIPE

1шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

10шт.

3

425-286

FLANGE NUT,Flg, 3/8"-16, G5

10шт.

4

87535097

SHEET

RH

1шт.

4

87047997

SHEET

RH, Start Year: 01-DEC-07

1шт.

5

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

15шт.

6

425-285

FLANGE NUT,Flg, 5/16"-18, G5

24шт.

7

86632224

SUPPORT

RH

1шт.

8

86632225

SHEET

RH

1шт.

8

87051001

SHEET

Top, RH, Start Year: 01-DEC-07

1шт.

9

86631739

PLATE

1шт.

10

87519304

SHIELD

1шт.

11

86626543

HOOD

1шт.

12

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

13

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

15

495-21044

WASHER,3/8"

1шт.

16

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

17

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

18

86526613

LATCH

1шт.

19

86626577

COVER

Includes: Ref. 22, 23, & 24

1шт.

20

86631741

SHIELD

1шт.

21

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

22

86629146

WARNING DECAL

CLOSE SHIELD PRIOR TO -

2шт.

23

86628571

WARNING DECAL

ROTATING CUTTERBAR -

1шт.

24

86611825

WARNING DECAL

WARNING - NO STEP

1шт.

25

231-5345

FLANGE NUT,Flg, 5/16"-18

6шт.

26

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

27

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

28

492-11031

LOCK WASHER,5/16"

30шт.

29

86582725

LINER

Stone Guard

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

31

86582727

CLIP

5шт.

32

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

33

87399537

SUPPORT

, Start Year: 01-DEC-07

1шт.

34

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.
