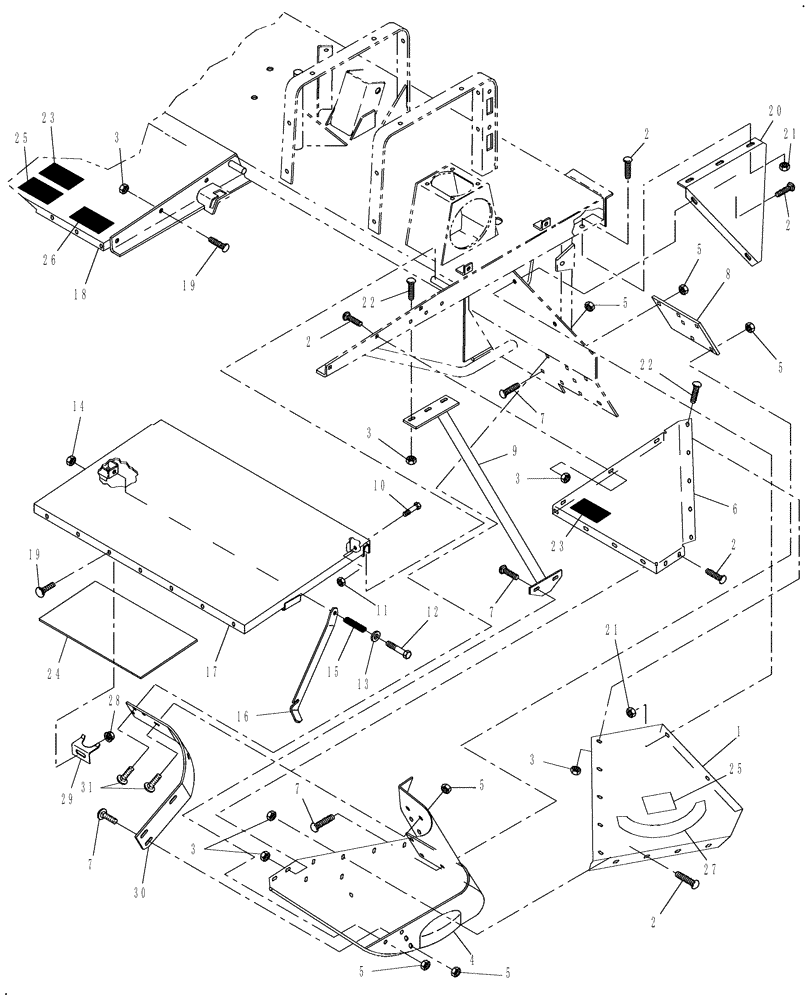

Запчасти Case IH DCX131 (08.01) - SHIELDING, LEFT SIDE (08) - SHEET METAL

1

86631707

SHEET

Top, LH - Includes: (25, 27 & 28 English)

1шт.

1

87047999

SHEET

Top, LH, Includes: (25, 27 & 28), Start Year: 01-DEC-07

1шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

14шт.

3

231-5345

FLANGE NUT,Flg, 5/16"-18

23шт.

4

86627891

SHEET

LH

1шт.

4

87047995

SHEET

LH, Start Year: 01-DEC-07

1шт.

5

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

6

86632223

SUPPORT

LH, Includes: Ref. 23 & 24

1шт.

7

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

8

86631739

PLATE

1шт.

9

86632244

PIPE

1шт.

10

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

11

280129

NUT,1/4"-20

2шт.

12

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

13

495-21044

WASHER,3/8"

1шт.

14

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

15

86628837

SPRING,Compression, 23mm OD x 57.15mm L

1шт.

16

86526613

LATCH

1шт.

17

86626543

HOOD

1шт.

18

86626577

COVER

Includes: Ref. 23, 25, & 26

1шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

20

86627887

BRACE

1шт.

21

425-285

FLANGE NUT,Flg, 5/16"-18, G5

23шт.

22

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

9шт.

23

86611825

WARNING DECAL

WARNING - NO STEP, English

2шт.

23

86614084

WARNING DECAL

NO STEP, French

2шт.

24

86582725

LINER

Stone Guard

1шт.

25

86628571

WARNING DECAL

Stand Clear, English

1шт.

25

86622074

WARNING DECAL

WARNING, French

1шт.

26

86629146

WARNING DECAL

WARNING, Close Shield Prior To - English

2шт.

26

86629148

DECAL

WARNING, Close Shield Prior To - French

2шт.

27

80772110

WARNING DECAL

WARNING, Knife Tip Path, English

1шт.

27

791403

WARNING DECAL

WARNING, Knife Tip Path - French

1шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

29

86582727

CLIP

3шт.

30

87399534

SUPPORT

1шт.

31

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3шт.
