Запчасти Case IH DCX131 (07.03[2]) - HYDRAULIC CYLINDER, SLAVE, MONARCH, AFTER PIN HCA0008152 (07) - HYDRAULICS

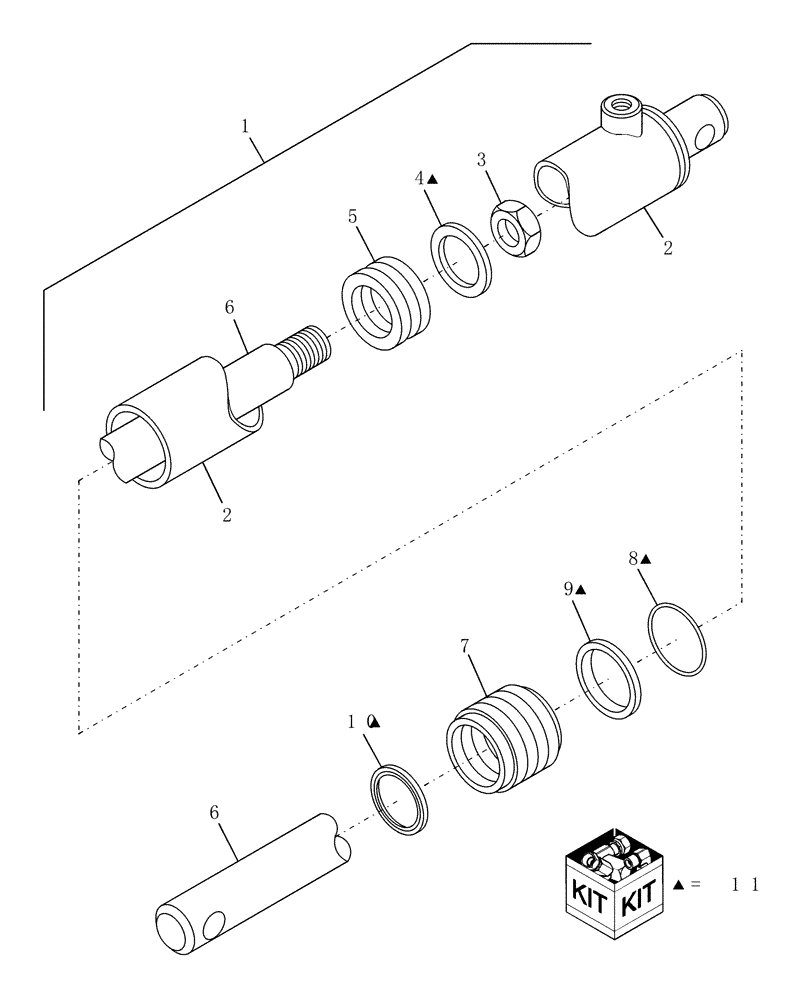

Схема запчастей Case IH DCX131 - (07.03[2]) - HYDRAULIC CYLINDER, SLAVE, MONARCH, AFTER PIN HCA0008152 (07) - HYDRAULICS
1
4
9
5
10
3
7
2
2
6
6
8

Артикул

Название

Примечание

Количество

1

87573687

HYDRAULIC CYLINDER,28.7mm Rod, 251.71mm Stroke

Cylinder, Slave

1шт.

Monarch cylinders are stamped with a date code that starts with the letter "M".

1шт.

1

87573687R

REMAN-HYD CYLINDER

DCX131 AFTER PIN HCA0008152 (8/01-10/08), DCX131F AFTER PIN HCA0008152 (9/07-10/08)

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86553483

SEAL

3 Piece, Piston

1шт.

5

87026074

PISTON

1шт.

6

87574534

PISTON ROD

Rod

1шт.

7

87025433

HEAD

1шт.

8

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

10

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

11

87025444

SEAL KIT

Kit

1шт.

Also Contains Piston Wear Ring; Not Shown Or Serviced Separately

1шт.

Выбрано товаров: 15
