(07.03[1]) - HYDRAULIC CYLINDER, SLAVE, PRIOR TO PIN HCA0008152

Запчасти Case IH DCX131 (07.03[1]) - HYDRAULIC CYLINDER, SLAVE, PRIOR TO PIN HCA0008152 (07) - HYDRAULICS

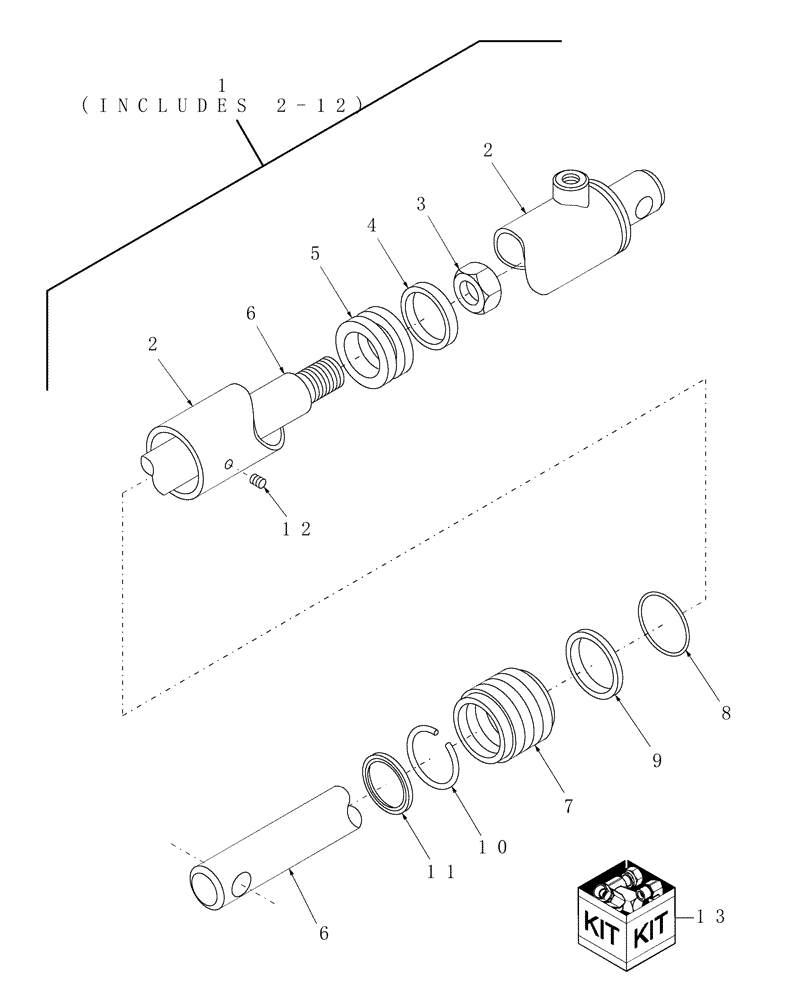

Схема запчастей Case IH DCX131 - (07.03[1]) - HYDRAULIC CYLINDER, SLAVE, PRIOR TO PIN HCA0008152 (07) - HYDRAULICS
11
8
4
9
12
13
1
3
6
7
6
2
2
(includes 2-12)
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86627756

HYDRAULIC CYLINDER

Slave

1шт.

1

87573687R

REMAN-HYD CYLINDER

DCX131 PRIOR TO PIN HCA0008152 (8/01-10/08), Reman for New P/N 86627756

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

771706

SEAL

1шт.

5

9827615

PISTON

1шт.

6

86514213

ROD

1шт.

7

9613952

CYLINDER HEAD

1шт.

8

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

10

512016

SNAP RING

Int, 2.125"

1шт.

11

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

12

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

13

86525304

SEAL KIT

Includes: Ref. 4 & 8 - 11

1шт.
