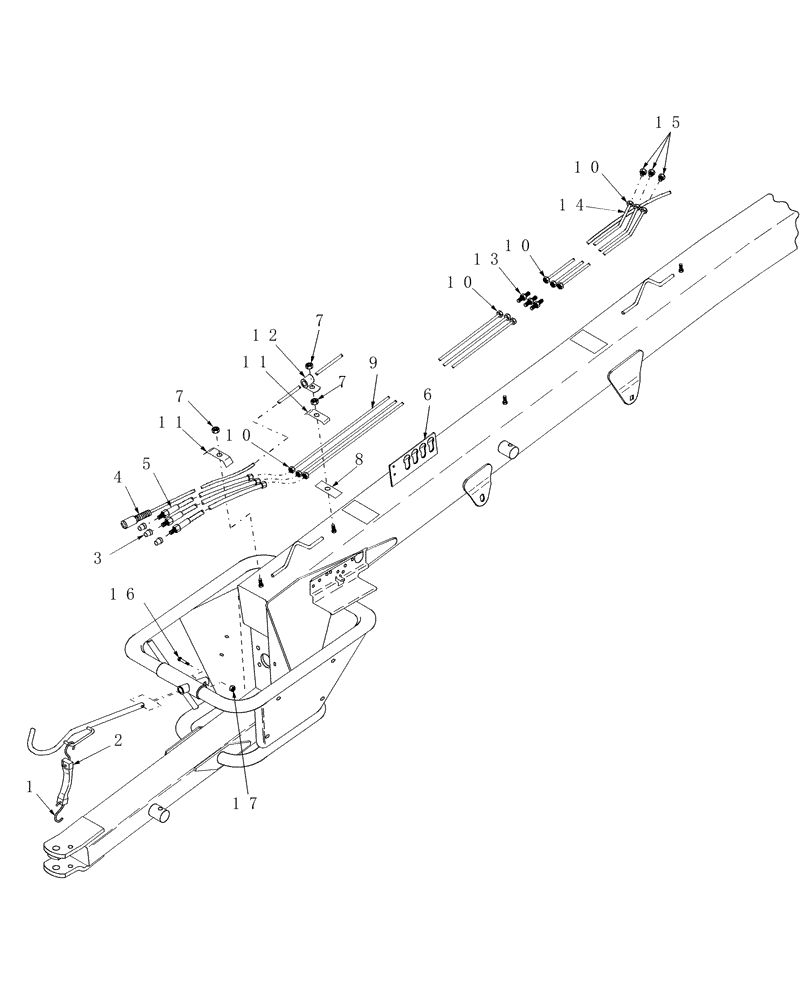

Запчасти Case IH DCX131 (07.01) - TONGUE HYDRAULICS & WIRE HARNESS (07) - HYDRAULICS

1

115680

HOOK

2шт.

2

273672

FASTENER

1шт.

3

116070

CAP

3шт.

4

86560194

WIRE HARNESS

1шт.

5

86539888

HOSE,9.53mm ID x 2489.2mm L

3шт.

6

86564683

SUPPORT

Requires Welding

1шт.

7

231-5346

FLANGE NUT,Flg, 3/8"-16

18шт.

8

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

8шт.

9

86538795

HYD TUBE,12.70 mm OD x 2805 mm L

Includes: Ref. 10

3шт.

10

218-364

SLEEVE,37 Degree, 1/2" Tube

12шт.

10

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

12шт.

11

86571694

CLAMP

9шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

9шт.

13

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3шт.

14

86538796

HYD TUBE,12.70 mm OD x 1855, 46.1 mm L

Includes: Ref. 10

3шт.

15

218-775

PLUG,3/4"-16, 37 Degree

3шт.

16

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

17

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.
