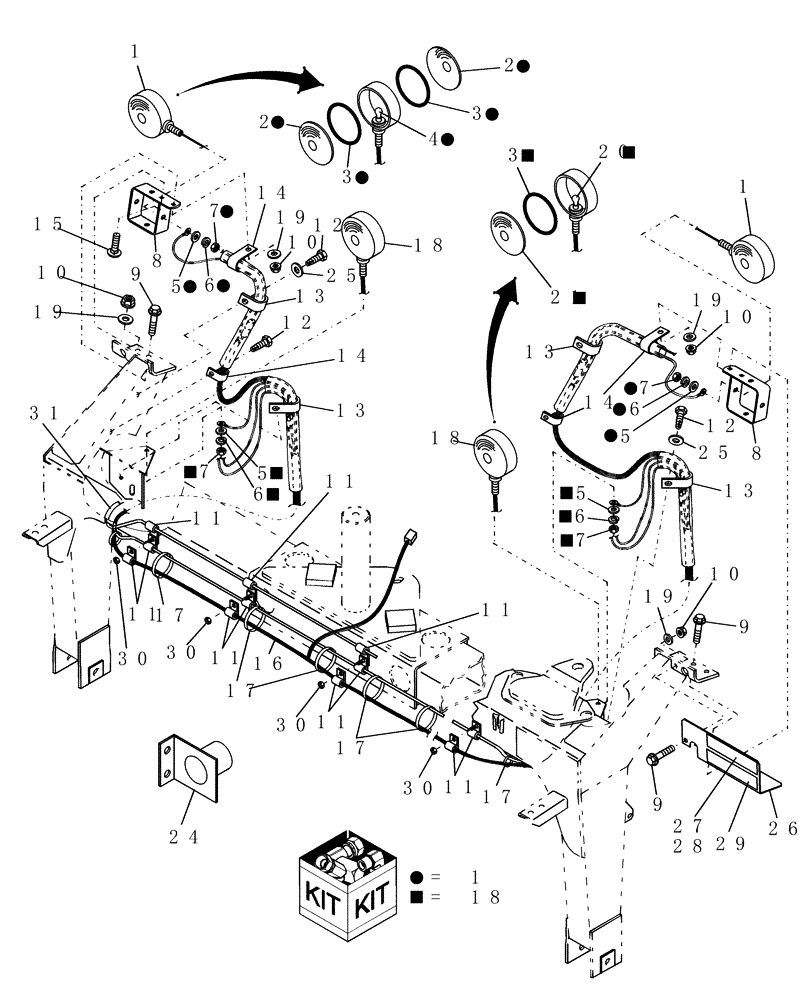

Запчасти Case IH DCX131 (06.01) - AMBER LIGHTS & RED TAIL LIGHTS (06) - ELECTRICAL

1

86621618

WARNING LIGHT

Amber, Includes: Ref. (2) 2, (2) 3, & (1) 4

2шт.

2

86622240

LENS

Amber

4шт.

3

86627435

O-RING,3.484" ID x 0.139" Width

3шт.

4

A41264

BULB,#1156, 12V

2шт.

5

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

M12.7

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

425-118

NUT,1/2"-20, G5

4шт.

8

86631193

BRACKET

2шт.

9

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

10

425-286

FLANGE NUT,Flg, 3/8"-16, G5

3шт.

11

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

12

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

6шт.

13

239859

CLAMP

4шт.

14

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

15

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

16

86560195

WIRE HARNESS

1шт.

17

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

10шт.

18

86621619

WARNING LIGHT

Red, Includes: Ref. 3, 20, & 21

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

T34857

BULB,C6, #1157, 12.8V

2шт.

21

86622241

LENS

Red

2шт.

24

9611467

HOLDER

1шт.

25

495-21031

WASHER,1/4"

4шт.

26

86567387

ANGLE

Includes: Ref. 27, 28, & 29

1шт.

27

86547781

REFLECTOR,RED

Red, Retroreflective

1шт.

28

86547782

REFLECTOR,YELLOW

Yellow, Retroreflective

1шт.

29

86547783

REFLECTOR,Tape, Red Orange

Red-Orange Fluorescent

1шт.

30

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

31

86604516

INSULATOR

Edging

1шт.
