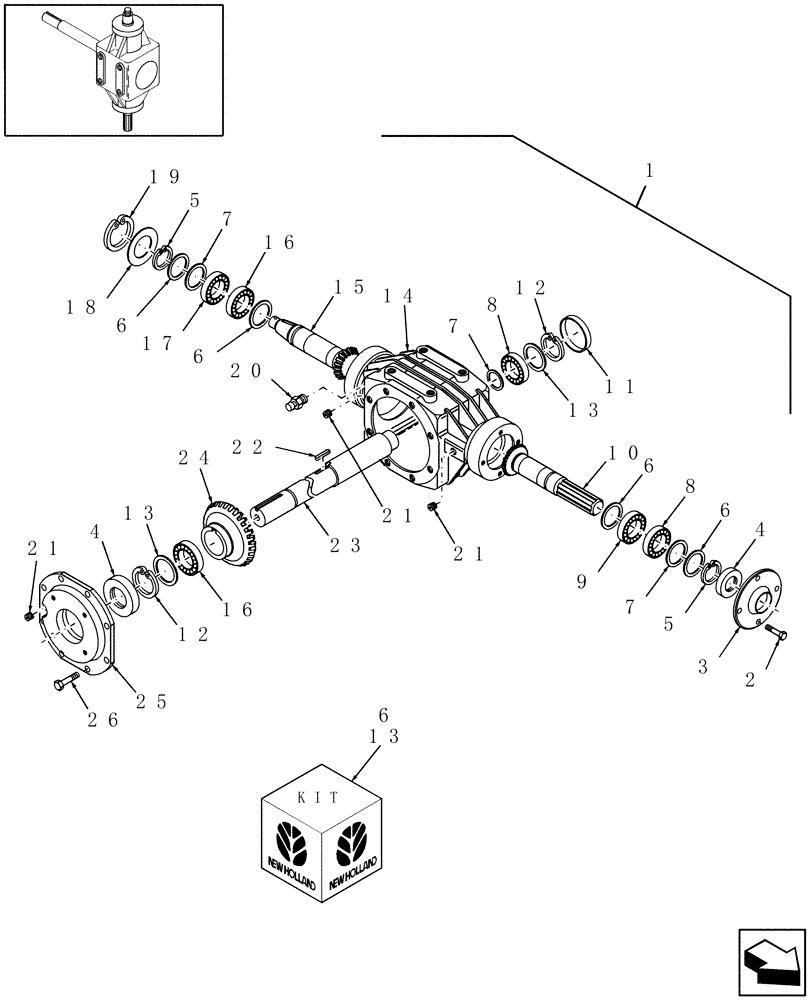

Запчасти Case IH DCX131 (03.04/01) - GEARBOW, BEVEL, FLAIL (03) - MAIN GEARBOX

1

86561235

GEARBOX

Bevel, Includes: Ref. 2 - 26

1шт.

1

86561235R

REMAN-GEARBOX

Bevel

1шт.

1

86561235C

CORE-GEARBOX

Return Number

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

3

86539152

COVER

1шт.

4

86539153

SEAL,40mm ID x 80mm OD x 10mm Thk

2шт.

5

440442

SNAP RING,M40 x 2.5mm Thk, External

2шт.

6

86539215

KIT

Shims

4шт.

7

86539145

SHIM

M2.500 Thk

3шт.

8

301164

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

2шт.

9

86511837

BALL BEARING

M40

1шт.

10

86539151

SHAFT

Pinion

1шт.

11

86539148

CAP

1шт.

12

80300633

SNAP RING,M80, Int

2шт.

13

86539214

SHIM

Shims

2шт.

14

86539146

HOUSING

Casing

1шт.

15

86539147

SHAFT

Pinion

1шт.

16

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

Tapered Roller

2шт.

17

210049

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

18

86539143

COVER

1шт.

19

86539144

SNAP RING

Int, M100

1шт.

20

86539157

BREATHER,3/8" Gas

1шт.

21

86557412

PLUG,3/8" - 19 NPT

3шт.

22

86539158

KEY

M8 x 12 x 30

1шт.

23

86561236

SHAFT

616mm L

1шт.

24

86539154

BEVEL GEAR

Crown, Wheel

1шт.

25

86539156

COVER

1шт.

26

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.
