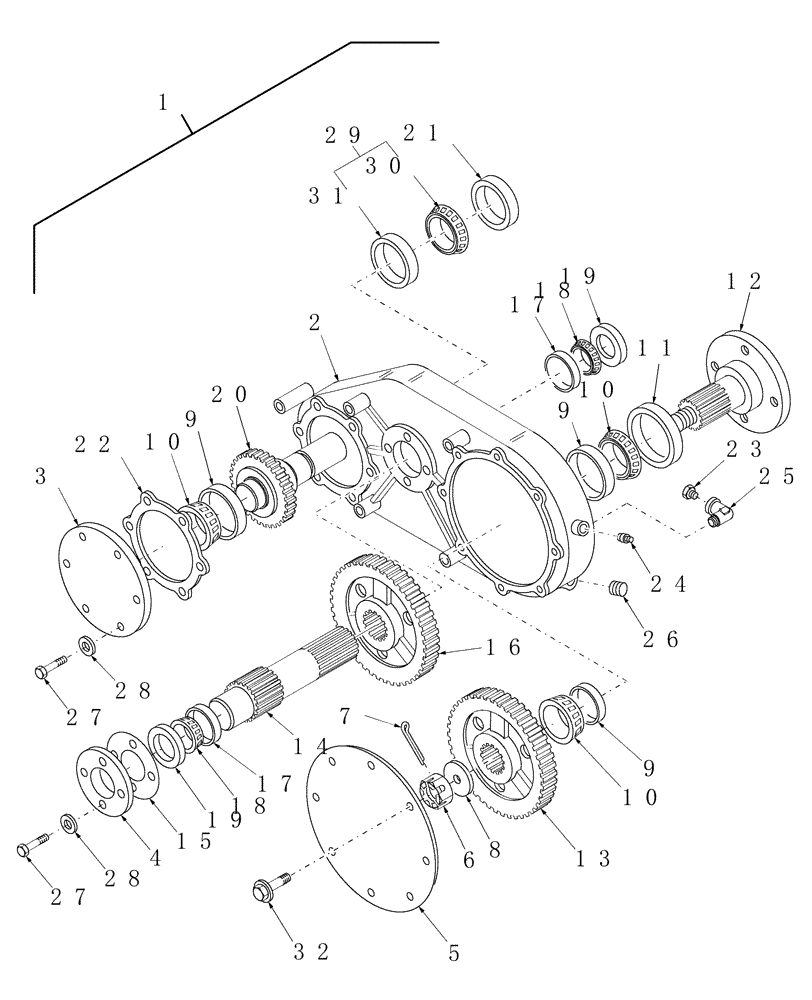

Запчасти Case IH DCX131 (03.03) - GEARBOX, CONDITIONER (03) - MAIN GEARBOX

1

86592075

GEARBOX

Conditioner

1шт.

1

86592075R

REMAN-GEARBOX

Reman Gearbox, DCX131 Pivot Tongue Mower Cond. 8/01 - 10/08

1шт.

1

86592075C

CORE-GEARBOX

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

689421

CAP

1шт.

4

247491

COVER

1шт.

5

86540376

COVER

1шт.

6

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

7

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

8

56867

WASHER

1шт.

9

H433209

BEARING CUP

3шт.

10

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

3шт.

11

694956

SEAL

1шт.

12

9847669

SHAFT

1шт.

13

86603495

DRIVING GEAR

48T

1шт.

14

86524339

SHAFT

1шт.

15

136804

SHIM,.003" Thk

1шт.

15

136803

SHIM,.005" Thk

1шт.

15

136802

SHIM,.0075" Thk

1шт.

16

86603249

GEAR

48T

1шт.

17

651817R1

BEARING CUP

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

2шт.

19

701519

OIL SEAL

2шт.

20

86603453

GEAR

26T

1шт.

21

66807

SEAL,38.1mm ID x 57.26mm OD x 7.92mm Thk

1шт.

22

688989

SHIM,.003" Thk

1шт.

22

688990

SHIM,.005" Thk

1шт.

22

688991

SHIM,.007" Thk

1шт.

22

86608804

SHIM

0.018"

1шт.

22

86608804

SHIM

0.020"

1шт.

23

572820

BREATHER

1шт.

24

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

1шт.

25

86511898

ELBOW

90°, Street, Brass

1шт.

26

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

27

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

29

815801C91

BEARING

1шт.

30

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

1-1/2" ID

1шт.

31

478793R1

BEARING CUP

1шт.

32

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

Not Shown; Used W/ Ref. 32

1шт.
