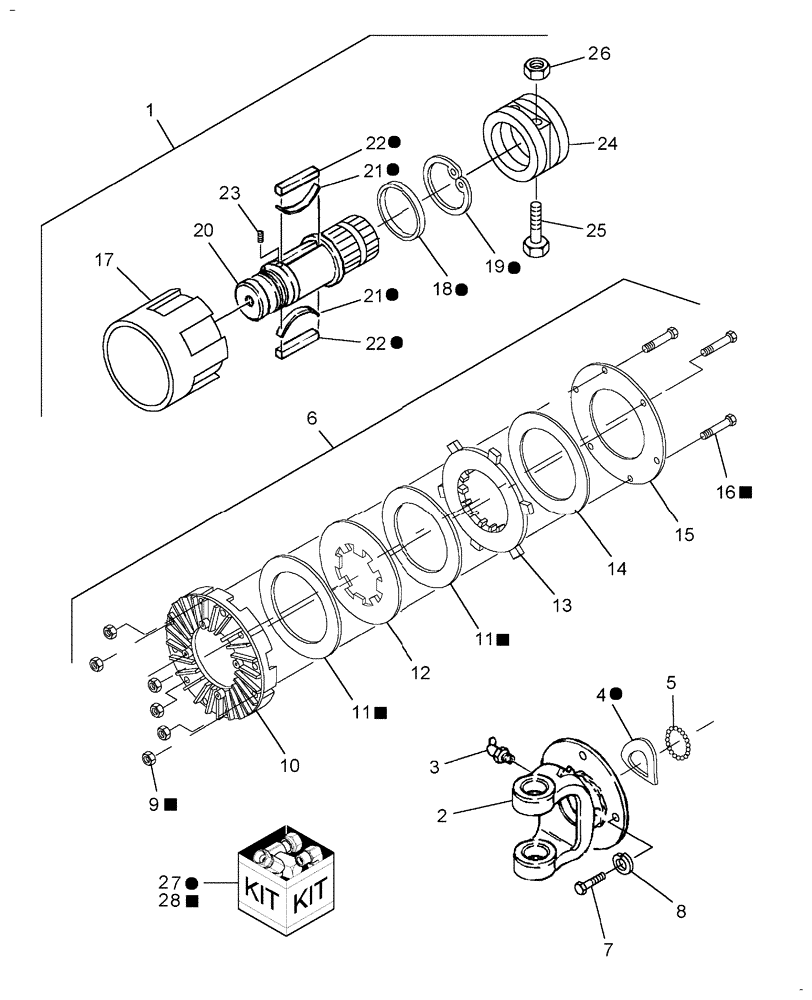

Запчасти Case IH DCX131 (01.06) - COMPACT CLUTCH W/CLAMP & HUB (01) - PTO DRIVE SHAFT

1

0C

ORDER COMPONENTS

Clutch

1шт.

2

86603733

YOKE

Includes: Ref. 3

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

NSS

NOT SOLD SEPARAT

Spring, Wave

1шт.

5

86585468

BALL

31шт.

6

86601367

CLUTCH, PRESSURE PLA,177.8mm OD

Pack, Includes: Ref. 7 - 16

1шт.

7

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

6шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

NSS

NOT SOLD SEPARAT

Disc, Friction, Refer to Ref. 28

2шт.

12

86601371

CLUTCH PLATE

1шт.

13

NSS

NOT SOLD SEPARAT

Plate, Pressure

1шт.

14

86551193

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

Plate, Compression

1шт.

16

426-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 8

6шт.

17

86601370

HUB

Outer

1шт.

18

NSS

NOT SOLD SEPARAT

Washer

1шт.

19

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

20

86601426

HUB

1шт.

21

NSS

NOT SOLD SEPARAT

Spring, Leaf

2шт.

22

NSS

NOT SOLD SEPARAT

Key

2шт.

23

86602307

SET SCREW,5/16" x 18mm

HS, Self-Locking, Cup Pt, G8, 5/16"-18 (Not Shown)

1шт.

24

86598607

HUB

Includes: Ref. 25 & 26

1шт.

25

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

26

232-4148

NUT,1/2"-13, GC

2шт.

27

86572966

REPAIR KIT

Clutch, Overrunning

1шт.

28

86601404

REPAIR KIT

Friction, Repair

1шт.
