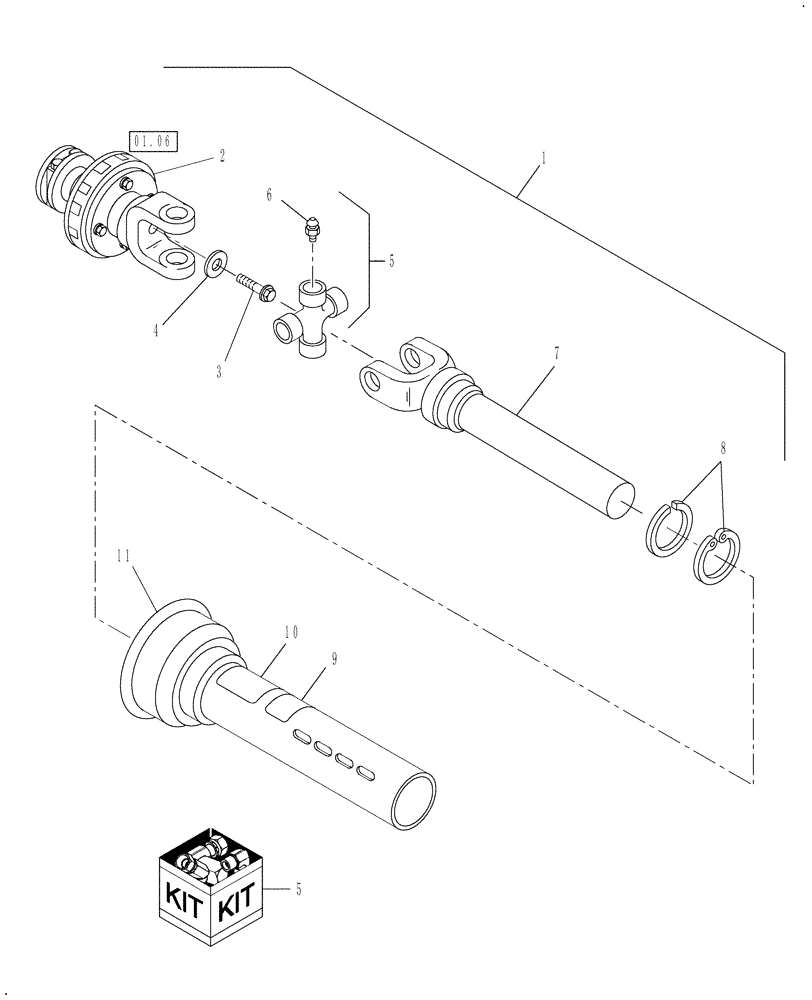

Запчасти Case IH DCX131 (01.04) - SECONDARY PTO W/ CLAMP & HUB ON CLUTCH (01) - PTO DRIVE SHAFT

1

86600824

PTO

Rear Half, Includes: Ref. 2 -11

1шт.

2

0C

ORDER COMPONENTS

Clutch

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

4

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

5

86520896

BEARING ASSY

Cross & Bearing

1шт.

6

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86539639

YOKE

& Shaft

1шт.

8

86505713

NYLON BEARING

Nylon

1шт.

9

849471

DANGER DECAL

Rotating Driveline, English

1шт.

9

849482

DANGER DECAL

Rotating Driveline, French

1шт.

9

9801260

DANGER DECAL

DANGER, Rotating Driveline, Spanish

1шт.

10

86593134

DECAL

Grease Per Hours Shown, English

1шт.

10

86593136

DECAL

Grease Per Hours Shown, French

1шт.

11

86536188

GUARD

Outer, Includes: Ref. 8, 9, & 10

1шт.
