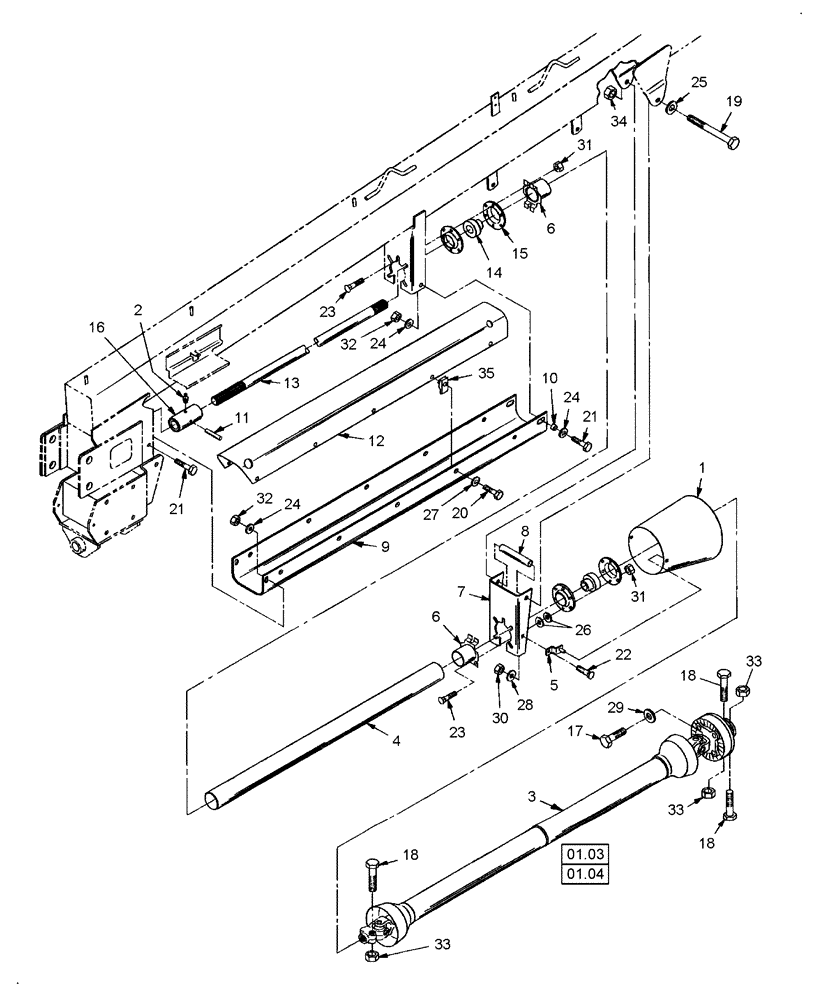

Запчасти Case IH DCX131 (01.03[1]) - SWIVEL TONGUE DRIVE SHAFT (01) - PTO DRIVE SHAFT

1

86532561

SHIELD

1шт.

2

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

3

0C

ORDER COMPONENTS

Secondary PTO

1шт.

4

86579262

SHIELD

1шт.

5

86629976

BRACKET

2шт.

6

86599724

BRACKET

Includes: Foam Tape

2шт.

6

853891

TAPE

Tape, Serial Range: cut-fit

1шт.

7

86629975

CHANNEL

1шт.

8

86541412

SPACER

1шт.

9

86633719

CHANNEL

1шт.

10

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

2шт.

11

435-11040

GROOVED PIN,5/16" x 2 1/2", Type A

1шт.

12

86629973

SHIELD

Front

1шт.

13

86519784

SHAFT

1шт.

Prior to PIN HCA0008001

1шт.

13

86626280

SHAFT

1шт.

From PIN HCA0008001

1шт.

14

86552016

BALL BEARING,38.1mm ID x 80mm OD x 21.01mm W

2шт.

15

86629969

FLANGE

4шт.

16

9624204

COUPLING

1шт.

17

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

18

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

19

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

1шт.

20

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

21

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

5шт.

22

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

23

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

11шт.

24

495-21056

WASHER,1/2"

6шт.

25

495-21019

WASHER,#8

2шт.

26

495-11066

WASHER,5/8", SAE

2шт.

27

492-11031

LOCK WASHER,5/16"

10шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

29

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

30

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

31

425-288

FLANGE NUT,Flg, 1/2"-13, G5

12шт.

32

232-4148

NUT,1/2"-13, GC

4шт.

33

232-4148

NUT,1/2"-13, GC

1шт.

34

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

35

9626645

NUT

5/16 - 18 "U"Type

10шт.
