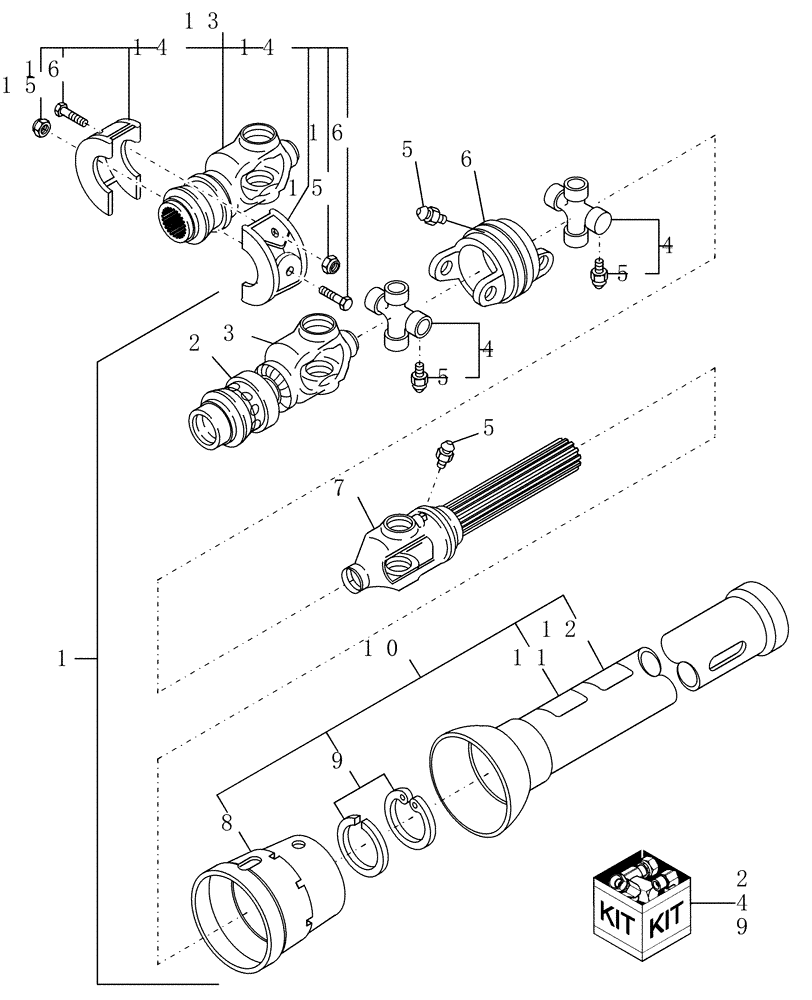

Запчасти Case IH DCX131 (01.01) - PRIMARY PTO, FRONT HALF, NOT FOR SWIVEL HITCH (01) - PTO DRIVE SHAFT

1

86592683

FRONT PTO ASSY

Half, 1-3/8"

1шт.

W/Metal Shield

1шт.

1

87056346

FRONT PTO ASSY

Half, 1-3/8"

1шт.

W/Plastic Shield

1шт.

1

86539411

PTO

Front Half, 1-3/4"

1шт.

W/Metal Shield

1шт.

1

87056348

FRONT PTO ASSY

Half, 1-3/4"

1шт.

W/Plastic Shield

1шт.

2

86534533

REPAIR KIT

Auto-Lok Repair For 1-3/8" Yoke. Includes: (1) Retaining Ring, (1) Collar, (1) Spring, (2) Pawls & (4) Balls & Instructions

1шт.

2

86539714

REPAIR KIT

Auto-Lok Repair For 1-3/4" Yoke. Includes: (1) Retaining Ring, (1) Collar, (1) Spring, (2) Pawls & (4) Balls & Instructions

1шт.

3

86539412

YOKE

Auto-Lok, 1-3/4" - 20 Tooth Spline - (Optional)

1шт.

3

86539636

YOKE

Auto-Lok, 1-3/8" - 21 Tooth Spline.

1шт.

4

86551252

SPIDER

Cross & Bearing, Snap Rings NSS

2шт.

5

88775

LUBE NIPPLE,1/4"-28

Straight

1шт.

6

86520893

HOUSING

CV Center

1шт.

7

86592687

YOKE

& Shaft

1шт.

8

86510899

SHIELD

W/Centralizer

1шт.

Used W/Metal Shields

1шт.

9

86505713

NYLON BEARING

1шт.

Used W/Metal Shields

1шт.

9

87050379

REPAIR KIT

1шт.

Used W/Plastic Shields

1шт.

10

86592686

GUARD

Outer, Metal

1шт.

10

87056312

GUARD ASSY.

Set, Plastic; Includes: Inner & Outer Guards

1шт.

11

849471

DANGER DECAL

1шт.

11

849482

DANGER DECAL

French

1шт.

11

9801260

DANGER DECAL

DANGER - Spanish

1шт.

12

86536635

DECAL

LUBRICATION

1шт.

13

86566886

YOKE

CV Clamp, Includes: Ref. 14

1шт.

Not Included In PTO Front Half, Order Separately

1шт.

14

700712475

CLAMP

Hub

1шт.

15

232-4148

NUT,1/2"-13, GC

2шт.

16

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.
