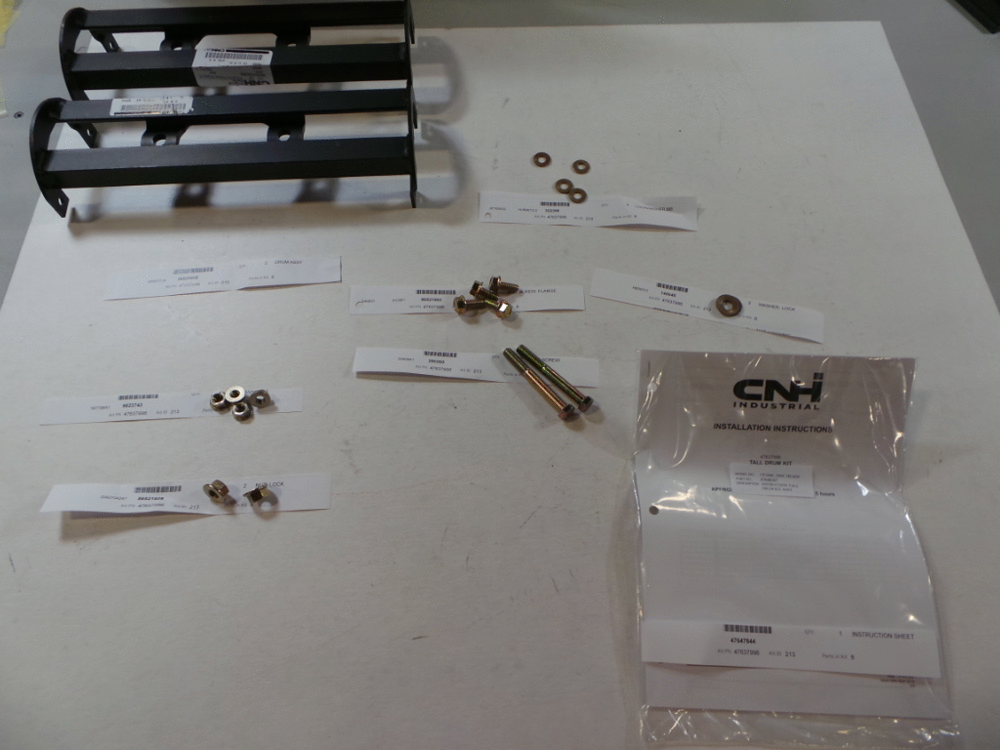

Запчасти Case IH DCX131 (18.08) - KIT TALL DRUM (18) - ACCESSORIES

1

47637996

KIT

Includes 2 - 9

1шт.

2

47647844

INSTRUCTION

1шт.

3

86629688

DRUM

2шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

5

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

6

280260

BOLT,Hex, 3/8" - 16 x 3", Gr 8

2шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

8

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

9

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.
