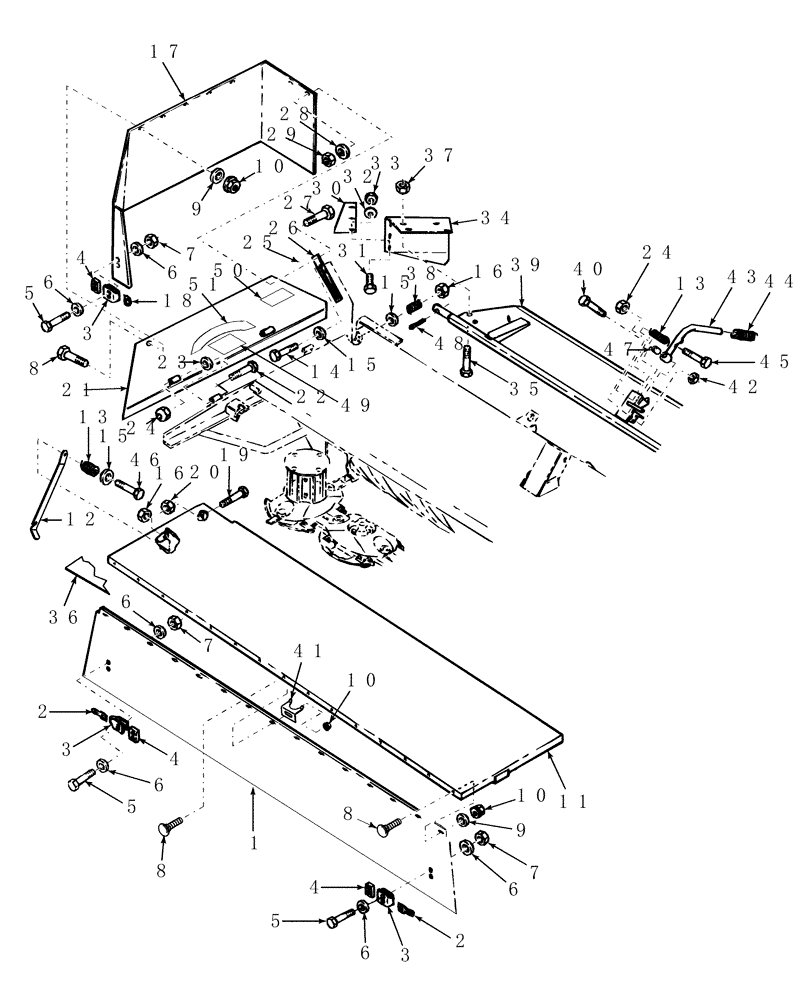

Запчасти Case IH DCX101 (90.118.02) - SHIELDING, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86503932

SKIRT

Center, Rubber Includes: Ref. 2 - 7

1шт.

2

9604631

SPRING CLIP

2шт.

3

9604627

STRAP

3шт.

4

9604628

STRAP

Back-Up

3шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

6

495-11028

WASHER,1/4", SAE

12шт.

7

280129

NUT,1/4"-20

6шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

28шт.

9

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

28шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

28шт.

11

86627177

HOOD

1шт.

12

86526613

LATCH

1шт.

13

86628837

SPRING,Compression, 23mm OD x 57.15mm L

2шт.

14

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

15

495-21044

WASHER,3/8"

3шт.

16

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

17

86503931

SKIRT

Right Hand, Rubber Includes: Ref. 3 - 7 & 18

1шт.

18

9604626

RING

1шт.

19

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

20

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

21

86639644

SHIELD

Includes: Decals, Ref. 49, 50, & 51

1шт.

22

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

23

685896

WASHER

Nylon, 1/2"

2шт.

24

86521610

FLANGE NUT,Flg, 1/2"-13

3шт.

25

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

1шт.

26

86627069

STRAP

1шт.

27

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

28

495-21038

WASHER,5/16"

1шт.

29

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

30

86506232

DEFLECTOR

2шт.

31

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

6шт.

32

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

33

425-104

NUT,1/4"-20, Cl 5

6шт.

34

86639654

DEFLECTOR

Right Hand

1шт.

35

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

36

86583511

SHEET,Reprocessed HDPE

Stone Guard

1шт.

37

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

38

276222

SPRING

1шт.

39

86639650

GATE ASSY

1шт.

40

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

41

86582727

CLIP

7шт.

42

425-288

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

43

86639636

HANDLE

1шт.

44

185350

HANDLE GRIP

1шт.

45

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

46

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

47

285505

SPACER

1шт.

48

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

49

86628571

WARNING DECAL

1шт.

50

86611825

WARNING DECAL

Warning

1шт.

51

80772110

WARNING DECAL

1шт.
