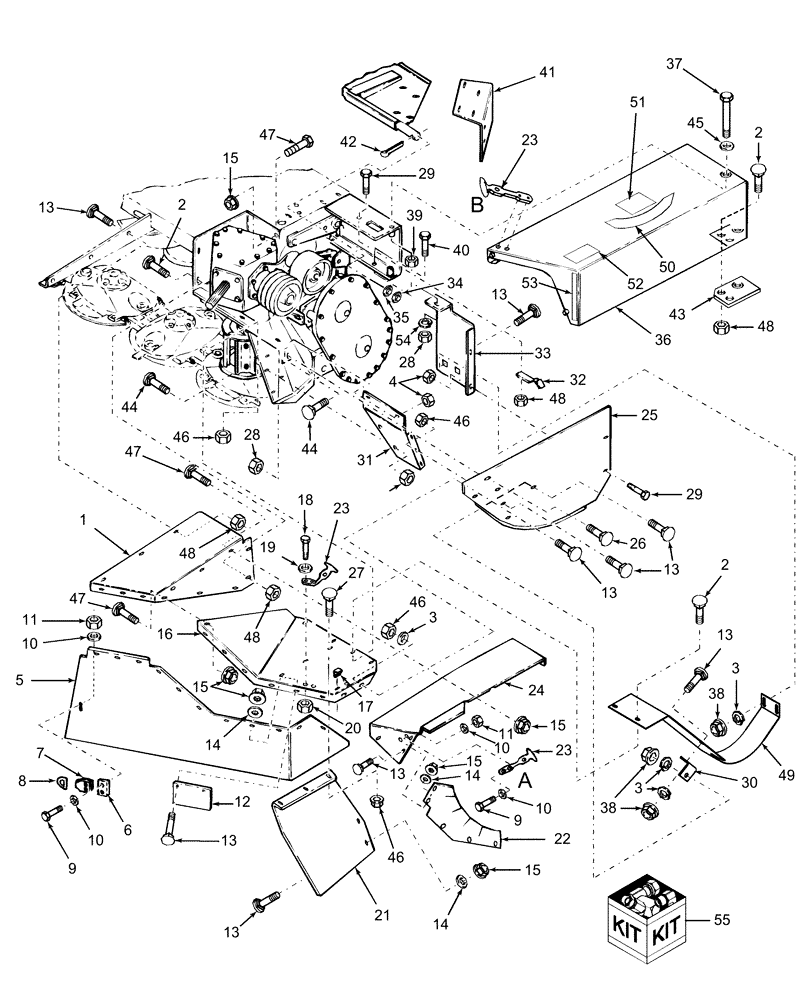

Запчасти Case IH DCX101 (90.118.01) - SHIELDING, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86639656

COVER

1шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

5

86503933

SKIRT

Rubber, Left Hand, Includes: Ref. 6 - 11

1шт.

6

9604628

STRAP

Back-Up

1шт.

7

9604627

STRAP

1шт.

8

9604626

RING

1шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

10

495-11028

WASHER,1/4", SAE

6шт.

11

280129

NUT,1/4"-20

7шт.

12

86627188

PLATE

Includes: Decal 86604890

1шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

31шт.

14

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

31шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

31шт.

16

86639658

SHIELD

Left Hand

1шт.

17

216328

BUMPER

1шт.

18

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

19

495-21031

WASHER,1/4"

4шт.

20

280129

NUT,1/4"-20

4шт.

21

86504855

CURTAIN

Rubber

1шт.

22

87369972

FLAP

Rubber; See Also: Ref. 55

1шт.

23

86000448

LATCH

2шт.

24

87369980

SHIELD

See Also: Ref. 55

1шт.

Prior To 10/06

1шт.

24

87545512

SPLASH SHIELD

Shield; See Also: Ref. 55

1шт.

From 10/06

1шт.

25

86627067

SHEET ASSY.

Left Hand

1шт.

26

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

27

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

3шт.

28

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

29

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

30

86639635

ANGLE

1шт.

31

86639637

SHIELD

1шт.

32

86639634

SPRING

1шт.

33

86639646

SUPPORT

1шт.

34

214539

WASHER,34.9mm ID x 50.8mm OD x 0.51mm Thk

1шт.

35

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

36

86626515

COVER

W/ Decals

1шт.

Prior To 10/06

1шт.

36

87545529

SPLASH SHIELD

Cover, W/Decals

1шт.

From 10/06

1шт.

37

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

38

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

39

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

40

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

41

86639652

DEFLECTOR

Left Hand

1шт.

42

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

43

86627071

BRACKET

Flat

1шт.

44

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

45

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

47

271288

BOLT,Hex Serr, 5/16" - 18 x 5/8", 5SPL, Full Thd

6шт.

48

425-286

FLANGE NUT,Flg, 3/8"-16, G5

8шт.

49

86639633

SHIELD

Belt

1шт.

50

80772110

WARNING DECAL

Knife Tip

1шт.

51

86628571

WARNING DECAL

1шт.

52

86611825

WARNING DECAL

Warning

1шт.

53

86547782

REFLECTOR,YELLOW

Yellow Reflective

1шт.

54

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

55

87373224

KIT

Shield; Includes: Ref.s 22, 24, & Instructions

1шт.
