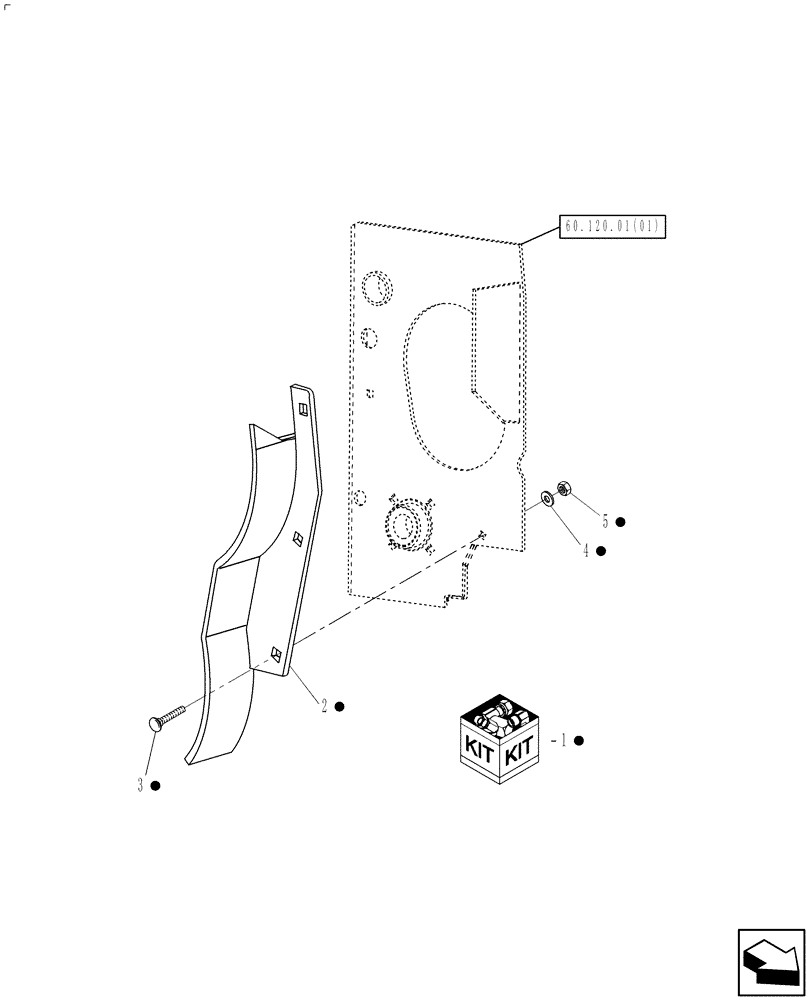

Запчасти Case IH DCX101 (60.120.02) - KIT, ROLL DEFLECTOR (60) - PRODUCT FEEDING

1

84164009

KIT

Roll Deflector; Includes: Ref.s 2 Thru 5

1шт.

2

NSS

NOT SOLD SEPARAT

Deflector

1шт.

3

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

5

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

3шт.
