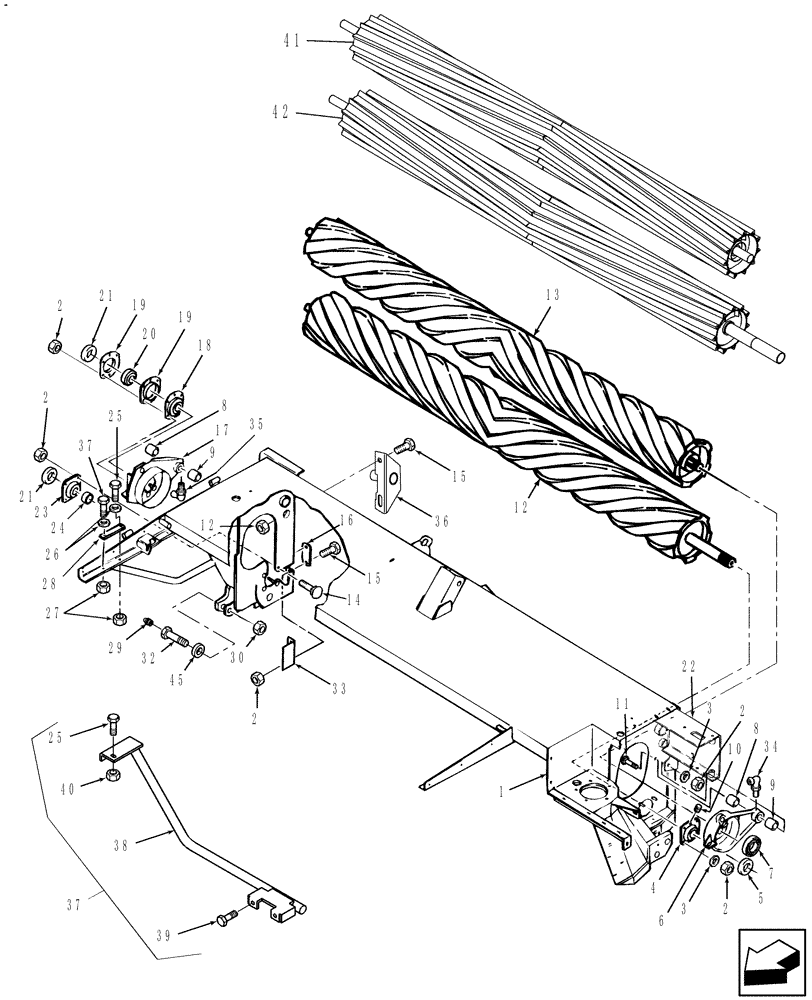

Запчасти Case IH DCX101 (60.120.01[02]) - CHEVRON CONDITIONING ROLLS (60) - PRODUCT FEEDING

1

84172023

FRAME

1шт.

2

86521607

FLANGE NUT,Flg, 1/2"-13, G5

16шт.

3

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

4

86603185

BEARING ASSY

W/Bearing

1шт.

4

80049633

BALL BEARING,44.45mm ID x 85mm OD x 19mm W

1шт.

5

45631

COLLAR

1шт.

6

87042108

BEARING ASSY

Includes: Ref. 7 & 8

1шт.

7

694444

BALL BEARING,34.95mm Hex x 80mm OD x 36.51mm W

1шт.

8

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

2шт.

9

9849929

SPACER

2шт.

10

788938

PLUG

1/4"-28

1шт.

11

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

12

86519717

ROLLER

Lower, Chevron Rubber

1шт.

13

86520150

ROLLER

Upper, Chevron Rubber

1шт.

14

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

15

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

16

87029857

LOCKING TAB

Upper Brace

1шт.

17

87055307

ARM

1шт.

18

86633047

SHROUD

1шт.

19

86629969

FLANGE

2шт.

20

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

21

45393

COLLAR

2шт.

22

86515286

CHANNEL

(Welding Required)

1шт.

23

86573043

BEARING ASSY

W/Housing, Requires Ref. 24

1шт.

24

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

1шт.

25

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

27

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.

28

849495

RUBBER PAD

2шт.

29

87414

LUBE NIPPLE,1/4" - 28

4шт.

30

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

31

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

32

86571960

BOLT

4шт.

32

87721979

BOLT

, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

33

86631049

SHIELD

1шт.

34

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

35

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

36

87026978

PIN

1шт.

37

86603195

KIT

Viney Crop Guide

1шт.

38

86519350

GUIDE

1шт.

39

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

40

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

41

84294045

ROLL

Steel, Upper Chevron, Start Year: 01-APR-10

1шт.

42

84294042

ROLL

Steel, Lower Chevron, Start Year: 01-APR-10

1шт.
