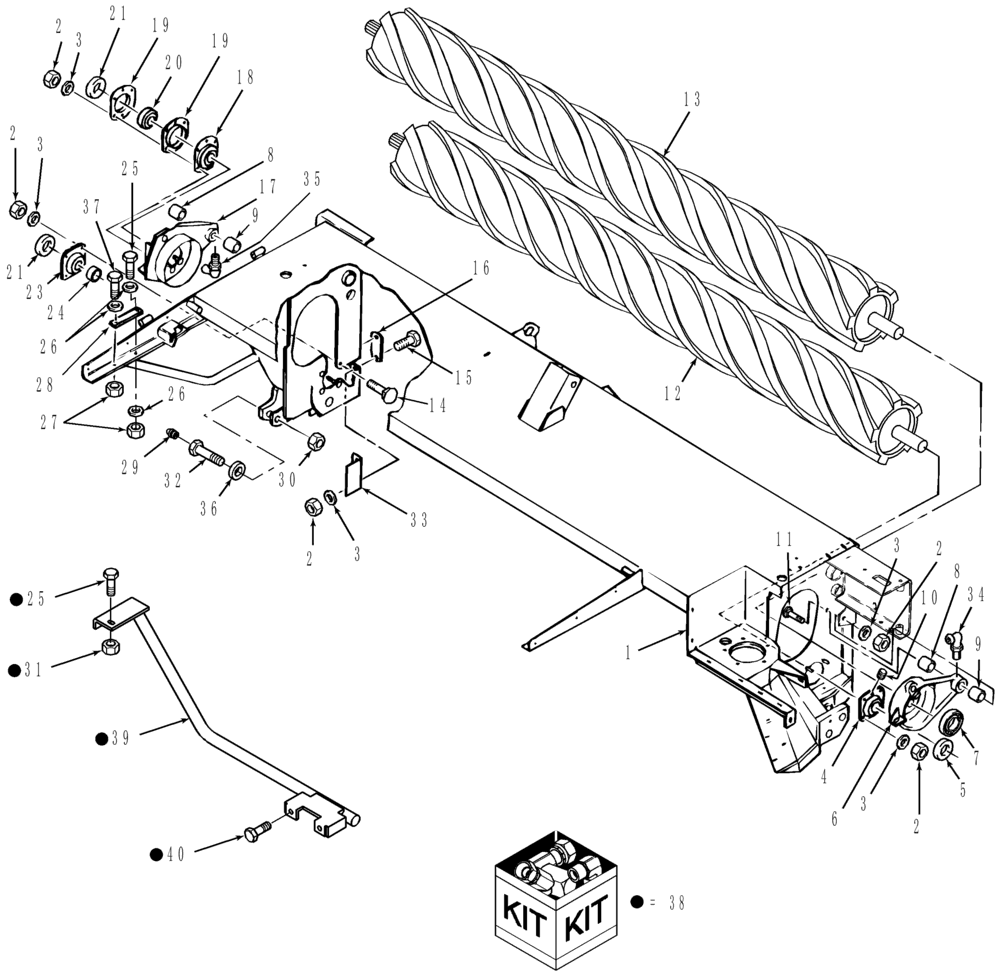

Запчасти Case IH DCX101 (60.120.01[01]) - HEADER & CONDITIONING ROLLS (60) - PRODUCT FEEDING

1

86705057

HEAD ASSY.

1шт.

On Units Built Prior To HCA0006521 , Must Also Replace RH Roll Arm & Torsion Tube; See Fig.58.102.03

1шт.

2

425-288

FLANGE NUT,Flg, 1/2"-13, G5

16шт.

3

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

18шт.

4

86603185

BEARING ASSY

Includes: Bearing

1шт.

4

826936C91

BEARING

1шт.

5

582816R11

COLLAR

1шт.

6

86631111

BEARING ASSY

Bearing; Includes: Ref. 7 & 8

1шт.

Prior To PIN HCA0006354

1шт.

6

87042108

BEARING ASSY

Bearing; Includes: Ref. 7 & 8

1шт.

From PIN HCA0006354

1шт.

7

694444

BALL BEARING,34.95mm Hex x 80mm OD x 36.51mm W

1шт.

8

86540342

BUSHING,30.15mm ID x 36.41mm OD x 19.05mm L

2шт.

9

9849929

SPACER

2шт.

10

788938

PLUG

1/4"-28

1шт.

11

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

12

86610320

ROLL

Lower, Spiral Steel

1шт.

Subbing To Chevron and Both Upper and Lower Rolls Need To Be Chevron To Work

1шт.

When Using Steel Rolls, Both Rolls Must Be Steel

1шт.

12

86610944

ROLLER ASSY.

Spiral Rubber, Upper

1шт.

Subbing To Chevron and Both Upper and Lower Rolls Need To Be Chevron To Work

1шт.

When Using Rubber Rolls, Both Rolls Must Be Rubber

1шт.

13

86610947

ROLLER ASSY.

Spiral Rubber, Lower

1шт.

Subbing To Chevron and Both Upper and Lower Rolls Need To Be Chevron To Work

1шт.

When Using Rubber Rolls, Both Rolls Must Be Rubber

1шт.

13

86610318

ROLL

Upper, Spiral Steel

2шт.

Subbing To Chevron and Both Upper and Lower Rolls Need To Be Chevron To Work

1шт.

When Using Steel Rolls, Both Rolls Must Be Steel

1шт.

14

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

15

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

16

48324

PLATE

Upper Brace

1шт.

17

86639603

PIVOTING ARM

Roll, Includes: Ref. 8

1шт.

Prior To PIN HCA0006354

1шт.

17

87055307

ARM

Roll; Includes: Ref. 8

1шт.

Does not have ring that inserts into roll as did prior designs

1шт.

From PIN HCA0006354

1шт.

18

86633047

SHROUD

1шт.

19

86629969

FLANGE

2шт.

20

B92630

BEARING

1шт.

21

45393

COLLAR

2шт.

22

Not Used

1шт.

23

86573043

BEARING ASSY

1шт.

Requires Ref. 24, Includes (1) Ref. 20

1шт.

24

86573045

SPACER,34.6mm ID x 75.6mm OD x 33.8mm L

1шт.

25

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

26

495-21038

WASHER,5/16"

6шт.

27

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.

28

241578A1

FLANGE

2шт.

29

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

29

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Used W/ Ref.32

4шт.

30

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

31

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

32

86571960

BOLT

4шт.

32

87721979

BOLT

, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

33

86631049

SHIELD

1шт.

34

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

35

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

36

365820

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

37

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

38

86636911

KIT

Viney Crop Guide

1шт.

Includes: Ref. 25, 29, 31, 39, 40, & Instructions

1шт.

39

NSS

NOT SOLD SEPARAT

RH

1шт.

40

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.
