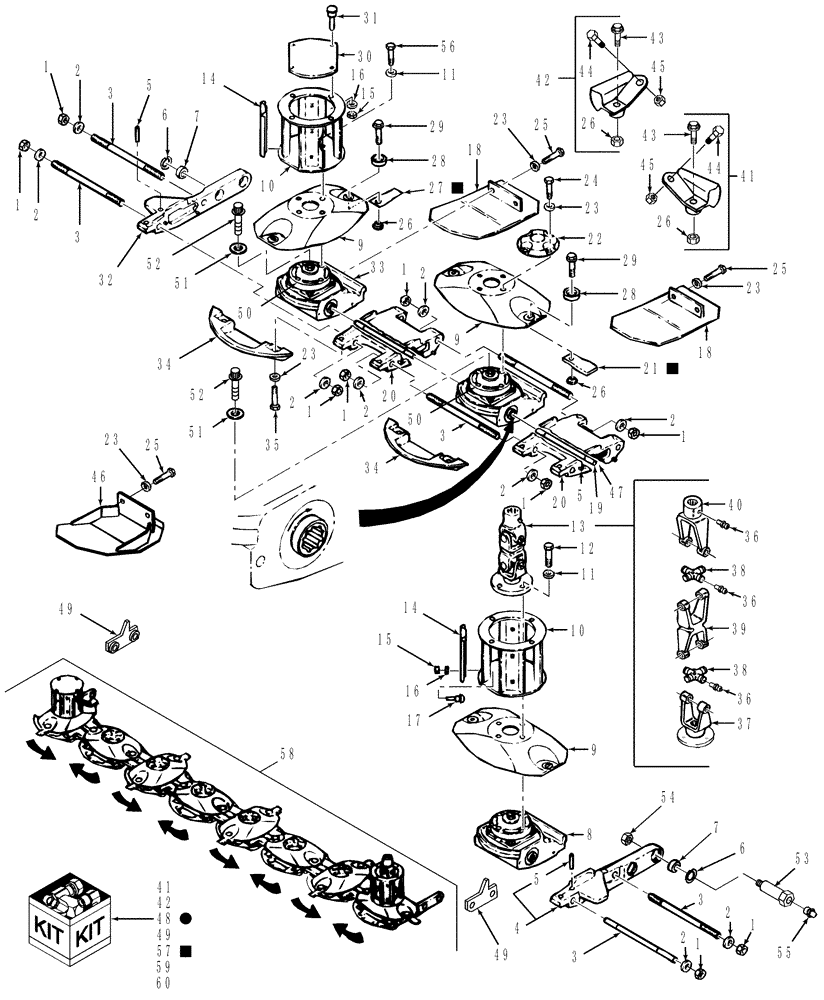

Запчасти Case IH DCX101 (58.110.01) - CUTTERBAR (58) - ATTACHMENTS/HEADERS

1

429-1012

NUT,3/4"-10, G8

32шт.

2

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

32шт.

Prior To PIN HCA0006166

1шт.

2

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

32шт.

From PIN HCA0006166

1шт.

3

86501934

THREADED ROD

3/4" x 12-13/64"; Services Both Partially and Fully-Threaded Rods

16шт.

4

86640565

ARM

LH

1шт.

5

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

Heat Treated, 3/8" x 3/4"

30шт.

6

100-21162

SNAP RING,1.625", Int, #162

4шт.

7

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

8

0C

ORDER COMPONENTS

Module, Control, CW, Refer to Fig. 58.110.02

4шт.

9

87646406

DISC

8шт.

9

87528245

KIT

CW Crop Lifter

1шт.

9

87528249

KIT

CCW Crop Lifter

1шт.

10

86634229

DRUM

2шт.

Prior To PIN HCA0006354

1шт.

10

87040772

DRUM

2шт.

From PIN HCA0006354

1шт.

11

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

12

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

13

9827474

PTO SHAFT

1шт.

Prior To PIN HCA0006166

1шт.

13

87032038

PTO SHAFT

1шт.

Antiwrap component

1шт.

From PIN HCA0006166

1шт.

14

86633750

WEAR STRIP

8шт.

15

425-286

FLANGE NUT,Flg, 3/8"-16, G5

20шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

17

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

16шт.

18

86572263

SKID/SHOE

[Welded Shoe], See Figure Note

8шт.

Prior To MY 2006

1шт.

18

87047426

SKID/SHOE

[Formed Shoe], See Figure Note

8шт.

From MY 2006

1шт.

18

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

8шт.

19

86519042

SHAFT

L = 248mm

7шт.

20

86506032

SPACER

Includes: (4) Ref. 5

7шт.

21

9847683

BLADE,Knife CW

7° Twist, CW

8шт.

21

86621872

BLADE

CW, 14° Twist

8шт.

21

86532078

KNIFE

V

16шт.

21

87029587

BLADE

CW, Over-serrated, 14° Twist

8шт.

22

9828165

CAP

See Fig. 58.110.03, Ref. 10

6шт.

23

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

1шт.

24

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

24шт.

25

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

26

87725066

NUT

Knife

16шт.

27

9847684

BLADE,Knife CCW

Blade, 7° Twist, CCW

8шт.

27

86621873

BLADE

CCW, 14° Twist

8шт.

27

86532078

KNIFE

V

16шт.

27

87029588

BLADE

CCW, Over-serrated, 14° Twist

8шт.

28

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 21 & (10) 14° CCW Blades, Ref 27

1шт.

28

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 21 & (16) 14° CCW Blades, Ref 27

1шт.

28

86510384

CAP

Bolt Protector

1шт.

29

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

Knife Bolt with lifters

32шт.

30

86631895

COVER

1шт.

31

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

32

86631408

ARM

RH

1шт.

33

0C

ORDER COMPONENTS

Module, Control, CCW,Refer to Fig. 58.110.02

4шт.

34

86565383

GUARD

Stone, See Figure Note

8шт.

Prior To MY 2006

1шт.

34

87047845

STONEGUARD

Guard, See Figure Note

8шт.

From MY 2006

1шт.

35

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

16шт.

36

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

3шт.

37

86585339

YOKE

& Plate

1шт.

38

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

Cross & Bearing

2шт.

39

86515564

YOKE

Double

1шт.

40

86515565

YOKE

1шт.

Prior To PIN HCA0006166

1шт.

40

86623800

YOKE

1шт.

Antiwrap component

1шт.

Component of 87032038

1шт.

From PIN HCA0006166

1шт.

41

87040840

KIT

Lifter, CW, Includes: (2) Ref. 26, (4) Ref.29, (2) 45, (2) CW Lifters and Instructions

4шт.

42

87040841

KIT

Lifter, CCW, Includes: (2) Ref. 26, (4) Ref.29, (2) 45, (2) CCW Lifters and Instructions

4шт.

43

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

16шт.

44

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

16шт.

44

87040886

BOLT

Flg, Self-Locking, G8, 1/2"-13 x 1-1/4"

16шт.

Replaces 86515925 in kits 87040840 & 87040841

1шт.

45

86544265

FLANGE NUT,Flg, 1/2"-13, G8

Flg, G8, 1/2"-13

16шт.

46

86630488

SHOE

High Skid

8шт.

47

132096A1

GREASE

14 oz. Cartridge

1шт.

48

715289026

DIA KIT, HARVESTER

Hi Stub, Includes: (8) Ref. 46 & Instructions

1шт.

49

86565127

KIT

4шт.

50

86629692

HUB

8шт.

51

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

8шт.

52

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

8шт.

53

86571960

BOLT

4шт.

53

87721979

BOLT

, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

54

86557260

SPECIAL NUT

4шт.

55

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

56

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

57

86624751

KNIFE SET

1шт.

57

86624752

KNIFE SET

1шт.

58

87039897

CUTTERBAR

1шт.

Installation of new cutterbar in Prior to PIN HCA0006166 machine may also require new shield 86577097.

1шт.

59

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

60

87602273

REPAIR KIT

Shock Retrofit

1шт.

Contains parts to retrofit two discs.

1шт.
